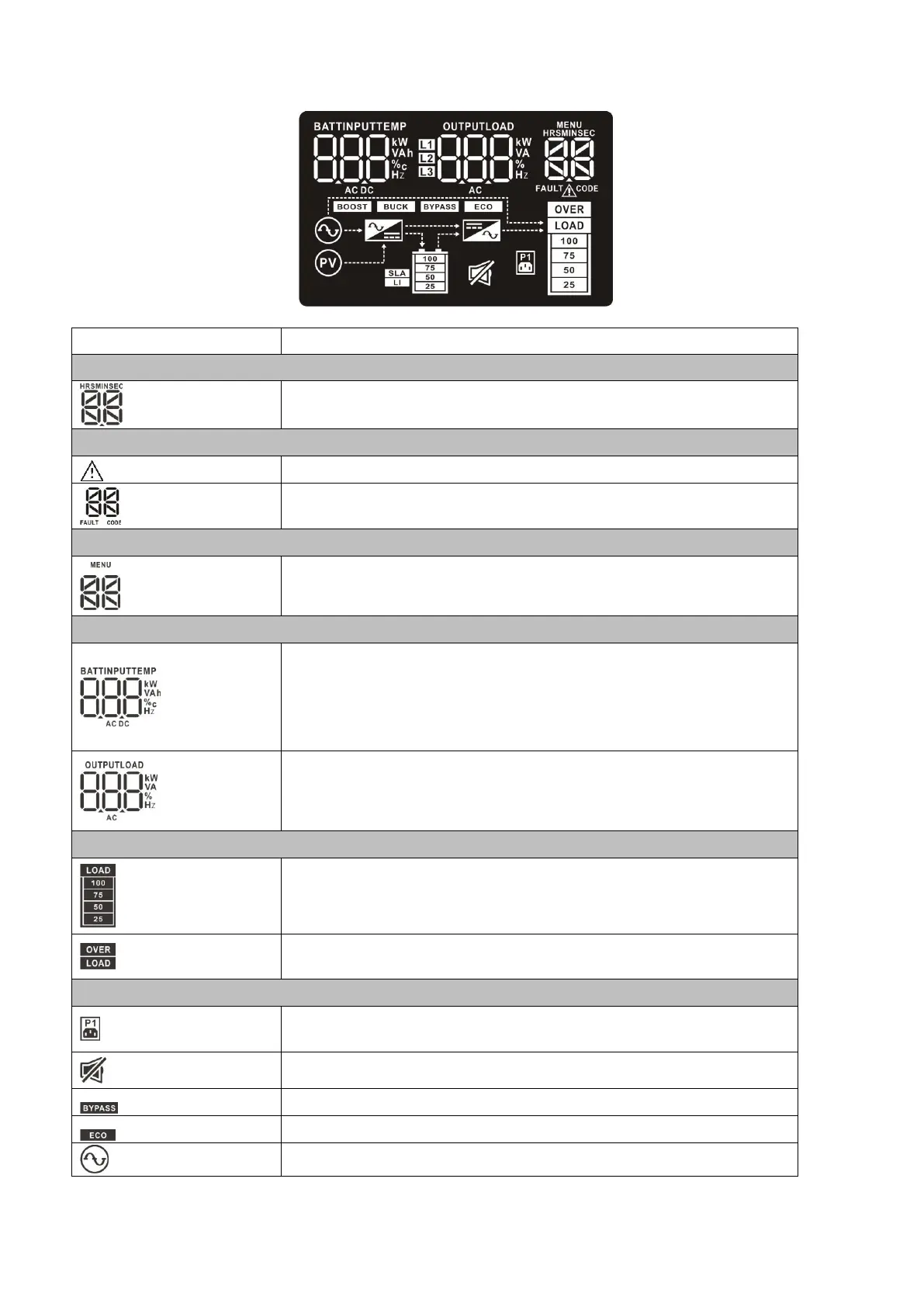

3-2. LCD Panel
Display
Function
Backup time information
Indicates the remaining backup time in numbers.
HRS: hours, MIN: minutes, SEC: seconds
Warning & Fault information
Indicates that a warning and fault occurs.
Indicates the warning and fault codes as listed in detail in
section 3-7 and 3-8.
Setting Operation
Indicates the setting operation, and the setting items are
listed in details in section 3-5.
Battery, Input, Temperature, Output and Load information
Indicates the input voltage, input frequency, input ampere,
battery voltage, battery ampere, battery capacity and
ambient temperature.
k: kilo, W: watt, V: voltage, A: ampere, %: percent, ℃: centigrade degree, Hz:
frequency, AC: alternating current, DC: direct current
Indicate the output voltage, output frequency, output
ampere, load current and load percentage.
k: kilo, W: watt, V: voltage, A: ampere, %: percent, Hz: frequency, AC:
alternating current
Load information
Indicates the load level by 0-24%, 25-49%, 50-74%, and
75-100%.
Indicates overload.
UPS status
Indicates that programmable management outlets are
working.
Indicates the UPS alarm is disabled.
Indicates the UPS is working in bypass mode.
Indicates the UPS powers the output directly from the mains
Indicates the UPS connects to the mains.
