PowerShield Centurion RT Series - Audible Alarm; LCD Display Wordings Index

14
www.powershield.com.au
Indicates the UPS connects to the PV
Indicates the AC to DC circuit is working
Indicates the inverter circuit is working
Battery information
Indicates the Battery level by 0-24%, 25-49%, 50-74%, and
75-100%.
3-3. Audible Alarm
Battery Mode
2 beeps every 30 seconds
Low Battery
Sounding every second
Overload
2 short beeps every 2 seconds
Fault
Continuously sounding
Bypass Mode
Sounding every 10 seconds

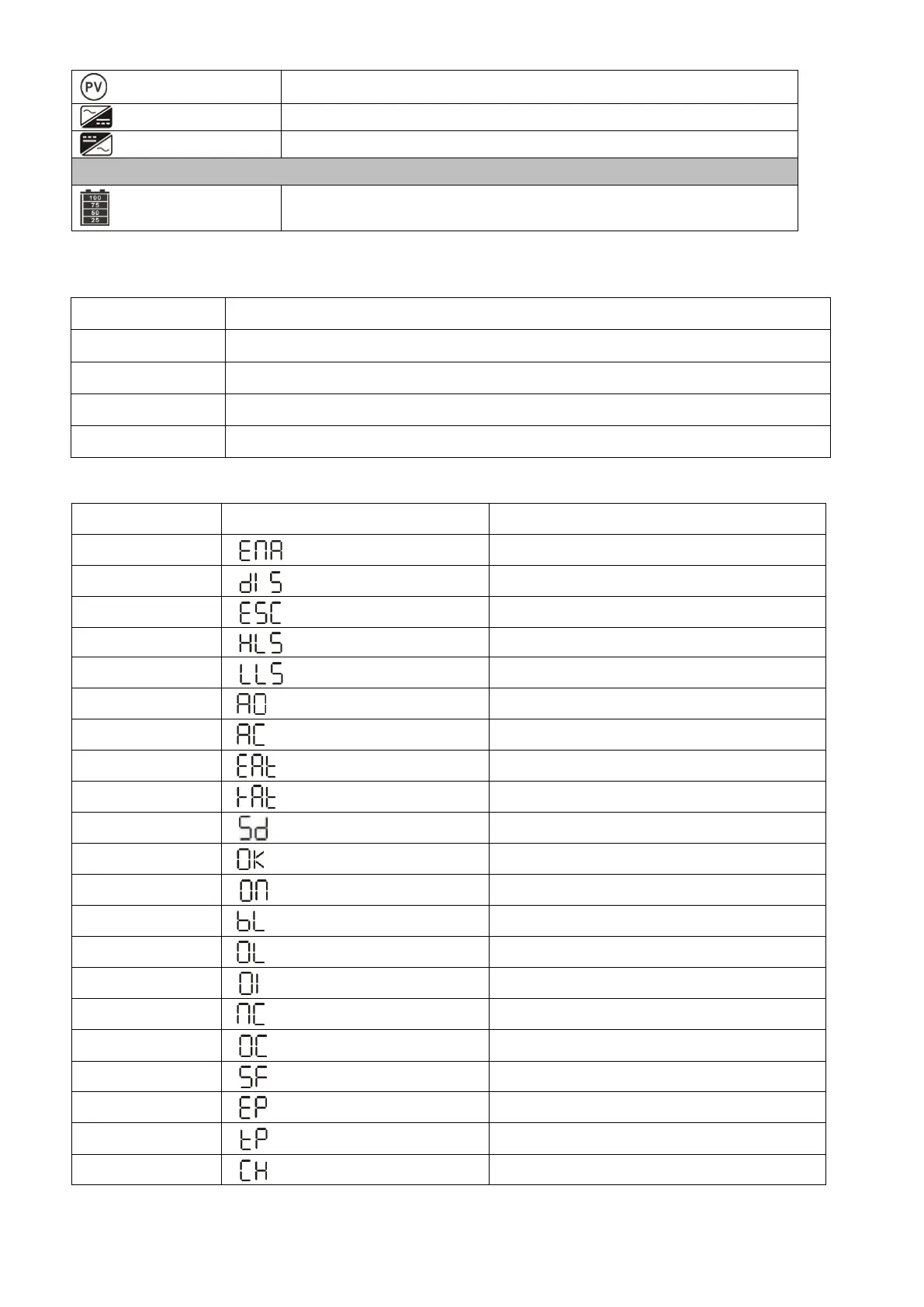

3-4. LCD display wordings index
Abbreviation
Display content
Meaning
ENA
Enable
DIS
Disable
ESC
Escape
HLS
High loss
LLS
Low loss
AO
Active open
AC
Active close
EAT
Estimated autonomy time
RAT
Running autonomy time
SD
Shutdown
OK
OK
ON
ON
BL
Battery Low
OL
Over Load
OI
Over input current
NC
Battery No Connect
OC
Over Charge
SF
Site wiring fault
EP
EPO
TP
Temperature
CH
Charger
