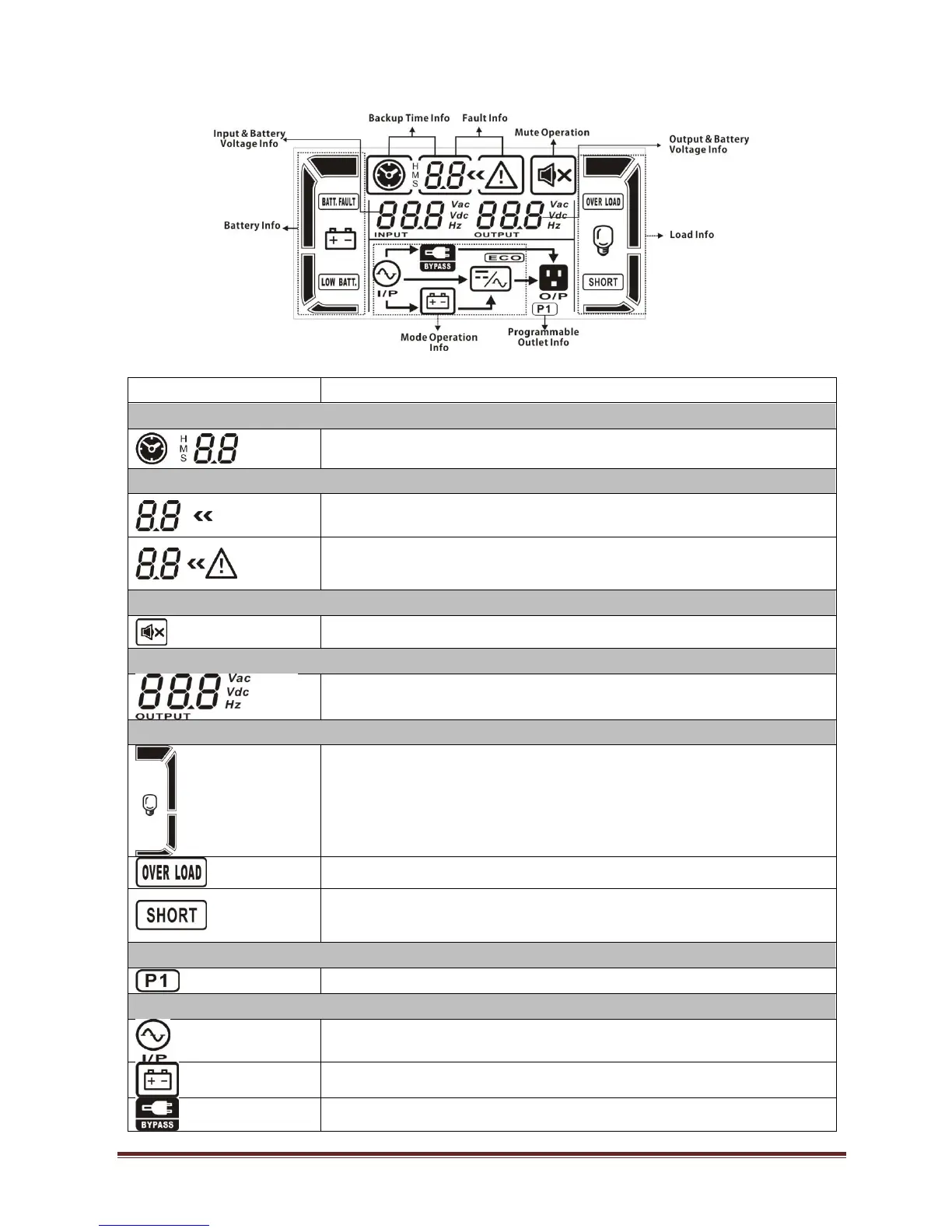

3-2. LCD Panel
Indicates the estimated backup time.
H: hours, M: minute, S: second
Configuration and fault information
Indicates the configuration items, and the configuration items
are listed in details in section 3-5.
Indicates the warning and fault codes, and the codes are listed
in details in section 3-7 and 3-8.
Indicates that the UPS alarm is disabled.
Output & battery voltage information
Indicate the output voltage and output frequency.
Vac: RMS voltage, Vdc: average voltage, Hz: frequency
Indicates the load level by 0-24%, 25-50%, 50-74% and 75-
100%.
Indicates the load or the UPS output is short circuit.
Programmable outlets information
Indicates that programmable management outlets are working.
Mode operation information
Indicates the UPS connects to the mains.
Indicates the battery is working.
Indicates the bypass circuit is working.
To Next Page
