PowerShield PSCE1000 - UPS Setting

www.powershield.com.au 10
ON
ON
EP
EPO
TP
Temperature
CH
Charger
FU
Bypass frequency unstable
EE
EEPROM error
FA
Fan failure
BR
Battery Replacement

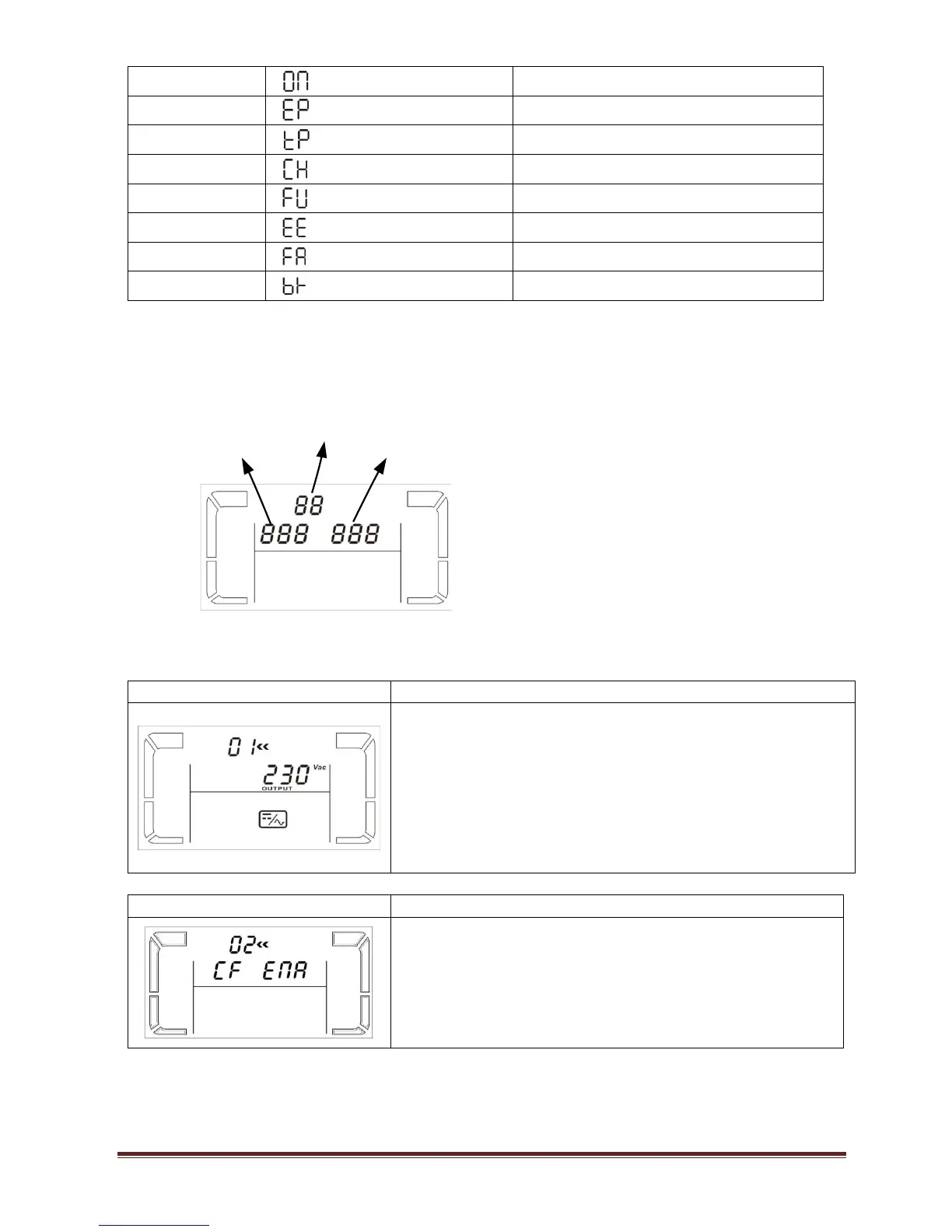

3-5. UPS Setting
Parameter 1
Parameter 3
Parameter 2
There are three parameters to set up the
UPS.
Parameter 1: It’s for program
alternatives. There are 15 programs to
set up. Refer to below table.
Parameter 2 and parameter 3 are the
setting options or values for each
program.
 01: Output voltage setting
Interface
Setting
Parameter 3: Output voltage
You may choose the following output voltage:
200: presents output voltage is 200Vac
208: presents output voltage is 208Vac
220: presents output voltage is 220Vac
230: presents output voltage is 230Vac
240: presents output voltage is 240Vac (Default)
 02: Frequency Converter enable/disable
Interface
Setting
Parameter 2 & 3: Enable or disable converter mode.
You may choose the following two options:
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)
