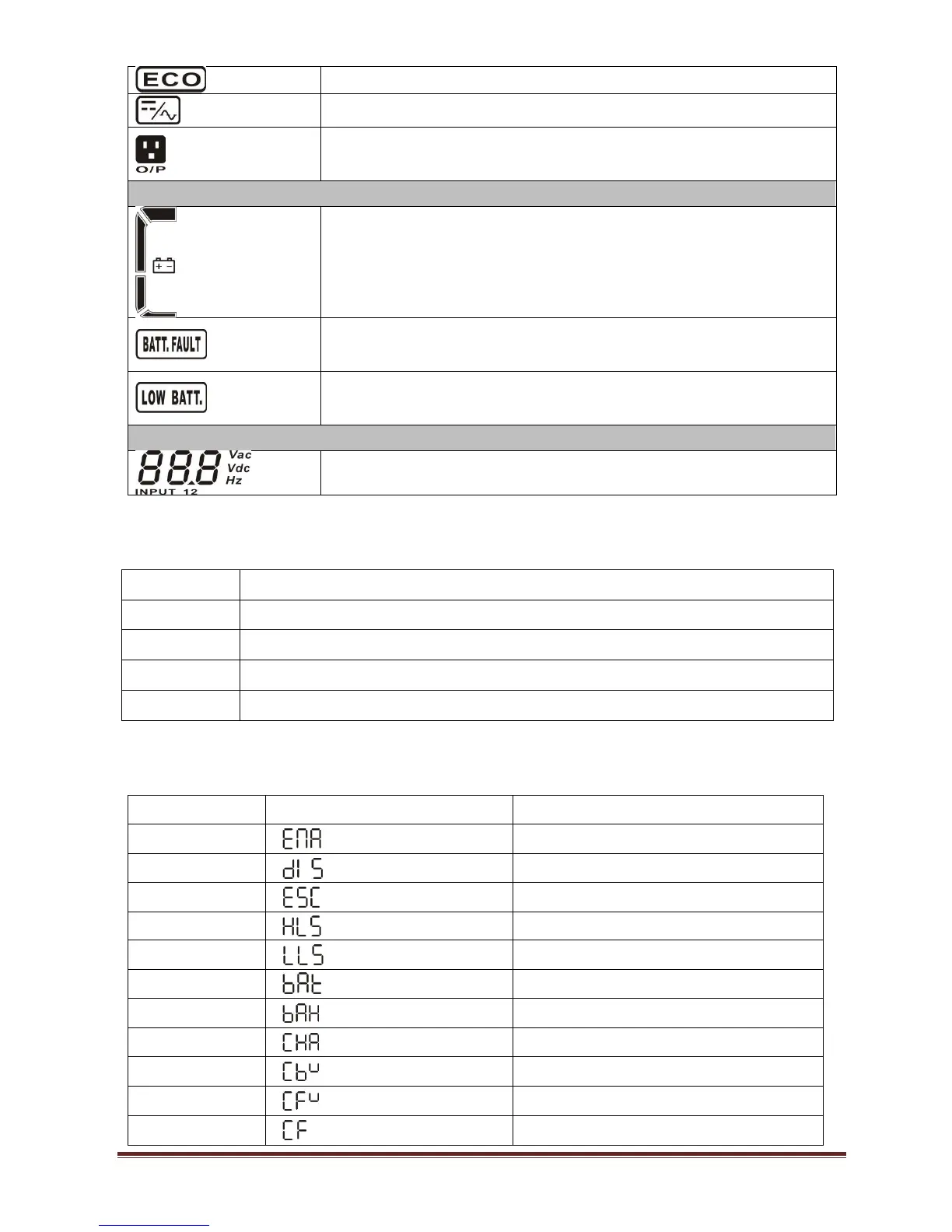

Indicates the ECO mode is enabled.
Indicates the inverter circuit is working.
Indicates the output is working.
Battery information
Indicates the battery level by 0-24%, 25-49%, 50-74%, and
75-100%.
Indicates the battery is fault.
Indicates low battery level and low battery voltage.
Input & battery information
Indicate the input voltage, input frequency and battery voltage.
Vac: RMS voltage, Vdc: average voltage, Hz: frequency
3-3. Audible Alarm
Battery Mode
2 beeps every 30 seconds
Low Battery
Beep every 2 seconds
Overload
Beep every second
Fault
Continuously Beeping
Bypass Mode
Beep every 10 seconds
3-4. LCD display wordings index
Abbreviation
Display content
Meaning
ENA
Enable
DIS
Disable
ESC
Escape
HLS
High loss
LLS
Low loss
BAT
Battery
BAH
Battery AH
CHA
Charger current
CBV
Charger boost voltage
CFV
Charger float voltage
CF
Converter
