HOW TO DEMOUNT SYSTEM 5000
First, remember to demount the connectors with hazardous voltages. By lifting the
bottom lock, the module is detached from the DIN rail as shown in picture 1.
Then, by lifting the upper lock and pulling the front plate simultaneously the PCB
is removed as shown in picture 2.
Switches and jumpers can now be adjusted. By opening the front, the
programming connector is accessible as shown in picture 3.

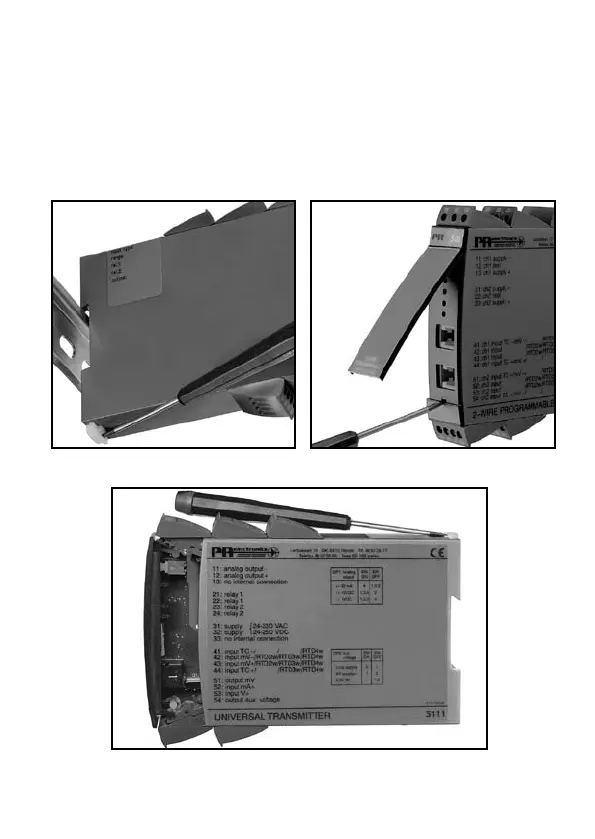

Picture 1: Separation from DIN rail.
Picture 2: Removal of PCB.
Picture 3: Access to programming
connector.
