PR 9113 - IECEx Installation Drawing

9113 - Product Version 9113-004 27
9113QI01
LERBAKKEN 10, 8410 RØNDE DENMARK
Revision date:
2012-07-04
Version Revision:
V4 R0
Prepared by:
PB
Page:
1/3

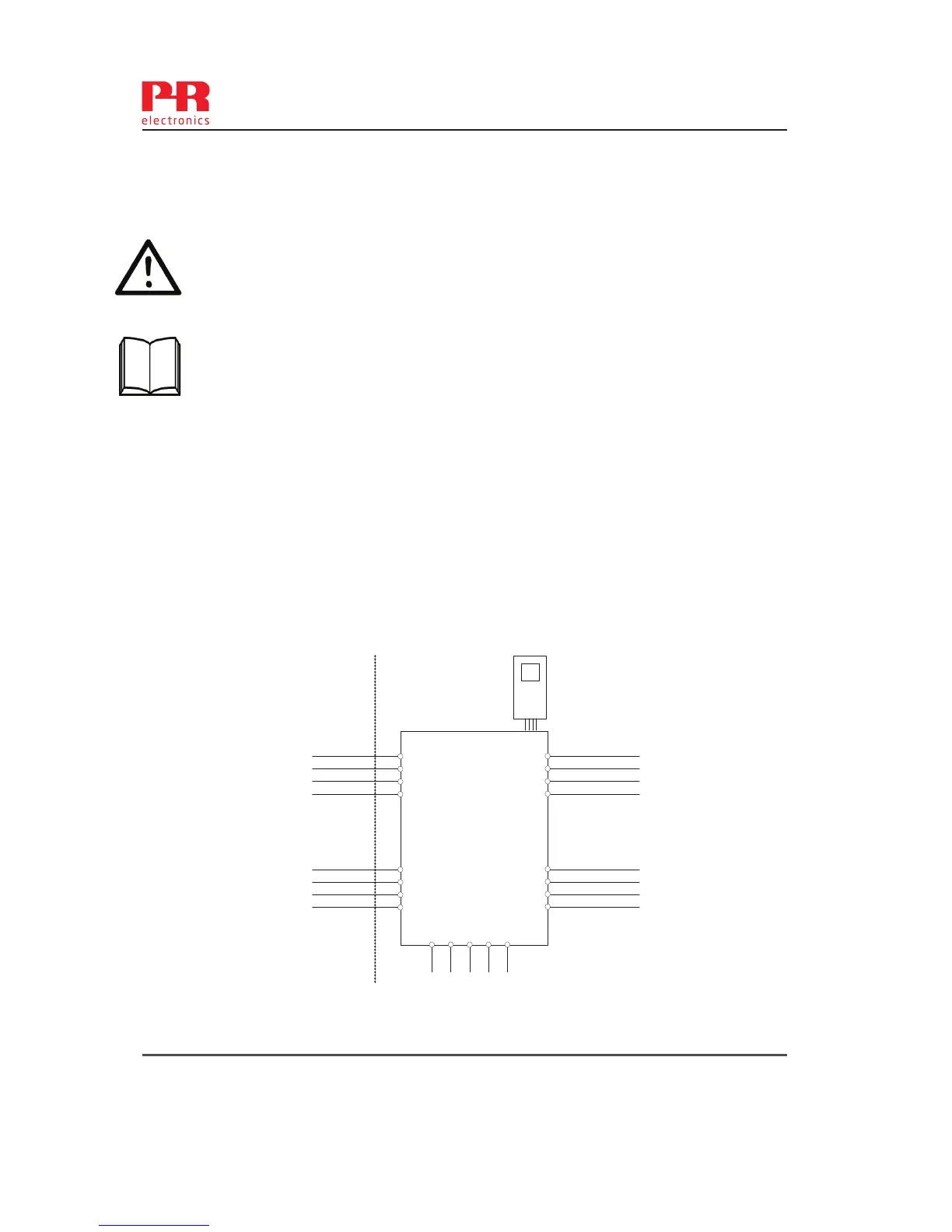

IECEx Installation drawing
9113
For safe installation of 9113B the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws,
directives and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
4501
For Installation in Zone 2 the following must be observed.
The 4501 programming module is to be used solely with PRelectronics modules. It is important
that the module is undamaged and has not been altered or modified in any way. Only 4501
modules free of dust and moisture shall be installed.
IECEx Certificate: ………………………………………………..….KEM 09.0052 X
Marking
Standards IEC60079-15:2005, IEC60079-11:2011, IEC60079-0:2011
IEC60079-26:2006
Hazardous area Non Hazardous area
Zone 0,1,2, 20, 21, 22 or Zone 2
44
43
42
41
54
53
52
51
34
33
32
31
14
13
12
11
9113
4501
91 92 93 94 95
Power
Rail
-20 ≤Ta ≤ +60ºC
(terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal
91,92,93,94,95)
U
m
: 253 V, max 400 Hz
[Ex ia Ga] IIC/IIB/IIA
Ex nA nC IIC T4 Gc
[Ex ia Da] IIIC
[Ex ia Ma] I
