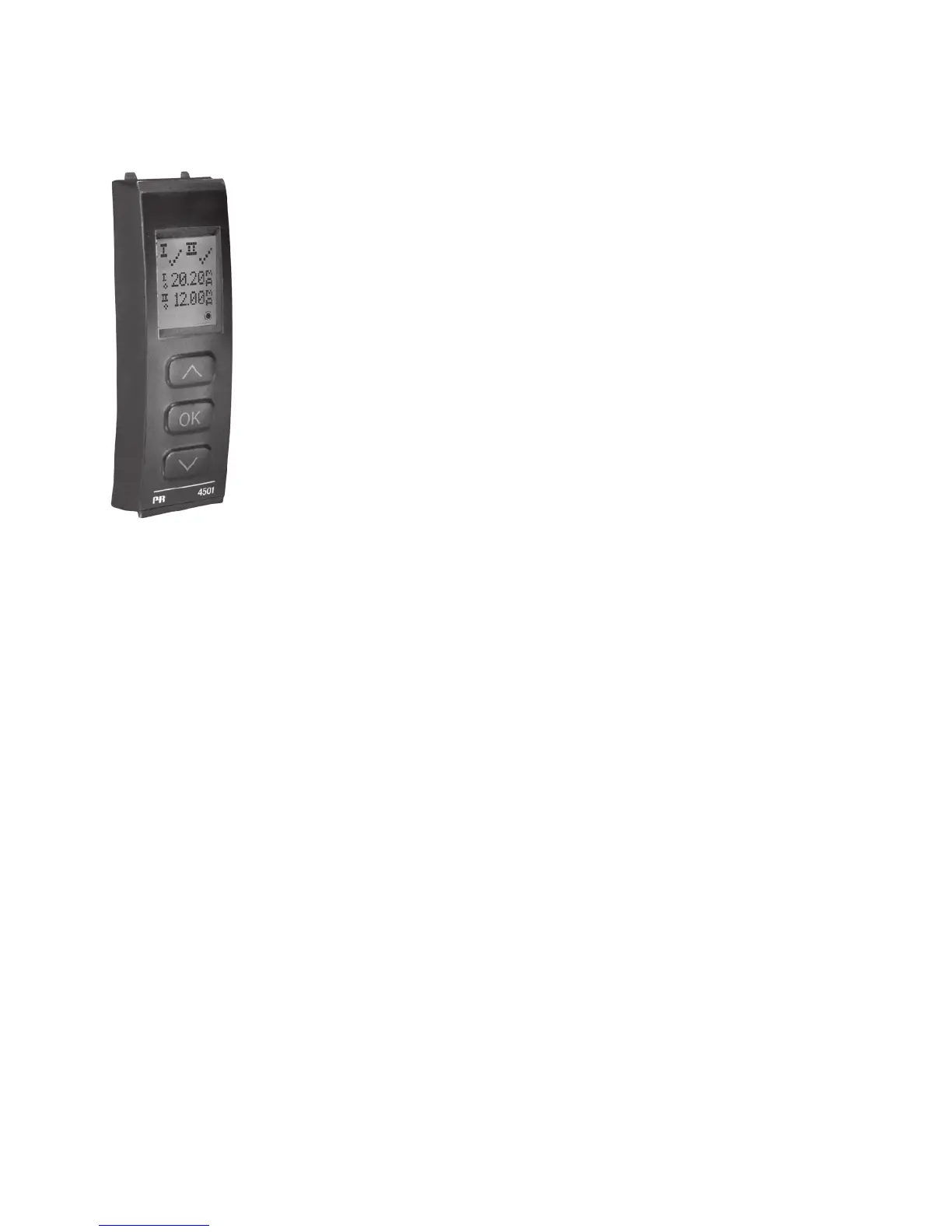

PR 4501 DISPLAY / PROGRAMMING FRONT
Functionality
The simple and easily understandable menu structure and the
explanatory help texts guide you effortless ly and automatically
through the configuration steps, thus making the product very
easy to use. Functions and configuration options are described
in the section ”Configuration / operating the function keys”.
Application
• Communicationsinterfaceformodificationofoperationalparametersin9113.
• Canbemovedfromone9113devicetoanotheranddownloadthe
configuration of the first unit to subsequent units.
• Whenmountedintheprocess,thedisplayshowsprocessvaluesanddevice
status.
Technical characteristics
• LCDdisplaywith4lines;Line1(H=5.57mm)showsinputstatus,line2and3
(H=3.33mm)showanalogueinput/outputvalueorTAGno.andunits,andline
4 shows status for communication and whether the device is SIL-locked. Static
dot=SIL-lockedandflashingdot=notSIL-locked.
• Programmingaccesscanbeblockedbyassigningapassword.Thepassword
is saved in the device in order to ensure a high degree of protection against
unauthorised modifications to the configuration.
