PRECITEC CHRocodile C - List of Deliverables

17
2.6 List of Deliverables
- One operational confocal chromatic unit (see Fig. 2-5),
- One operational optical probe (see Fig. 2-6),
- Power Supply Adapter (100-240VAC to 24V
DC
+/-10%),
- Ethernet cable,
- A CD with DLL and firmware,
- Software user guide,
- Operation Manual,
- Calibration report.

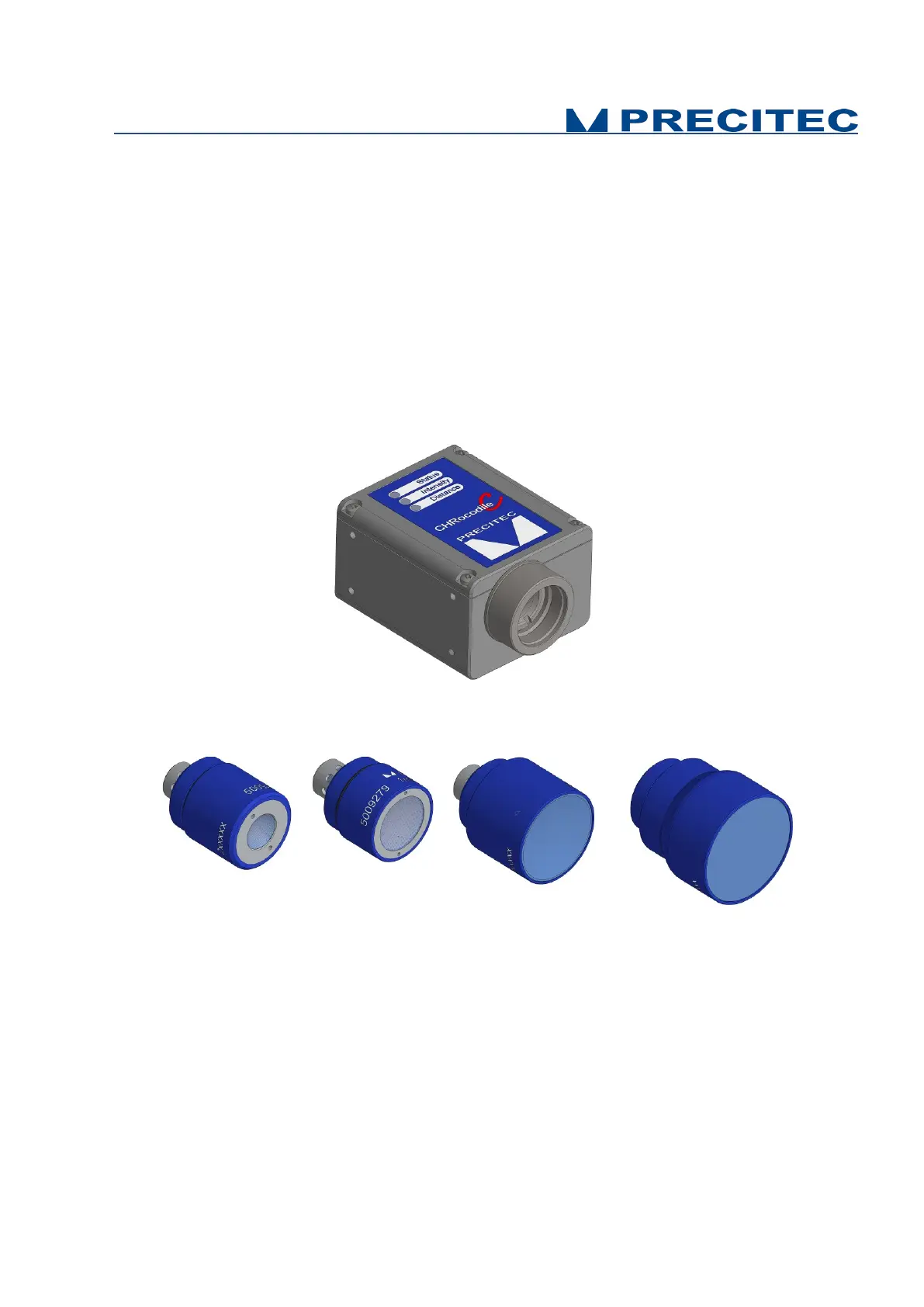

Fig 2-5: CHRocodile C unit 3D view:
Fig 2-6: Optical Head 3D view: a- 0.2mm b- 1mm c- 4mm d- 10mm
