4.3 Mechanical interfacing
After completing the operational startup, i.e. connecting with the power supply, proceed with
initializing, then communication is ready and mechanical interfacing should be done.
Mechanical interfacing consists in:
- Connecting the optical probe, which suits to your application, to the CHRocodile C unit. The
optical probe is simply screwed on the CHRocodile C unit (Cf. Figure 4.2).

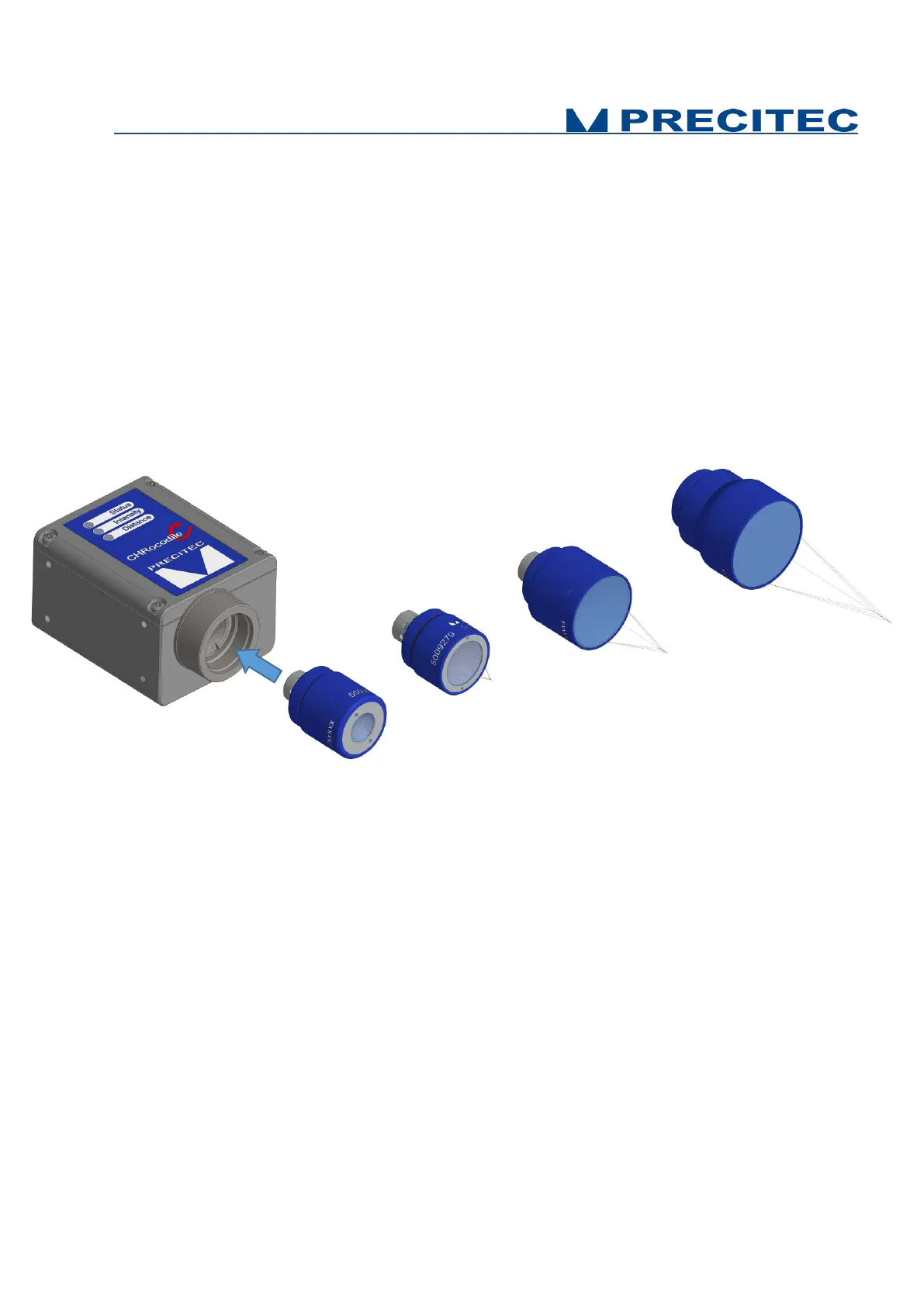

Fig 4-2: Interchangeable optical heads
- And, fixing the CHRocodile C on your system using the interface threaded M3 holes located
on the soleplates and on the lateral surfaces of the CHRocodile C unit or using the ring
surrounding the optical probe (Cf. Fig 4-3).
Screw optical head
on sensor unit
