3. CHRocodile C unit mechanical interface plans

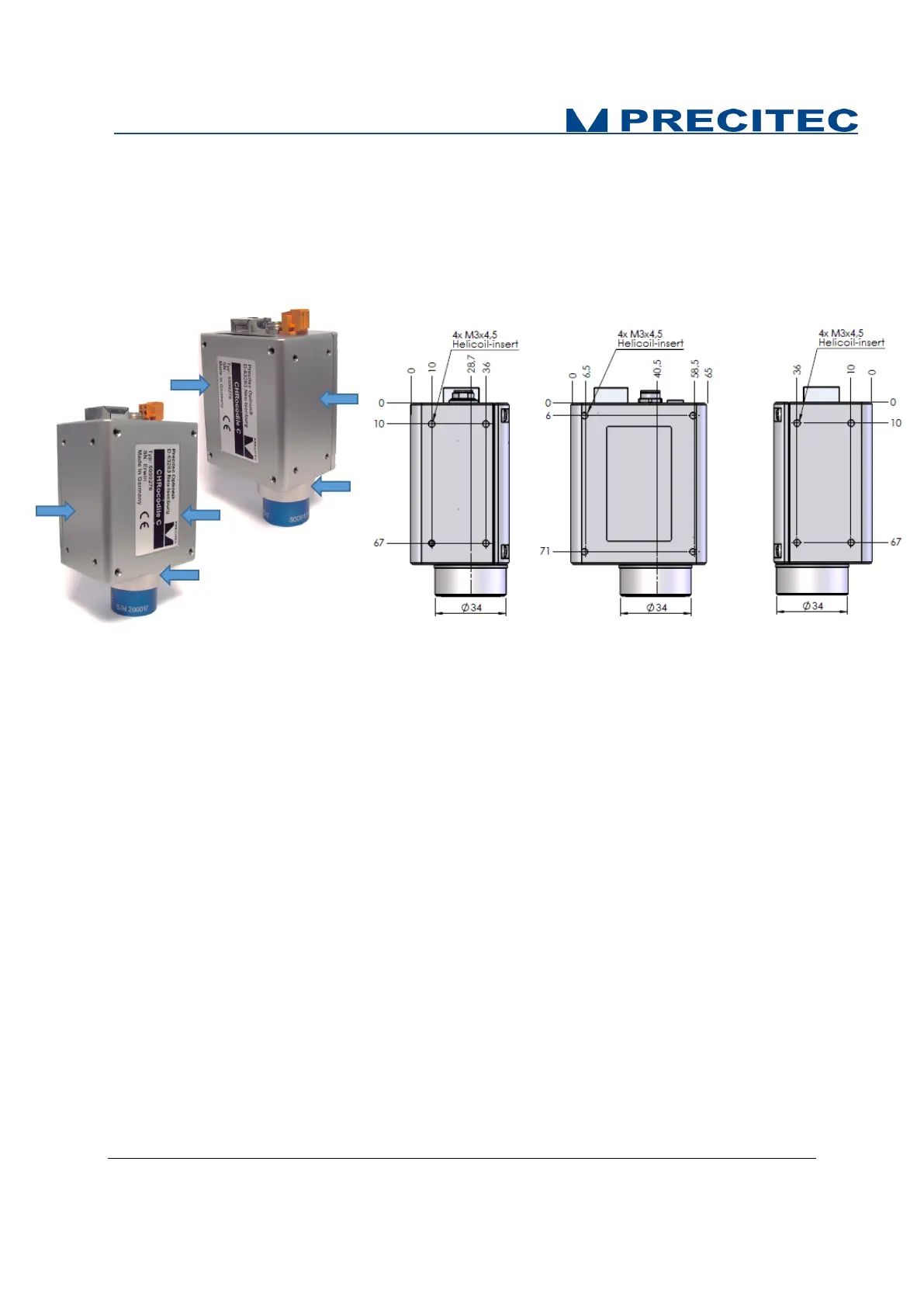

Fig A2-3: CHRocodile C unit mechanical interfaces
Three surfaces are designed to fix the CHRocodile C unit on customer system. On these 3 surfaces, 4
M3x4.5 threaded holes are available. Positions of threaded holes are specified on the Figure A2-3.
It is also possible to fix the CHRocodile C unit on the front ring of 34mm diameter.
Consequently several mechanical interfaces are available on this sensor in order to ease the
integration on customers / integrators systems.
