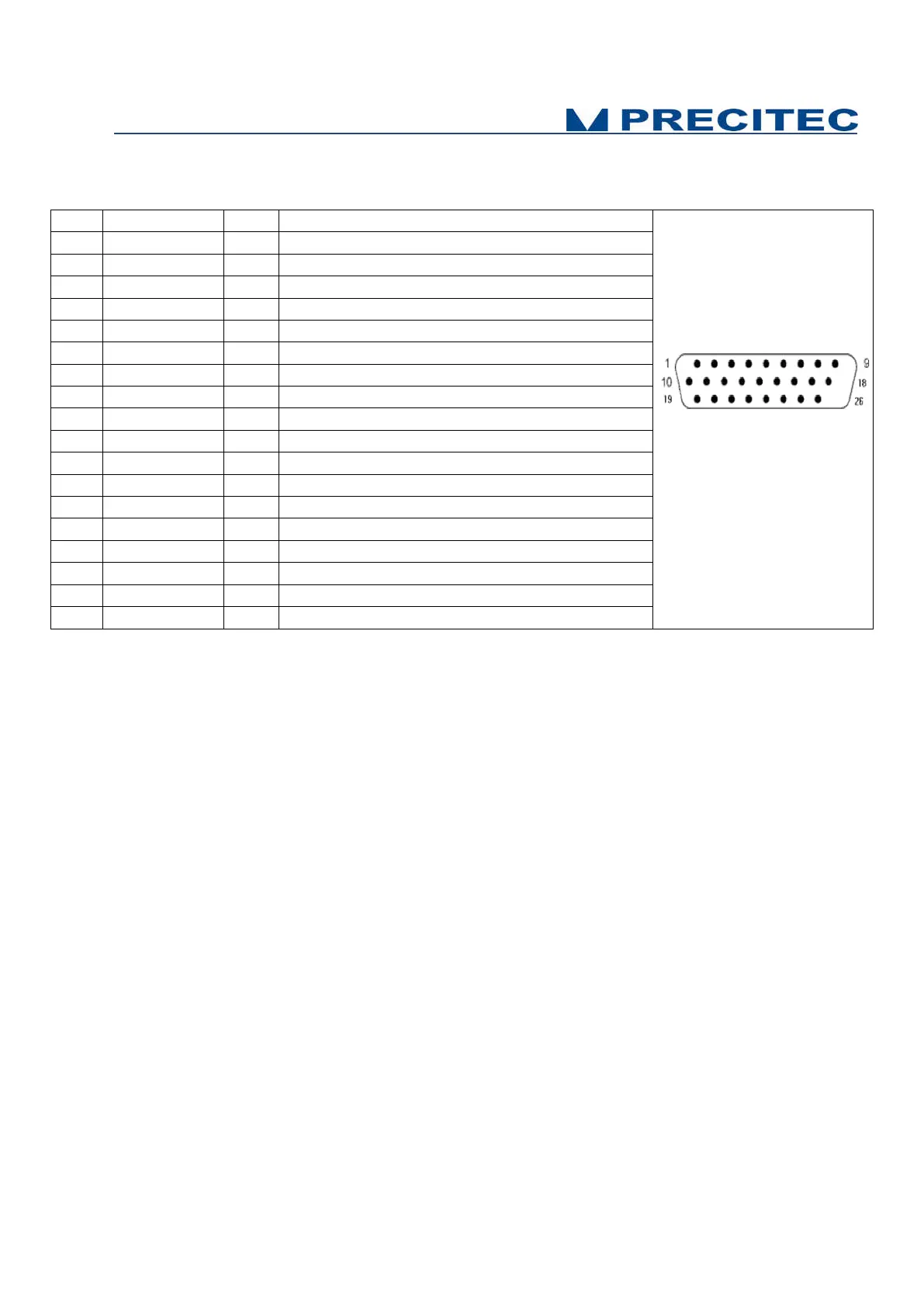

Table 2.2: Encoder interface (PIN-Configuration)
2.6.6 Trigger Input/Output / RS422 serial communication
The Trigger output use a Sub-D 15 female connector. This connector is used for trigger Input / Output
and for RS422 serial communication (Cf. Table 2-3 and Table 2-4).
The trigger options make the lighting cycle externally controllable and the synchronization between
e.g. a scanning system cycle and the CHRocodile CLS measurement rate. This means that external
triggering is possible for every measurement up to the full measurement rate of 2000Hz.
The interface contains the connection points for the synchronization and RS422 serial communication.
The serial RS422 is interfaced on the Sub-D15 female connector. Serial communication are mostly
used for sending command as a hyper-terminal. As the number of channel is high with a huge amount
of data, serial communication port cannot support data transfer.
8 B1+
I Differential encoder input 120 Ohm terminated
9 GND
P ground
10
A2-
I Differential encoder input 120 Ohm terminated
11 A2+
I Differential encoder input 120 Ohm terminated
12 B2-
I Differential encoder input 120 Ohm terminated
13 B2+
I Differential encoder input 120 Ohm terminated
14 GND
P ground
15 NC
- Not connected
16 A3-
I Differential encoder input with switchable 120 Ohm
17
A3+
I Differential encoder input with switchable 120 Ohm
18
B3-
I Differential encoder input with switchable 120 Ohm
19
B3+
I Differential encoder input with switchable 120 Ohm
20 Sw0t02
- Low = termination ON, NC or 5V = termination OFF
21 +5V / 120mA
P,O 5V /120mA supply for external encoder
22 Sw3t04
I Low = termination ON, NC or 5V = termination OFF
23 A4-
I Differential encoder input with switchable 120 Ohm
24
A4+
I Differential encoder input with switchable 120 Ohm
25
B4-
I Differential encoder input with switchable 120 Ohm
26
B4+
I Differential encoder input with switchable 120 Ohm
