24 Assembling and Maintaining AMT 800-Series Adaptive Motion Trainers
11. Remove the two #10 x ³⁄₄-inch Phillips-head screws
securing the upper back corner of the inner plastic
molding to the end of the right side arm.

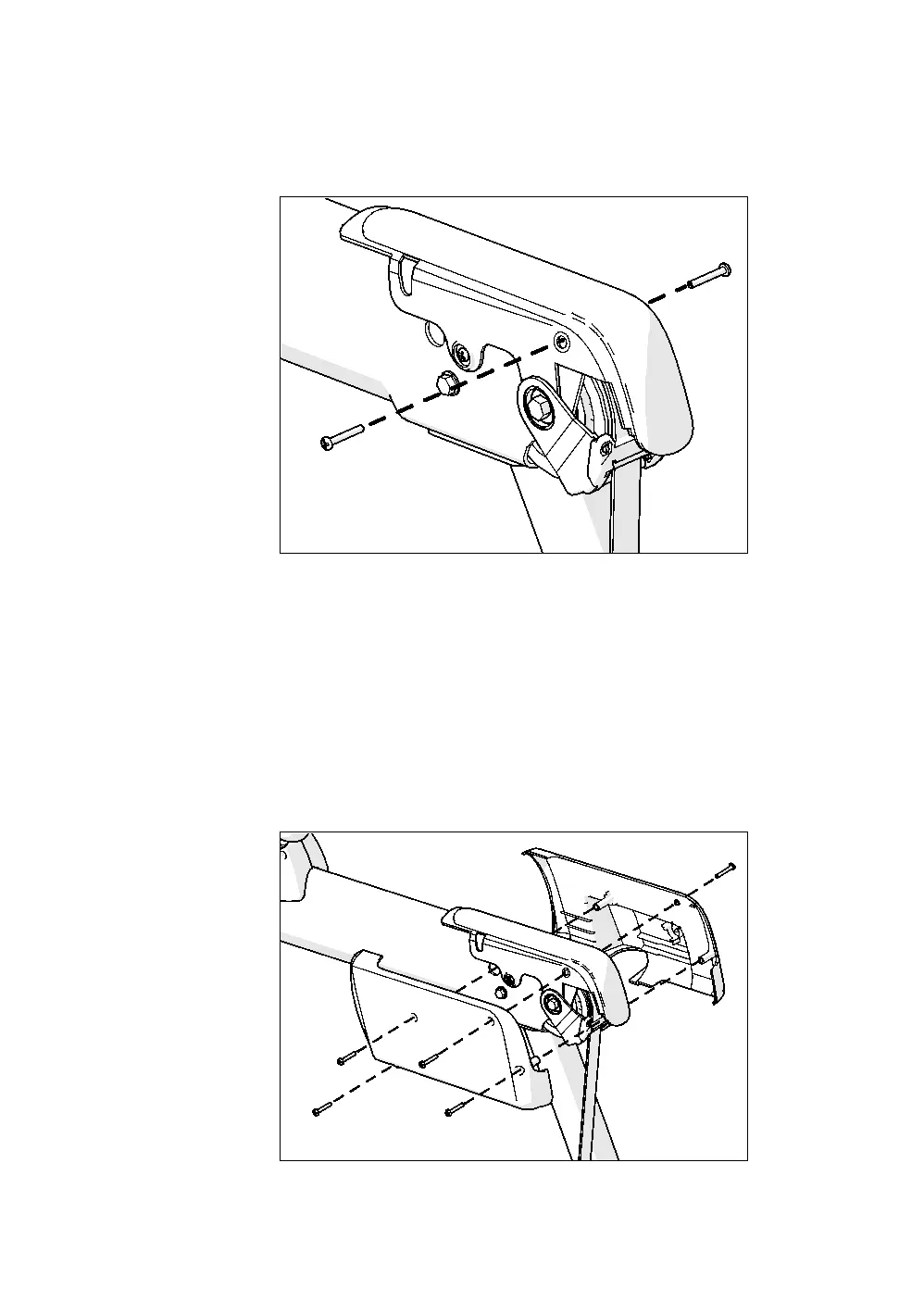

Figure 7: Removal of screws from inner plastic molding
12. Fit the right-hand inner and outer side arm covers to the
right side arm. Insert three #10 x 1¹₄-inch self-tapping
screws and the two #10 x ³₄-inch screws you removed in
the previous step, then tighten all of the screws
completely using a #2 Phillips screwdriver.
Note: Tighten the screws to between 8 and 12
inch-pounds. Alternatively, tighten the screws until the
two side arm covers are in full contact, then turn the
screws an additional quarter turn.
Figure 8: Side arm cover attachment
