Adding the Side Arm Supports
In the next procedure you will need the following pieces of
hardware:
 Two side arm supports
 Two inner side arm covers
 Two outer side arm covers
 Six #10 x 1¹₄-inch self-tapping screws
 Six ⁵₁₆-inch x 3¹₂-inch hex head bolts
 Six ⁵₁₆-inch nylon lock nuts
 Six ⁵₁₆-inch flat washers
 Four ⁵₁₆-inch x 1-inch hex head machine screws
Important: The side arm supports are shipped with foam blocks
inserted in one end. These blocks are provided to prevent fasteners
from falling into the supports. Do not remove the foam blocks or
push them down into the supports.
To add the side arm supports:
1. Place the upper end of the right-hand support against the
right-hand side arm.
2. Insert two ⁵₁₆-inch x 1-inch hex head machine screws
(with washers attached) into the two holes underneath
the side arm support bracket and tighten partially.

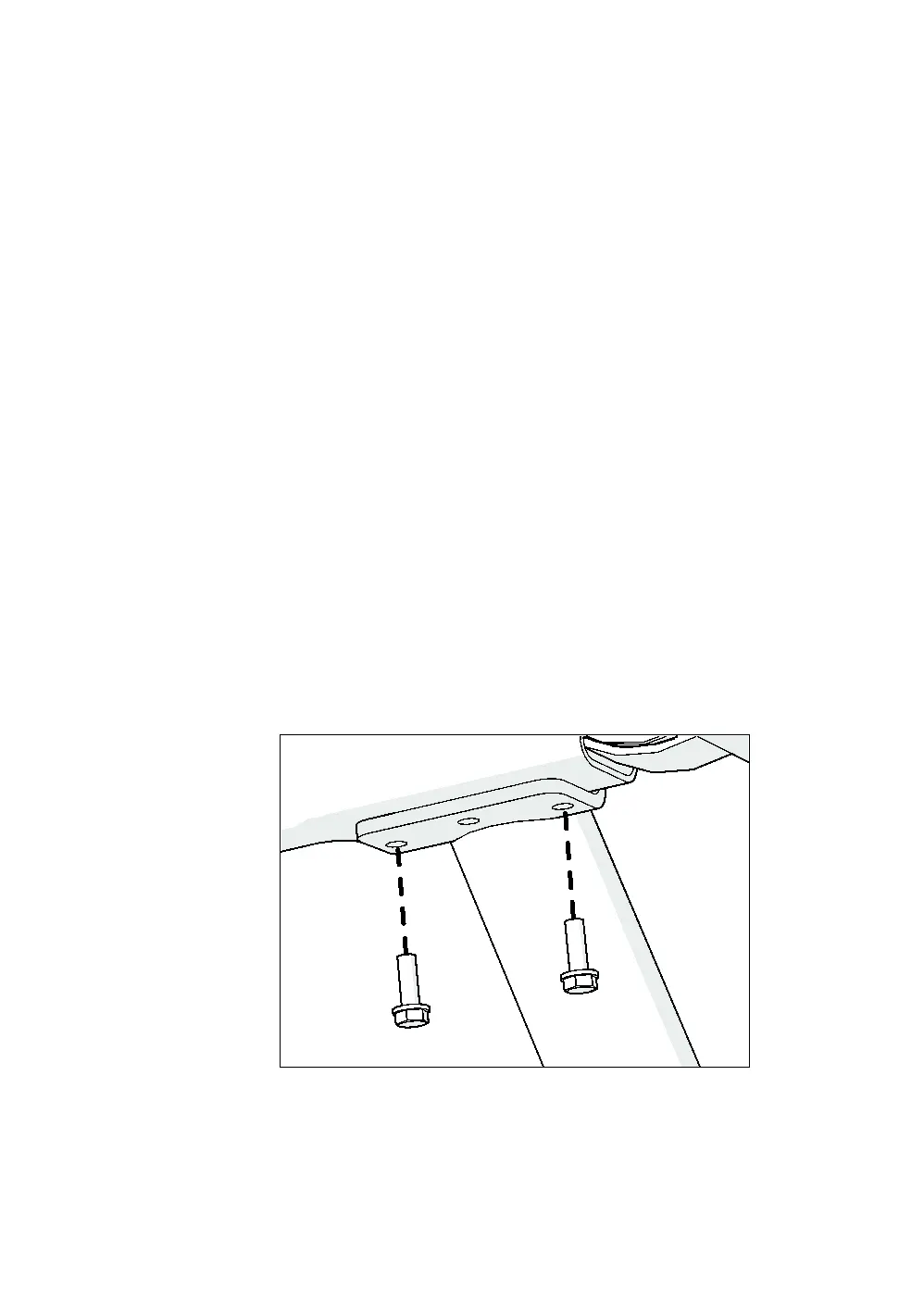

Figure 2: Machine screw attachment to install side arm
support
