Installing the Console 51
Connecting the Power Cable
Route the power cable through the cutaway opening at the
upper left corner of the back plate. In the nearby opening
within the steel console framework, locate the power input
connector on the splitter power cable and connect it to the
power cable.

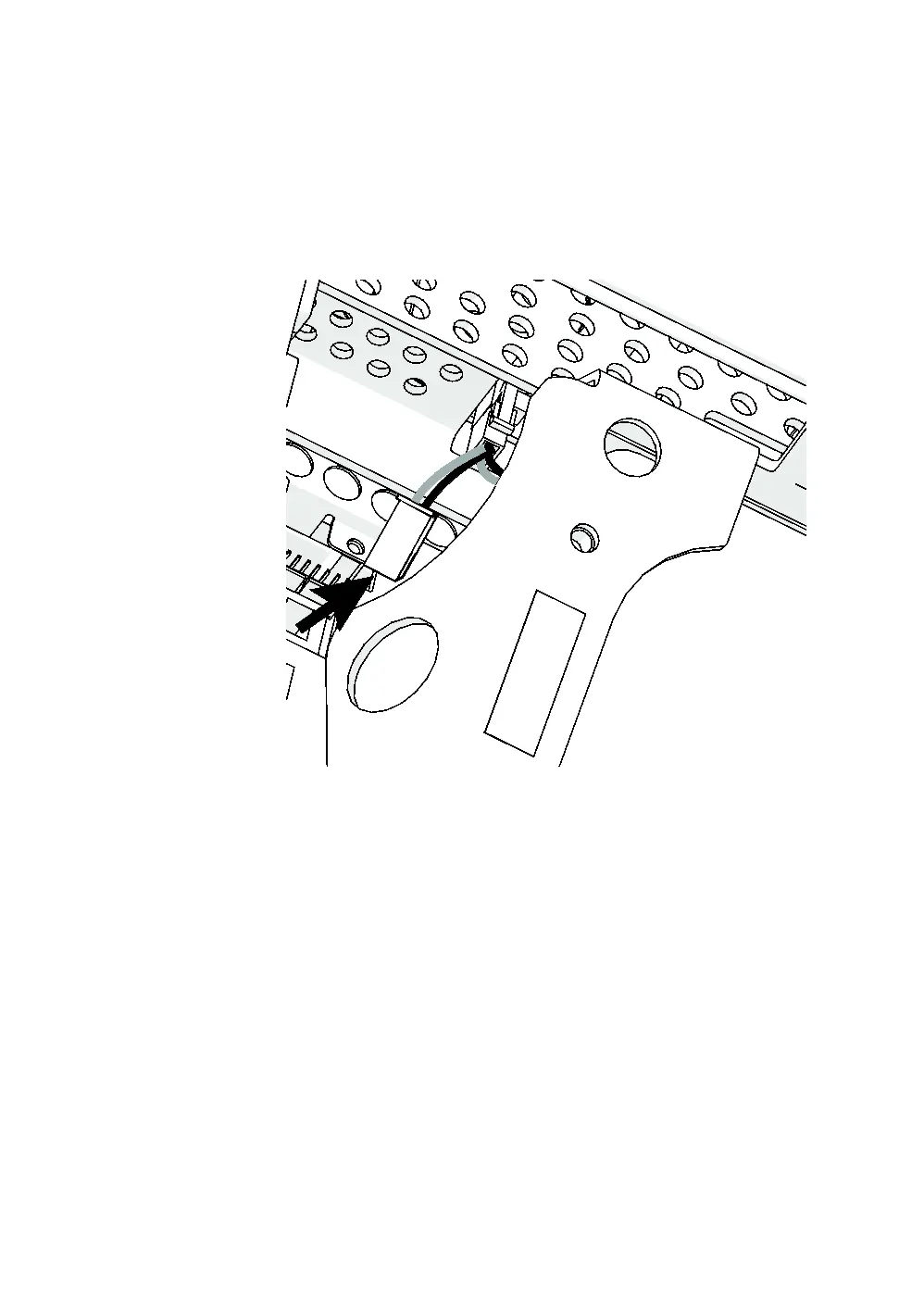

Figure 31: Connect power cable
