Diagram 2

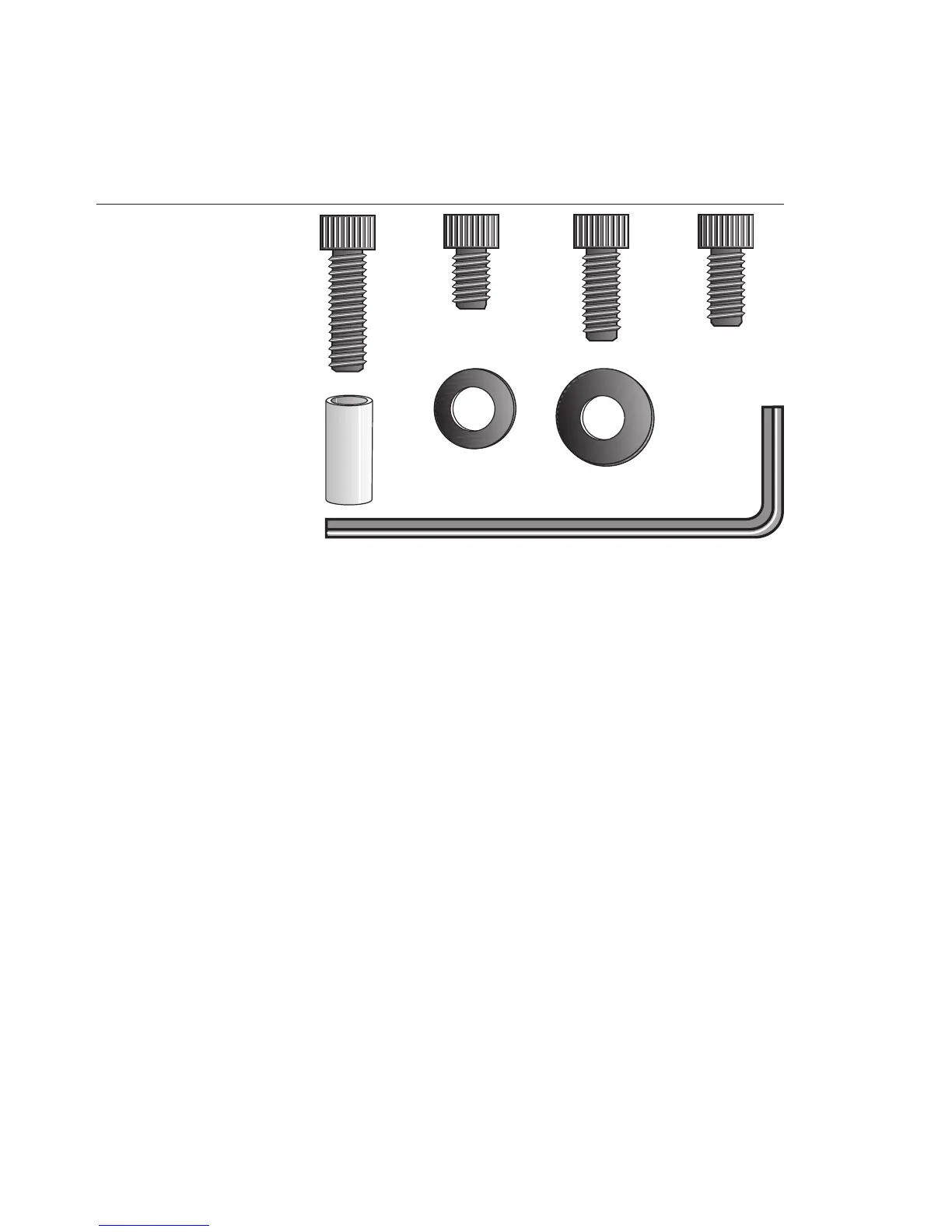

Hardware kit.
AC
D
B
E
F
G
Carefully unpack the pieces of the treadmill and lay them on the floor near
the location where you plan to use the treadmill.
HARDWARE KIT
After unpacking the treadmill, open the hardware kit (refer to Diagram 2) and
make sure that you have the following items:
❑ (A) four 2-inch long socket head screws — mount upright supports to base
❑ (B) four barrel spacers — place on 2-inch screws
❑ (C) ten ¾-inch long socket head screws
❑ (D) sixteen flat washers
❑ (E) two 1¼-inch socket head screws — handrail clamp assembly
❑ (F) four large diameter washers — place on handrail end cap screws
❑ (G) four 1-inch socket head screws — handrail mounting bracket
❑ (H) ¼-inch hex key — 3 inches by 10 inches
If any items are missing, refer to
Obtaining Service
on page 7.
Note: After assembling the treadmill, you will have four ¾-inch long socket head
screws (C) and four flat washers (D) remaining. You can discard them if you wish.
Also, be sure to store the hex key in a secure place. It is used for specific main-
tenance procedures that are described in this manual.
ACQUIRE ADDITIONAL TOOLS
Obtain the following tools
before
assembling the treadmill.
❑ Wire cutter ❑ Bubble level
❑ ½-inch box end wrench ❑ Medium weight string
(or crescent wrench)
H
