CAUTION: Do not lift the rear end of the treadmill by grasping the rear roller
or the end cap. The running belt can move and the end caps can break off
which may cause injury to you or to the unit.
3. Move the treadmill. Diagram 3. To avoid injury to yourself or damage to the unit,
ask for help in placing the treadmill where you plan to use it. Diagram 3 illustrates
how to properly lift the rear end so that you can roll it on its front wheels.

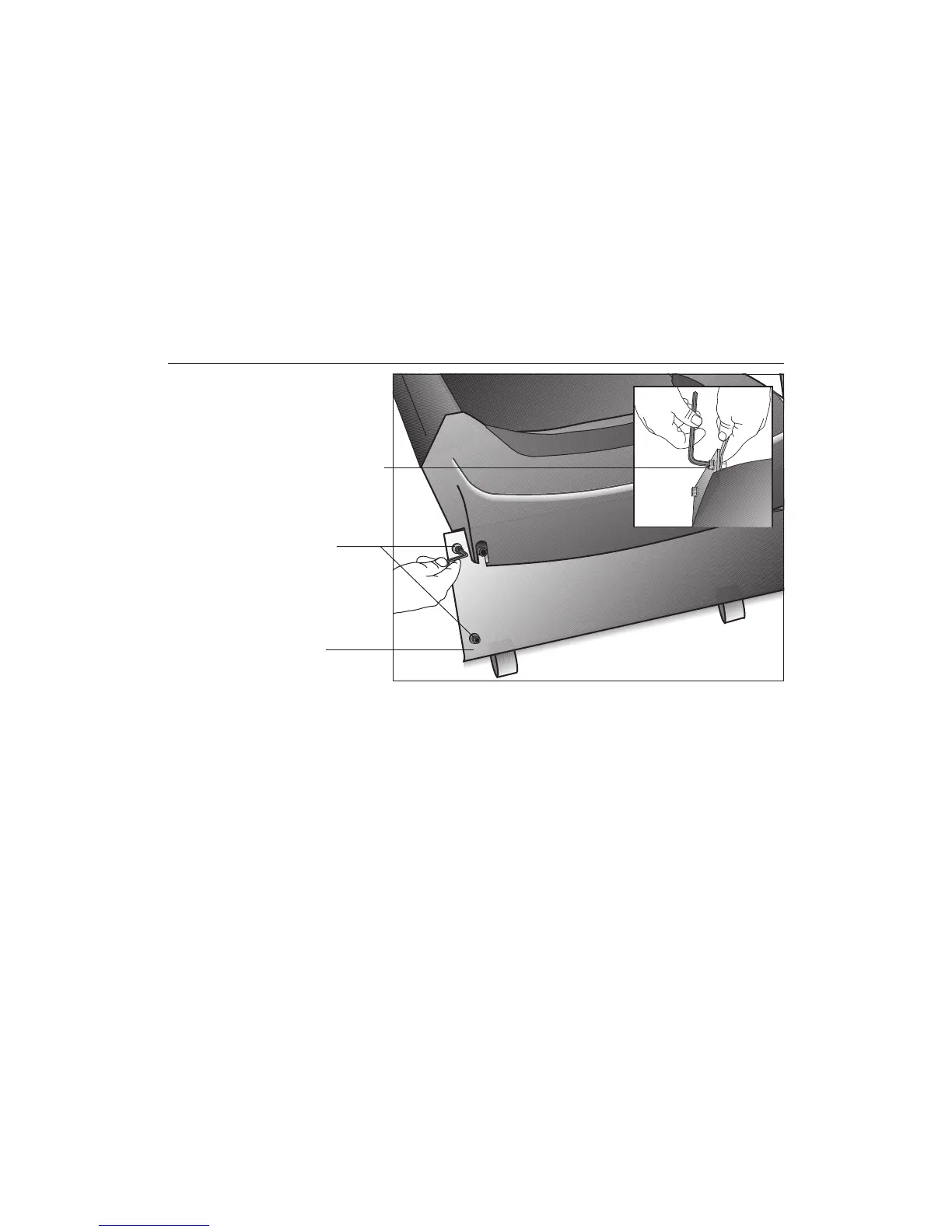

Diagram 4
Remove the shipping
fasteners from the
front panel.
Front panel
The shipping
fasteners are found
on the right and left
sides of the front
panel.
Loosen the fasteners
with a hex key while
holding the nut with
a crescent or box
end wrench.
4. Remove the shipping fasteners from the front panel. Diagram 4. With the
supplied hex key and a ½-inch box end wrench, loosen and remove the 4
bolts, washers and nuts on the front panel. These fasteners are used during
shipping to hold the front plate in place. Discard the fasteners.
5. Remove any tape or wire ties securing the display cable to the side of
the unit.
