page 17
COMMERCIAL PRODUCTS DIVISION
12. Install fasteners in the handrail clamp. Diagram 11. Return to the center
handrail clamp and place a large washer (F) onto each of two screws (E).
Thread the screws through the handrail clamp. Finger tighten.
CAUTION: Do not overtighten the screws or you may inadvertently
cause stress cracks.

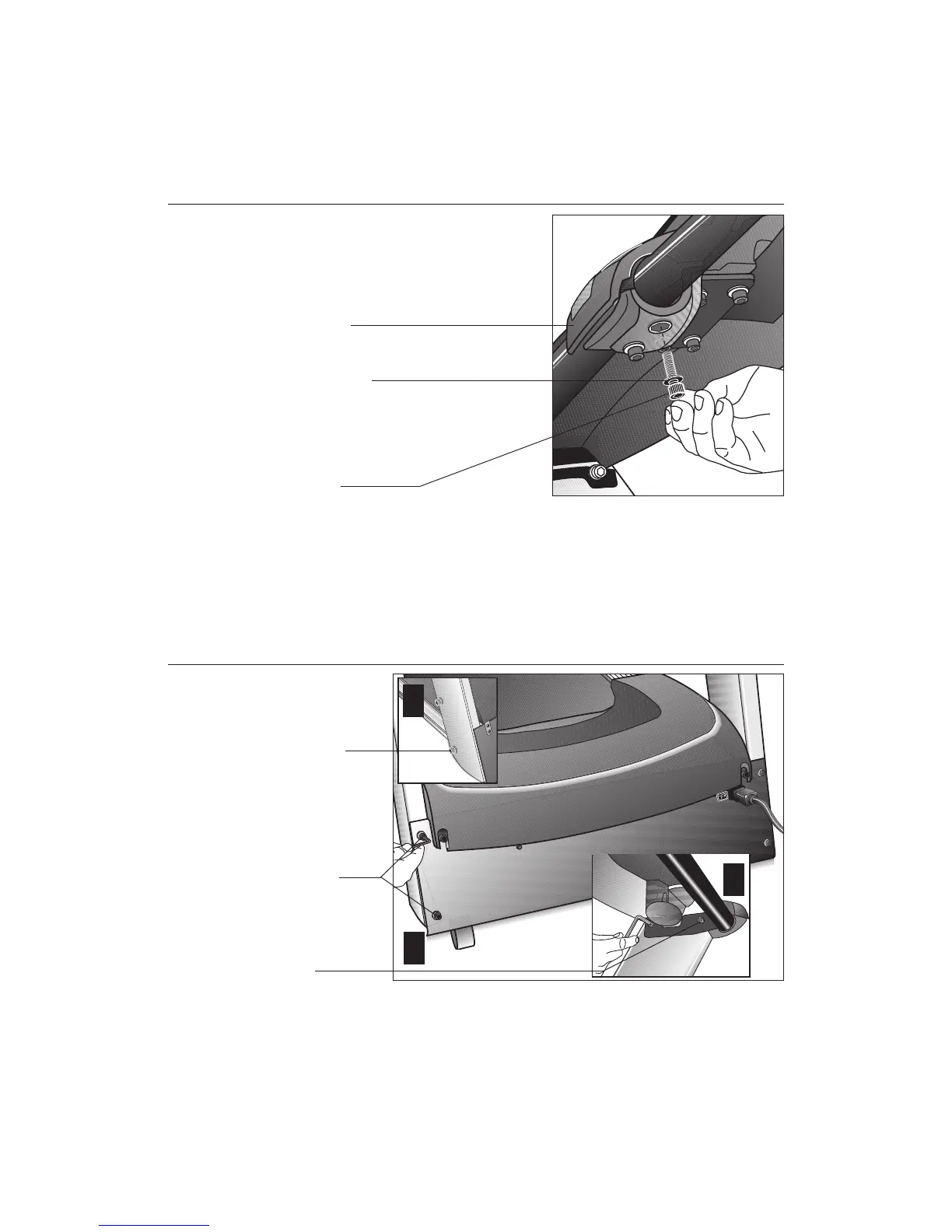

Diagram 12
Secure the fasteners.
First: Alternately
tighten four front
panel screws.
Third: Alternately
tighten the four
screws that secure
the console to the
uprights.
Second: Alternately
tighten four side
upright screws.
1
2
3
13. Tighten all mounting screws with the hex key (H) provided. Diagram 12.
Start at the front of the treadmill with the four screws that attach the upright
supports to the front panel. Tightening these screws first helps pull the rest
of the treadmill’s parts into alignment. Then, proceed with tightening the four
screws (A) that secure the upright supports and the four display console
assembly screws (C).
Important: For proper alignment, it is critical that the fasteners are
tightened in the order shown in Diagrams 12 and 13.
Diagram 11
Secure the upper handrail clamp.
Tighten the screws,
but leave room for
adjustments.
Washer (F) with
1¼-inch screw (E)
Handrail clamp
To Next Page
