C846i/C842i Upright Cycle Assembly Guide 3
Assembly Steps

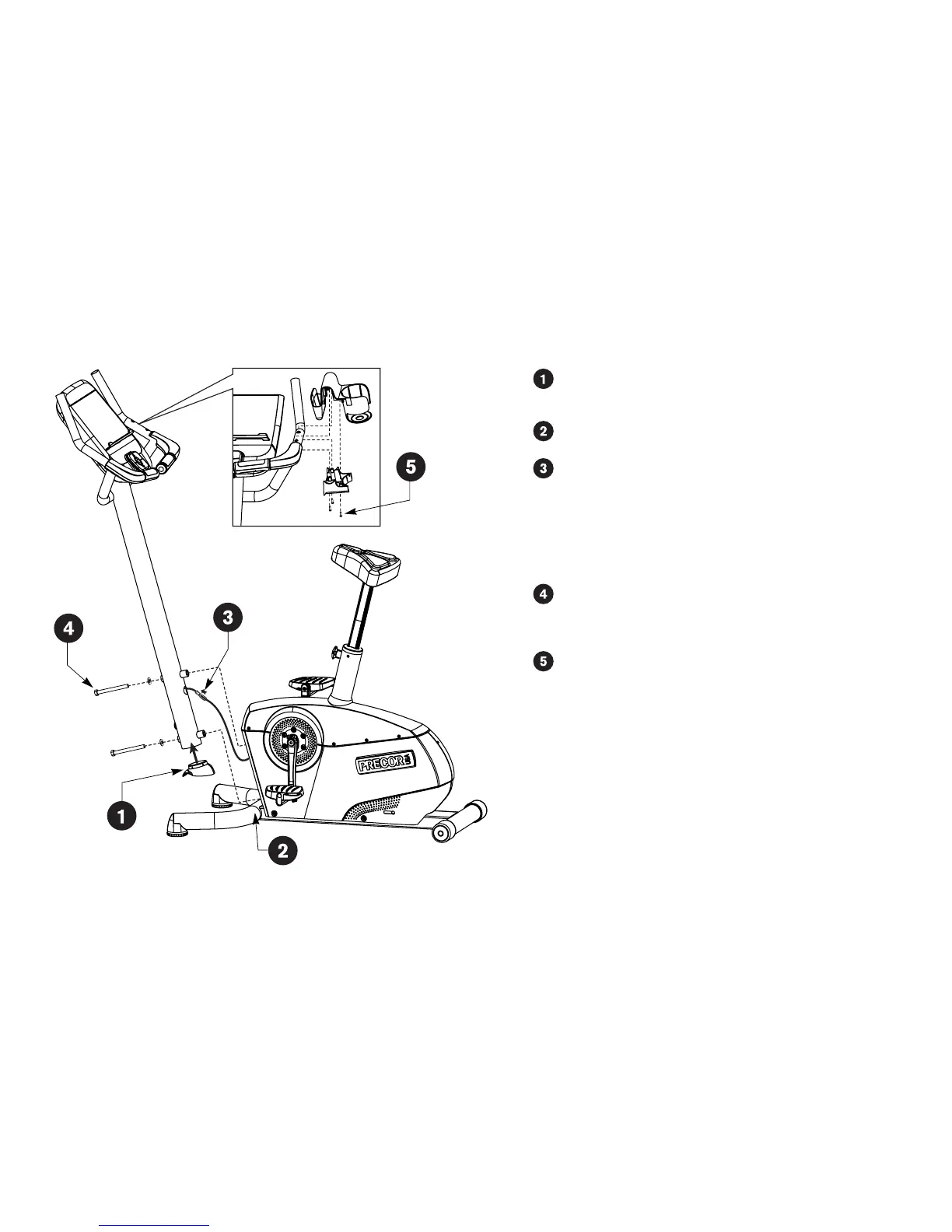

Position the rubber bib (E) so the flared side faces the floor (as
shown in the illustration) and slide it into the base of the upright
support.
Place the upright support on the base crossbar so that the lip of
the rubber bib rests on the crossbar and is parallel to the floor.
Have your assistant hold the upright support while you connect the
cable. Place excess cable inside the base assembly.
Important: Do not stretch, crimp, or damage the cable. Any cable
damaged by improper installation will not be covered by the
Precor Limited Warranty.
CAUTION: Before tightening the screws, make sure the
cable is not in danger of being crimped or pinched.
Secure the upright support to the base assembly using two hex
head cap screws (A) and two washers (B). Alternately tighten each
screw using a ¾-inch box-end or crescent wrench. Check the
upright support to make sure it is securely fastened.
Position the water bottle holder as shown and attach it to the right
handlebar. Secure the holder using three Phillips-head screws (D)
and a Phillips-head screwdriver.
To Next Page
