5. Using the same open-end wrench, turn the positioning bolt to the left or
the right to move the adjustable foot to the appropriate level, as shown in
the following figure.
If you want to move the adjustable foot ... Then turn the bolt ...
Upward To the right
Downward To the left

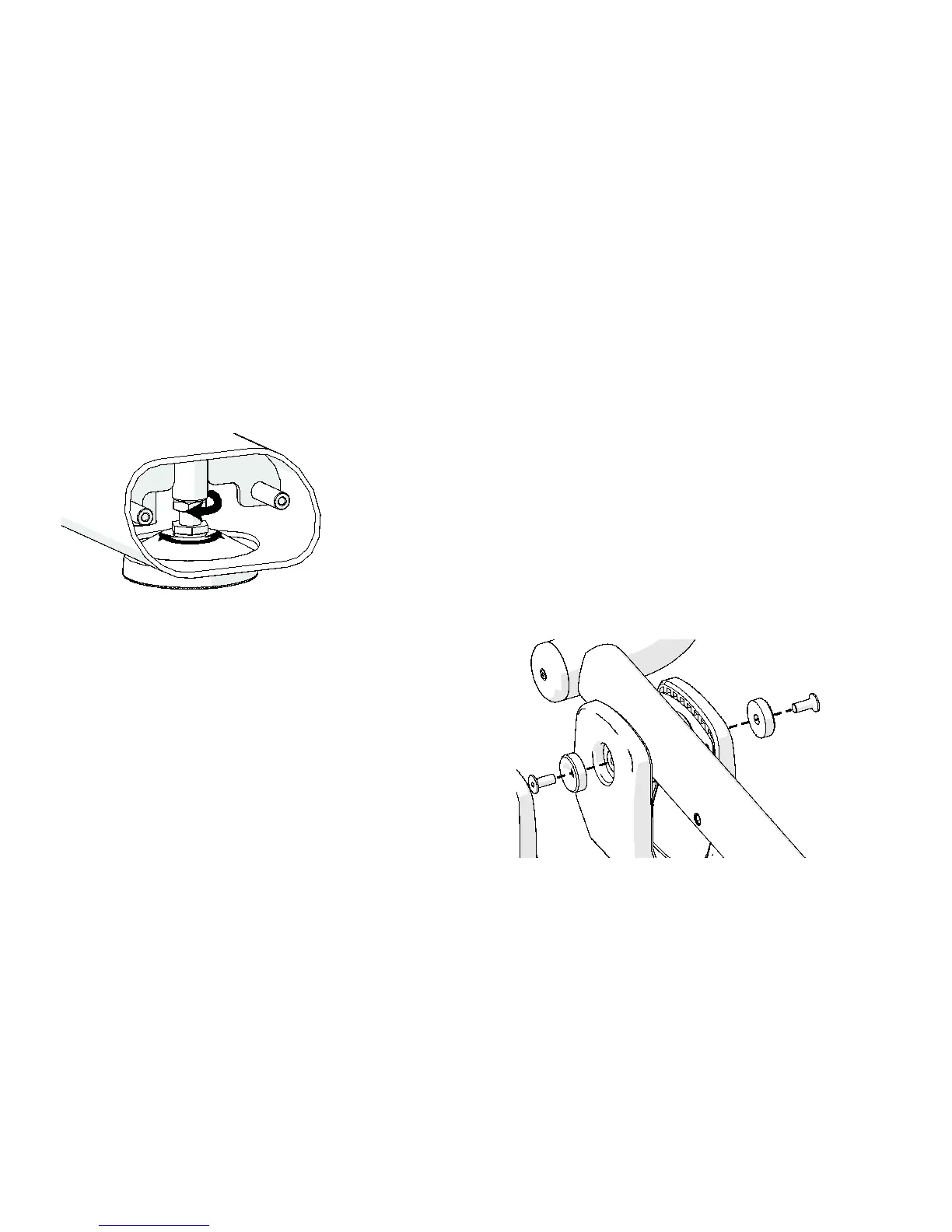

Figure 7: Adjustable foot positioning
6. Once the foot appears to be positioned correctly, test it by pressing down
on the end of the seat frame. If the frame is not stable, readjust the foot as
needed.
7. Re-tighten the jam nut.
8. Reinsert the end cap and its retaining screws. Tighten the screws
completely.
Installing the Movement Arms
You will need an assistant to hold the movement arms in place while you
complete this procedure.
To install the movement arms:
1. Remove the plastic ties that hold the spacer rings in place in the pivot
brackets.
2. Position the axle end of one movement arm within its pivot bracket so that
the openings in the bracket and the movement arm are aligned.
3. Press an axle through the openings in the bracket and the movement arm.
Note: The axle should slide easily through the openings. You should not
need to do anything more than tapping it lightly with a rubber mallet to
move it into place. If the axle becomes jammed during this step, check to
make sure the movement arm and the bracket are still aligned. If the axle
remains jammed, remove it and contact Customer Support.
4. Place an axle mount end on each end of the axle and attach a M12 x 30
mm flat head screw to each end, as shown in the following figure.
Figure 8: Movement arm axle installation
