Connecting the Gas Spring
The gas spring, which lifts the seat assembly when an exerciser adjusts the
seat height, is attached to the seat assembly and the frame through two
ball-shaped stems. the underside of the seat assembly; the other is on the
center upright near the base frame.
To attach the gas spring:
1. Insert the threaded end of the upper stem through the hole in the small
bracket on the underside of the seat, as shown in the following figure.
Important: Place the wide end of the gas spring up. Also, note that the seat
adjustment handle has been omitted from this figure to keep the gas spring and
its fasteners visible.

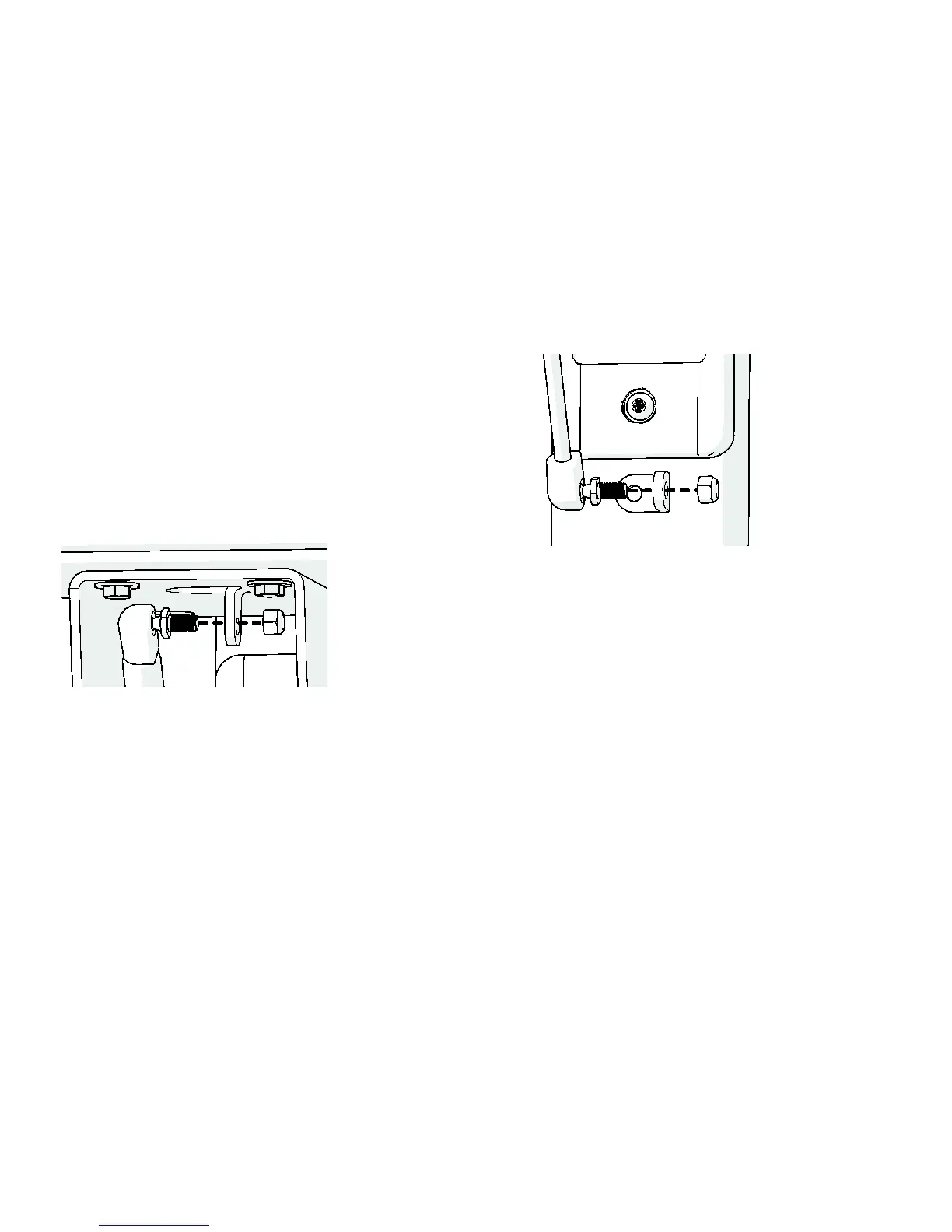

Figure 15: Gas spring attachment, upper end
2. Place a ⁵₁₆-inch nylon lock nut over the end of the stem and tighten it
partially.
3. Insert the threaded end of the lower stem through the hole in the small
bracket on the frame, as shown in the following figure.
Figure 16: Gas spring attachment, lower end
4. Place a ⁵₁₆-inch nylon lock nut over the end of the lower stem. Tighten both
nylon lock nuts completely.
