Glute Extension Assembly Guide: Routing the Cable Assembly 7
The cable is wrapped in packing material and attached to the equipment frame
for shipment. Proper cable routing is shown in the following figure.

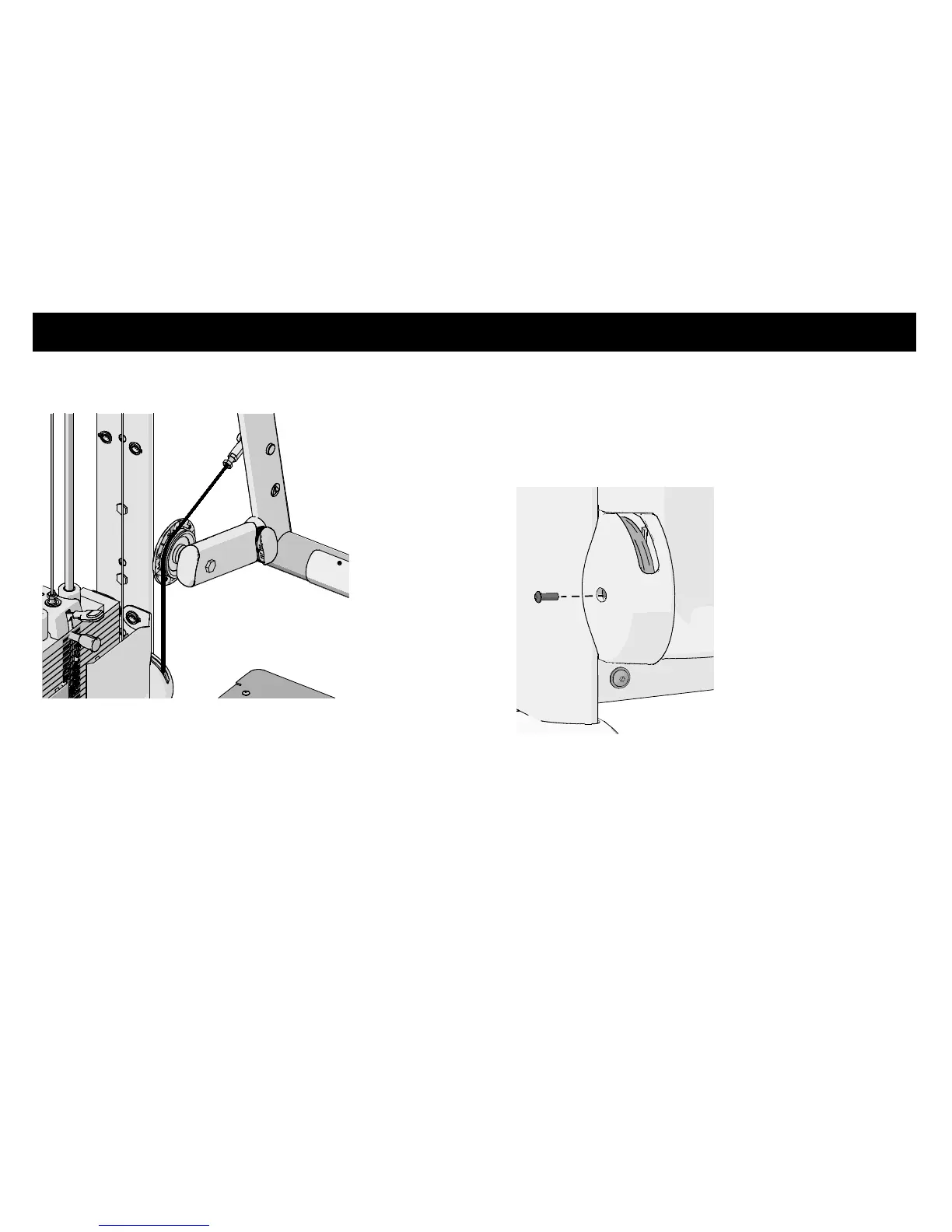

Figure 7: Proper cable routing
If necessary, use the following procedure to restore the cable to its original
route.
To route the cable on the movement frame:
1. Using a #2 Phillips bit, remove the screws on the pulley cover.
2. Route the cable over the pulley as shown in preceding figure.
3. Replace the pulley cover and screws. Tighten to 10 in-lb (1 N-m) of torque.
Routing the Cable on the Weight Tower
The weight tower ships with the kick cover and pulley cover attached.
To route the cable on the weight tower:
1. Using a ⁵₃₂-inch hex bit, remove the screw and pulley cover and set them
aside.
Figure 8: Kick plate pulley cover removal
Routing the Cable Assembly
