Precor EFX524 - HARDWARE KIT

page 10
COMMERCIAL PRODUCTS DIVISION

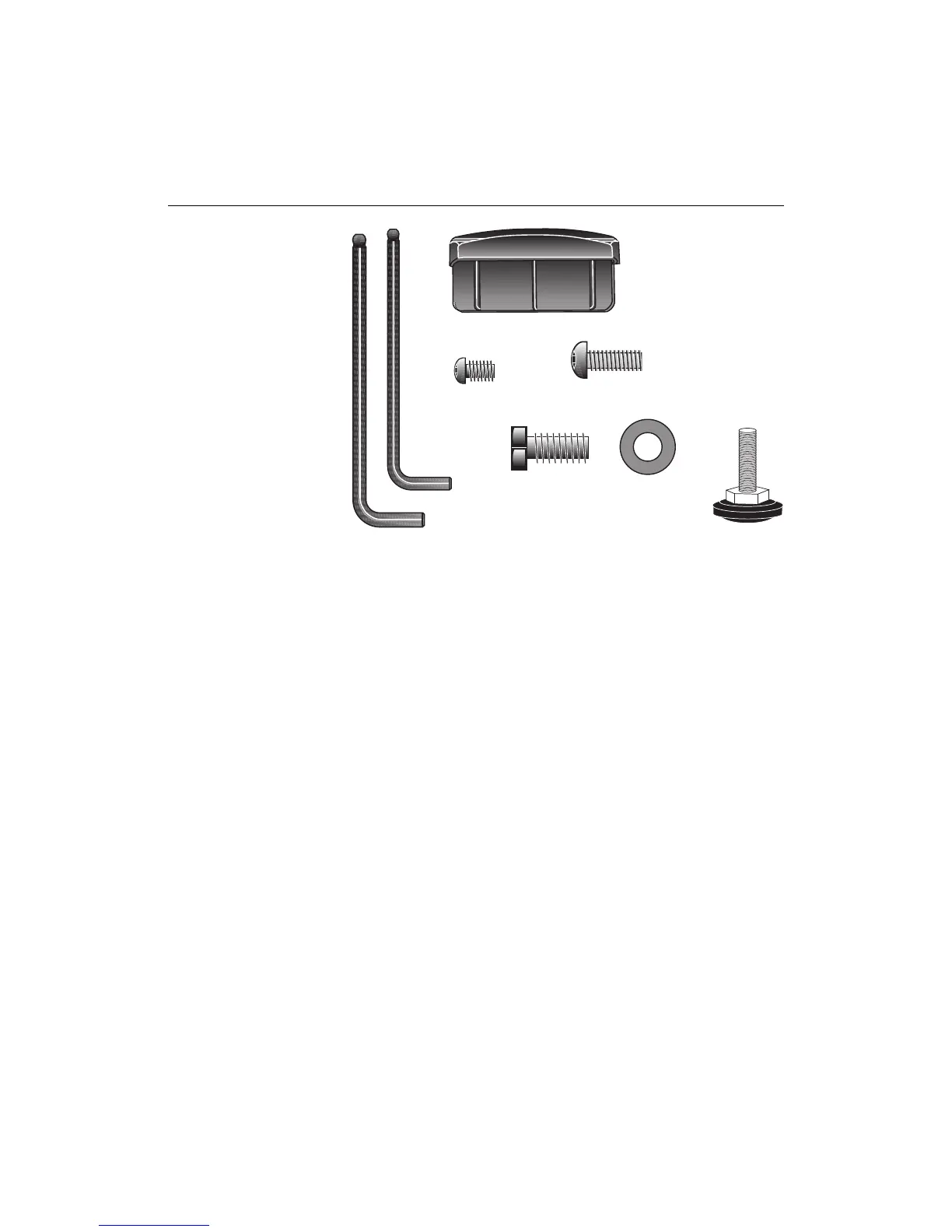

Diagram 2 EFX524
Hardware kit
HARDWARE KIT
Carefully unpack the parts from the shipping container. Open the Hardware Kit
and make sure that you have the following items as shown in Diagram 2:
❑ (A) 3/16-inch hex key — secure handrails in handrail clamp
❑ (B) 5/32-inch hex key — secure front covers
❑ (C) End cap
❑ (D) Four Phillips-head 1/2-inch screws — attach display console
❑ (E) Four buttonhead 3/4-inch screws — secure front cover
❑ (F) Twenty hex head 1-inch bolts — attach upright, handrails and stabilizers
❑ (G) Twenty 3/8-inch bolts — attach upright and stabilizers to base
❑ (H) Height adjustor
If any items are missing, contact your dealer. If you need customer service, refer
to Obtaining Service on page 5.
Note: After assembling the EFX, be sure to store the hex keys in a secure place.
The tools are used for maintenance procedures that are described in this manual.
B
A
C
D
E
F
H
G
