page 12
COMMERCIAL PRODUCTS DIVISION
CAUTION: Do not assemble the EFX if it is connected to the optional
battery recharger. Remove the battery recharger from the EFX prior to
assembly.
4. Cut the tie wrap securing the front base tube to the pallet. Discard the tie
wrap.
5. Thread the height adjustor to its lowest position. Diagram 4, #1 and #2.
Remove the height adjustor from the Hardware kit. Ask an assistant to lift the
front base tube while you insert the height adjustor. Turn the height adjustor so
that the threads appear inside the base tube. Tighten the nut (with a crescent
2

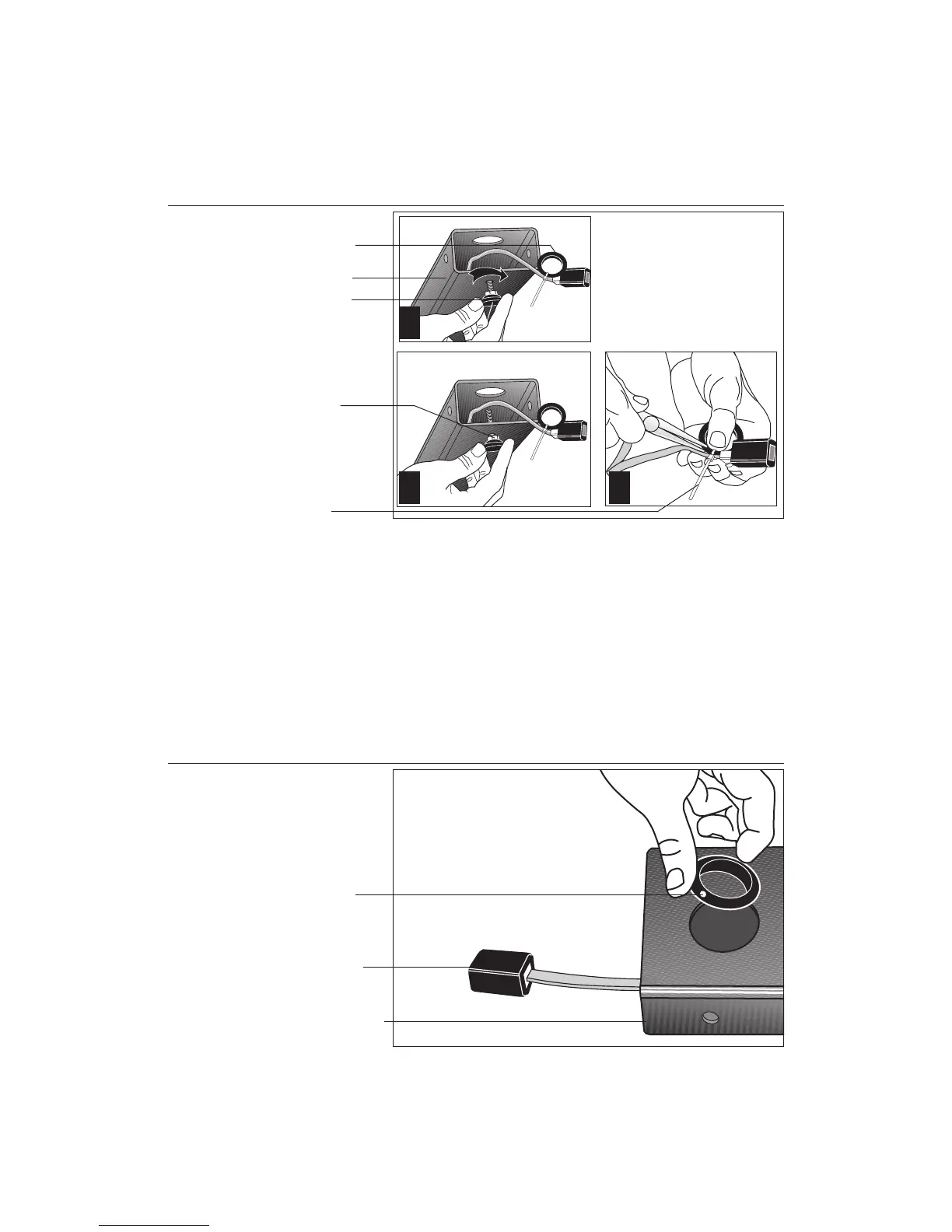

Diagram 4
Front base assembly.
Cut the tie wrap that
secures the grommet
to the cable.
Height adjustor
Front base tube
3
Tighten the height
adjustor so that the
nut is secure against
the front tube.
1
Plastic grommet
Diagram 5
Front base assembly.
Plastic grommet
Front base assembly
Cable receptacle
wrench) when the height adjustor is fully threaded into the front base tube.
6. Cut the tie wrap holding the plastic grommet. Diagram 4, #3. Use a wire
To Next Page
