46 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833 / 823
Connecting Cables (P20)
After the console has been seated, separate the individual
cables out of the end of the cable assembly and attach them
to the appropriate circuit connectors inside the console. Refer
to the following diagram and table to identify the cables and
connectors.

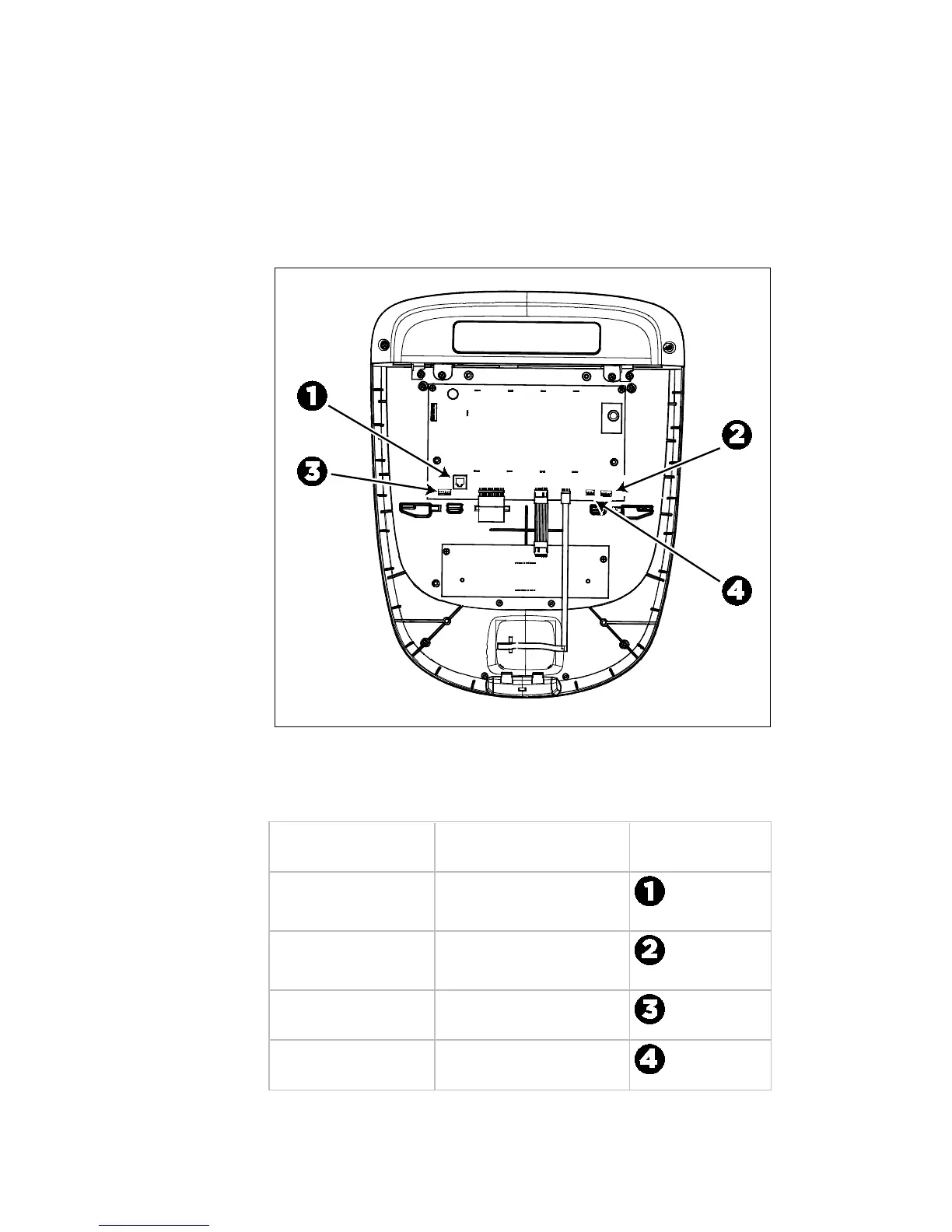

Figure 32: Cable connections, P20 console
Table 3. P20 internal cable connections
Cable Connector Type Circuit Connector
Location
Data from base unit
Eight-contact modular,
on flat gray cable
Heart rate sensors
Four-contact strip, keyed
Safety key
(treadmills only)
Six-contact strip, keyed
Auto Stop sensor
(treadmills only)
Four-contact strip, keyed
