44 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833 / 823
Connecting Cables (P30)
After the console has been seated, separate the individual
cables out of the end of the cable assembly and attach them
to the appropriate circuit connectors inside the console. Refer
to the following diagram and table to identify the cables and
connectors.

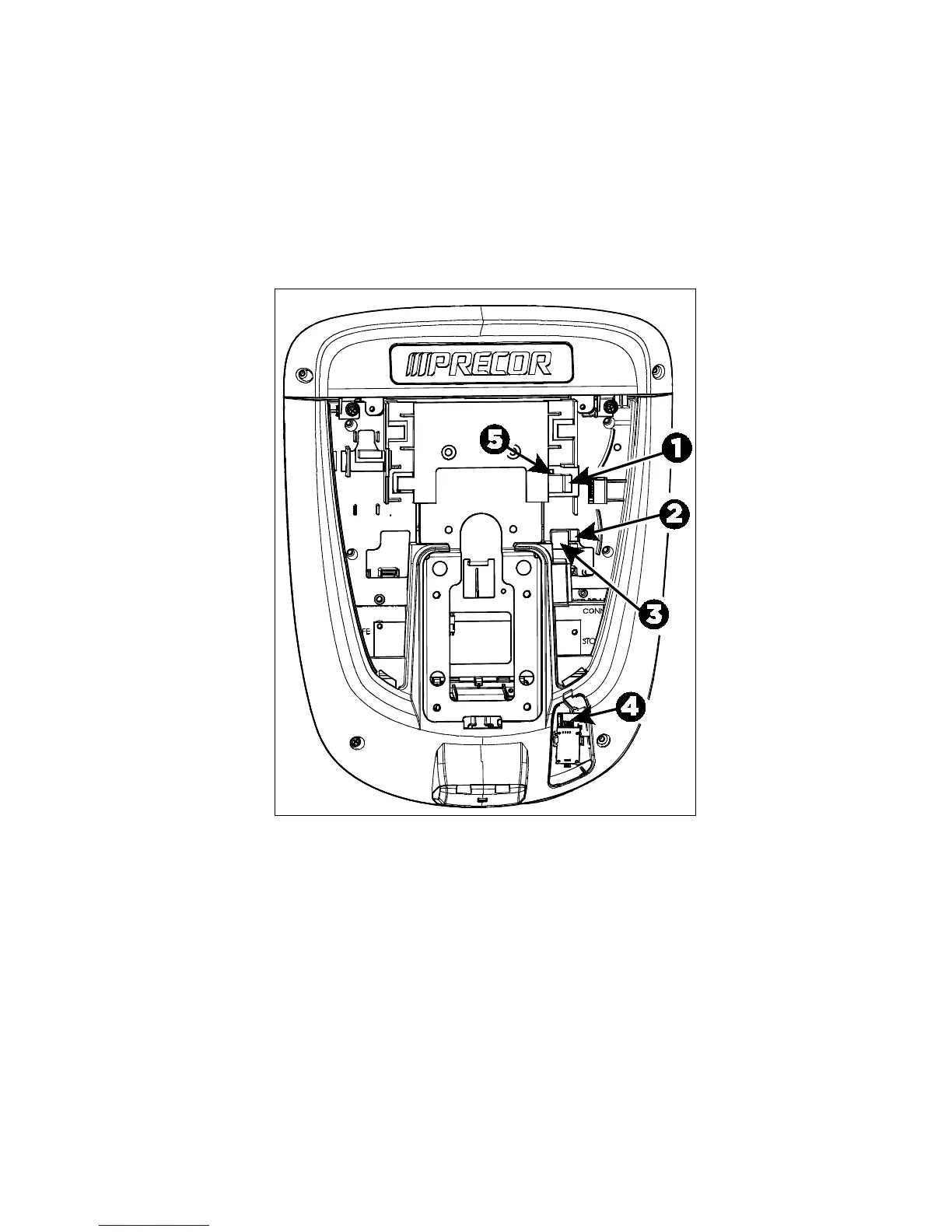

Figure 31: Cable connections, P30 console
