Assembling the EFX 31
5. Slide the covers down and snap them into the base
mount.
Note: Be sure to align the covers so that the lip of each
cover fits inside the edge of the base mount and the hook
on the base mount fits into the corresponding slot on the
cover. When you have snapped the covers into place, the
surfaces of the covers and the base mount should line up
smoothly.
6. Repeat steps 1 through 5 to attach the other pair of
upright support covers.
Leveling the EFX
Make sure the unit is level before allowing anyone to use it.
CAUTION: To eliminate movement, make sure the adjustable feet
are in contact with the floor.
To level the unit:
1. Gently rock the unit. If there is any movement, ask your
assistant to tip the unit to one side while you locate the
adjustable feet.
2. Correct the height of each adjustable foot as follows.
If you want to …
Then turn the adjustable feet …
Raise the unit Counterclockwise
Lower the unit Clockwise

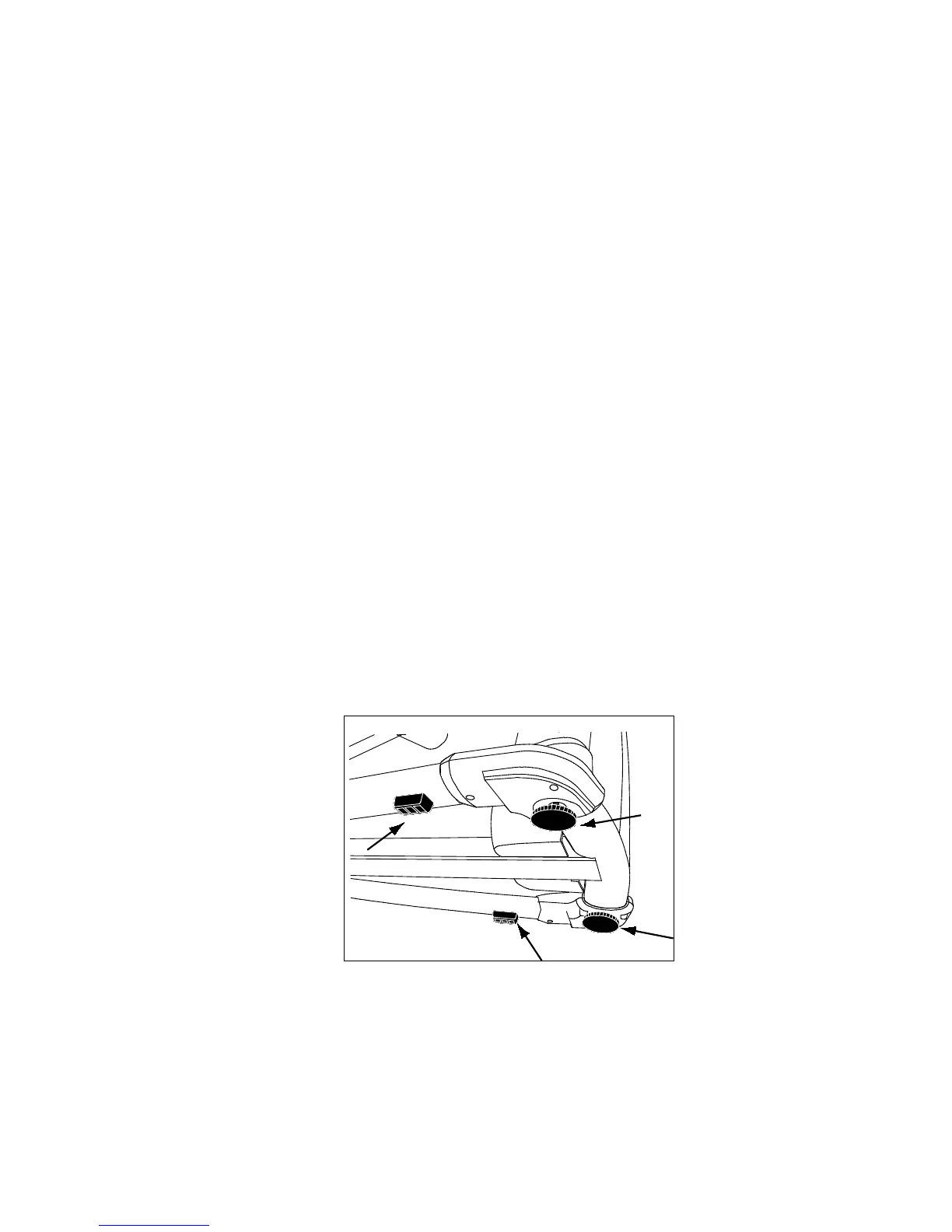

Figure 21: Rubber pad and adjustable foot locations
Important: Place the unit on a flat surface. Rotating the
adjustable feet cannot compensate for extremely uneven surfaces.
When you are finished adjusting the unit, place the unit on the
floor and recheck that it is level.
