30 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833 / 823
To attach the water bottle holder:
1. Position the water bottle holder as shown and attach it to
the right stationary handlebar.

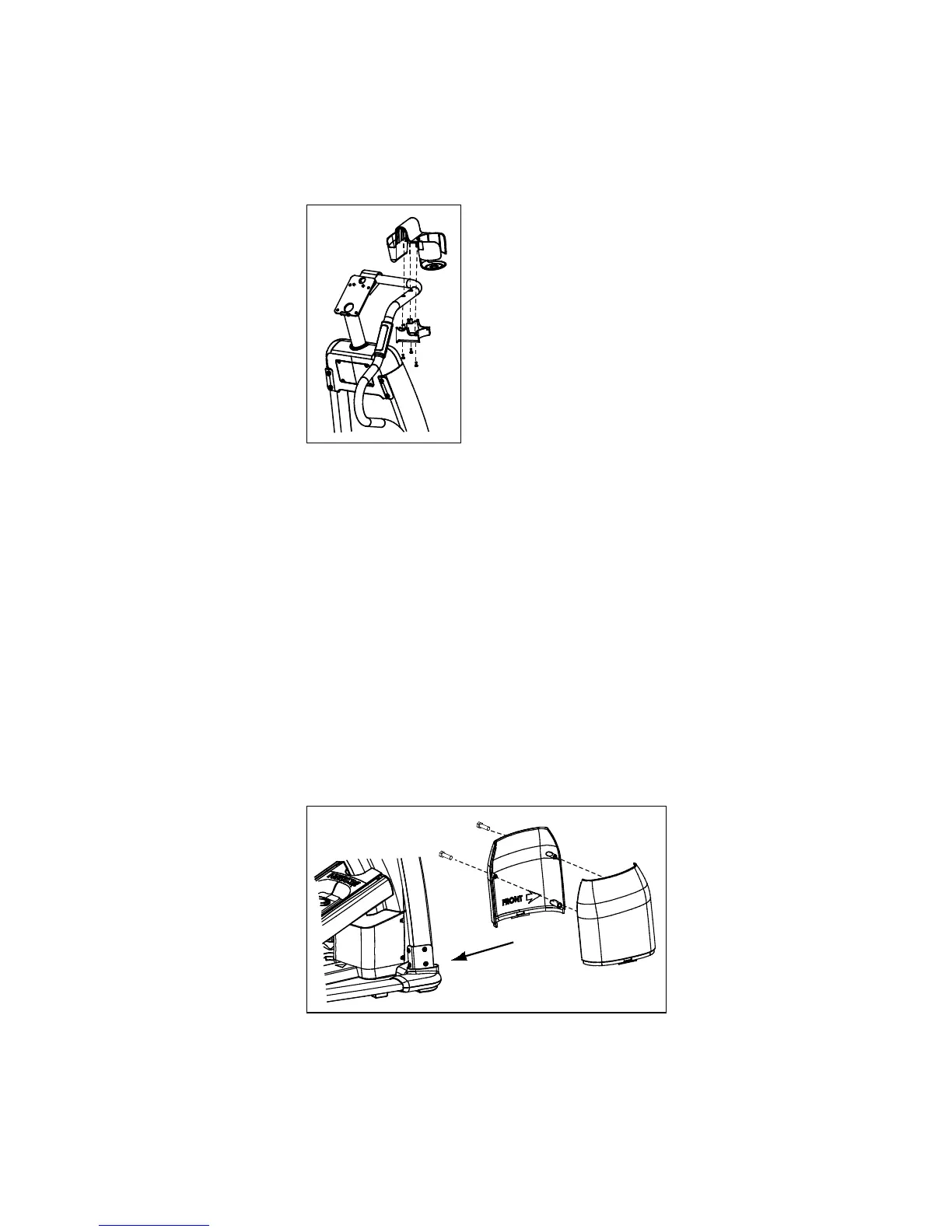

Figure 19: Water bottle attachment
2. Secure the holder using three Phillips-head screws.
To attach the upright support covers:
1. Place one inner and one outer upright support cover
around one of the upright supports, aligning them so that
the arrows on their inside surfaces point toward the front
of the equipment.
2. Line up the protrusions on the outer cover with the screw
holes on the inner cover.
3. Apply pressure to both covers so that the protrusions fit
firmly into the screw holes.
4. Secure the upright support covers using two self-tapping
screws.
Figure 20: Upright support cover attachment (right-hand
cover shown)
