Assembling the EFX 19
Required Tools
#2 Phillips screwdriver
Rubber mallet
SAE standard hex wrench set
SAE standard socket set
Two ⁹₁₆-inch wrenches (open-end and box-end)
Wire cutter
Performing the Assembly
Do not attempt to connect electrical power until
all assembly procedures are complete and the
console is properly installed.
As you assemble the EFX, make sure to construct the cable
assembly as directed so that the necessary connections are
accessible when you add the console.
To begin assembly:
1. Remove the lift cover and set it aside.
Important: Grease on the lift screw can stain clothing. Be
careful not to get grease on your clothing as you remove the
lift cover. Do not remove the grease from the lift screw,
because it is required for proper operation.

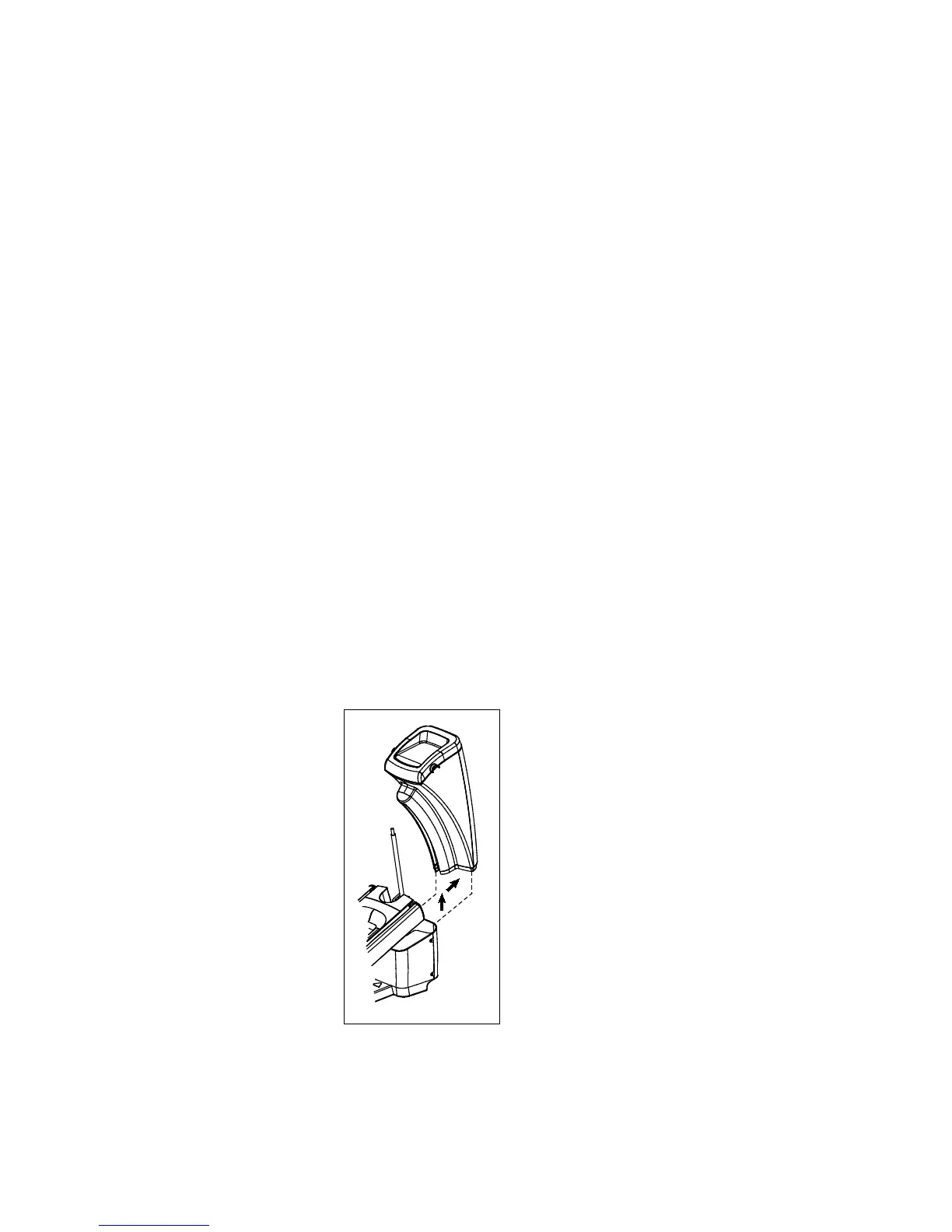

Figure 2: Lift cover removal
