Installing the Console 43
3. Rest the console on the console mount so that the notch
on the bottom of the console’s back plate rests on the
rectangular hook at the bottom of the console mount, as
shown in the following figure.

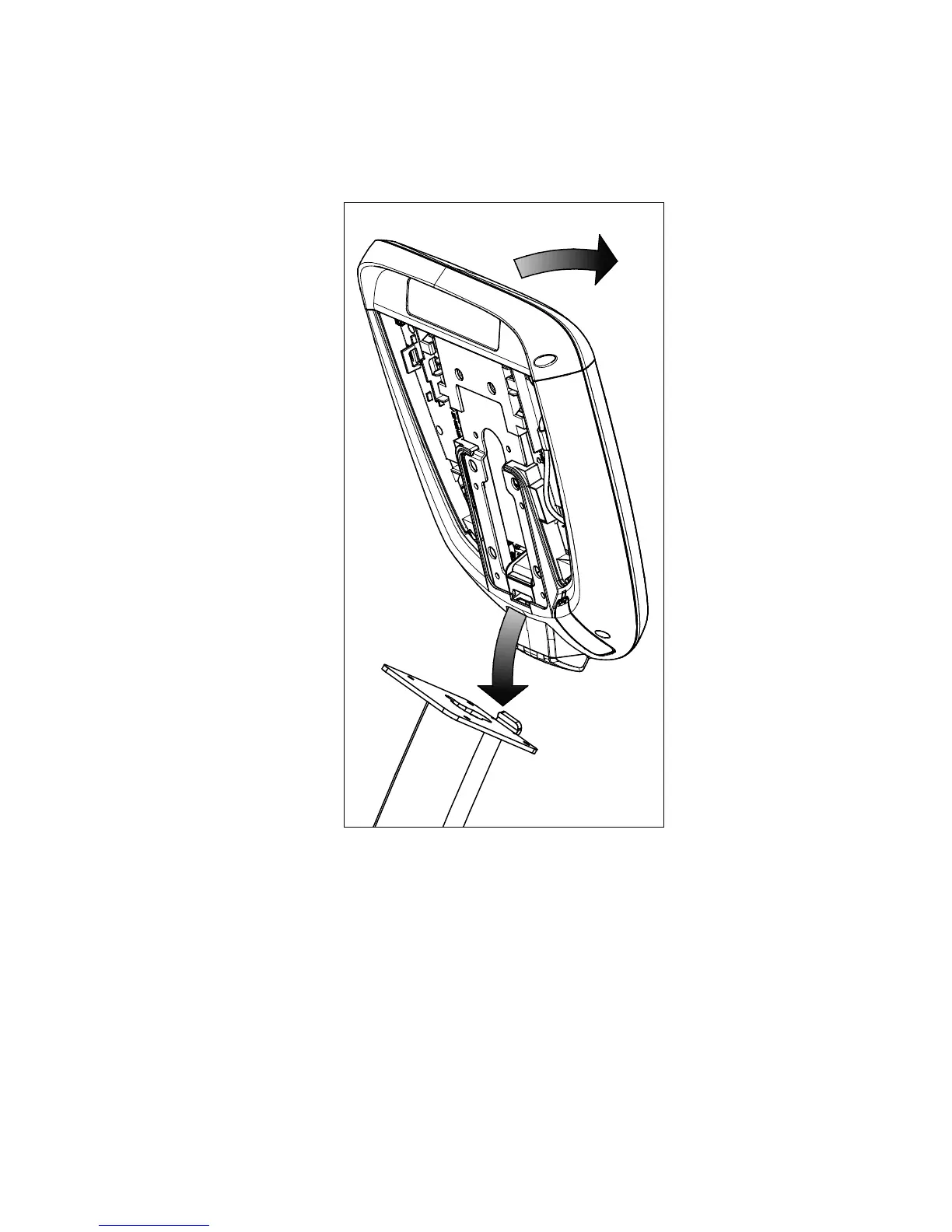

Figure 30: Console positioning on base unit
4. Tilt the console forward until it stops. Use one hand to
steady the console in this position, or ask your assistant
to do so.
5. Pull all cables upward and forward until you can drape
them over the top of the console’s back plate.
