8. Pull the end of the cable upward through the opening just
behind the lift motor, as shown in the previous illustration.
9. Attach the cable to the appropriate connector inside the
base of the EFX, as shown in the following illustration and
table.
Important: Install coaxial cable using a torque wrench and
torque to not exceed 8 lb-in. If a torque wrench is not
available, install the coaxial cable using a wrench to “snug +
¼ turn.” It is permissible to use a wrench on the internal nut
to aid the tightening process.

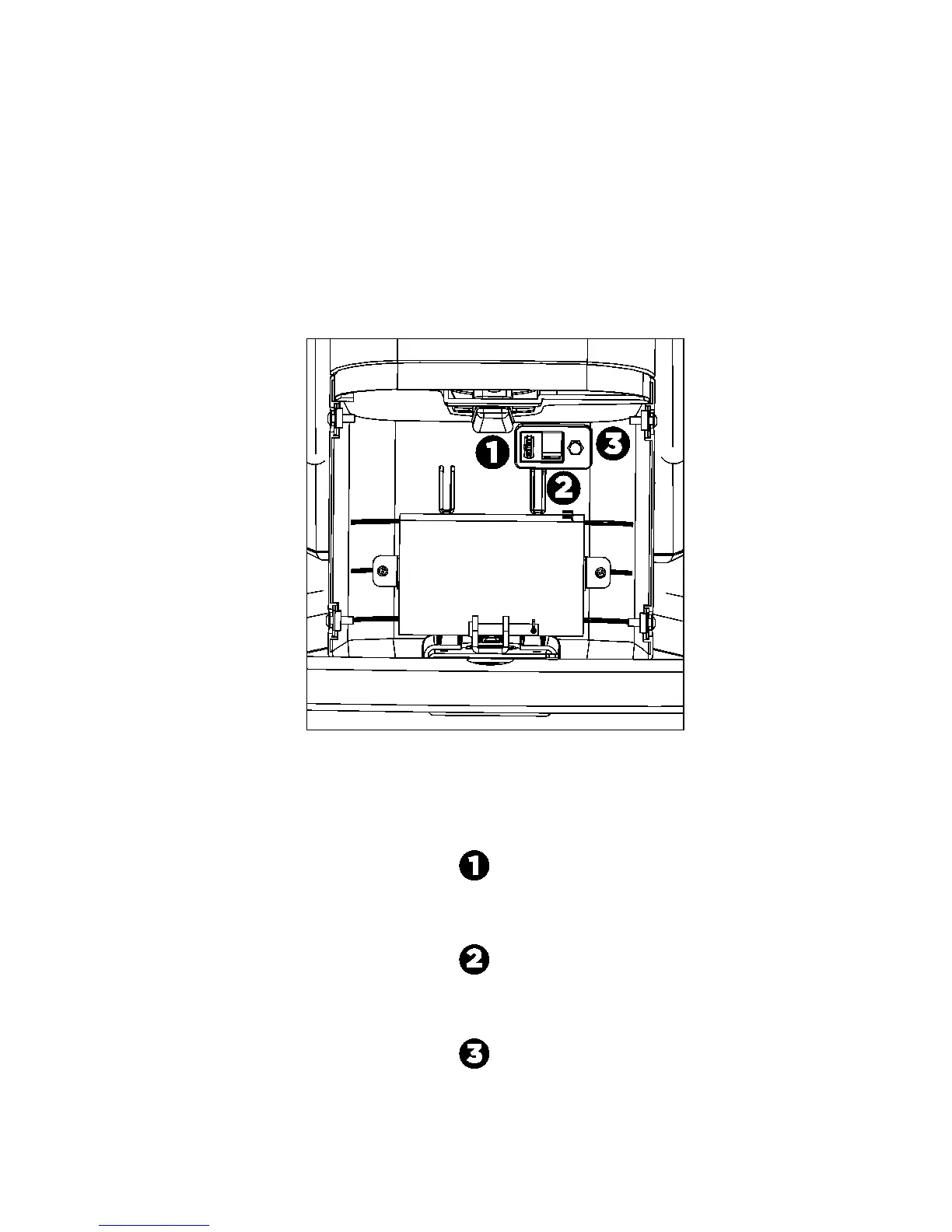

Figure 6: Cable connection points inside EFX base
Connect … To …
The console power
cable (red and
black, individual
leads)
The power connector on the jack panel
The television
cable (black and
round)
The coaxial connector on the jack panel
The Ethernet cable
(black and flat)
The eight-connector modular jack on the
jack panel
10. Repeat steps 7 through 9 for the remaining cables you
want to install.
