34 Assembling and Maintaining Elliptical Fitness Crosstrainers: EFX 883 / 833 / 823
Important: Before you begin the following procedure, remove the
rear cover from the control console. To remove the cover, use your
fingernails to pry the lower edge loose, then swing the cover up
and out as shown in the following illustration.

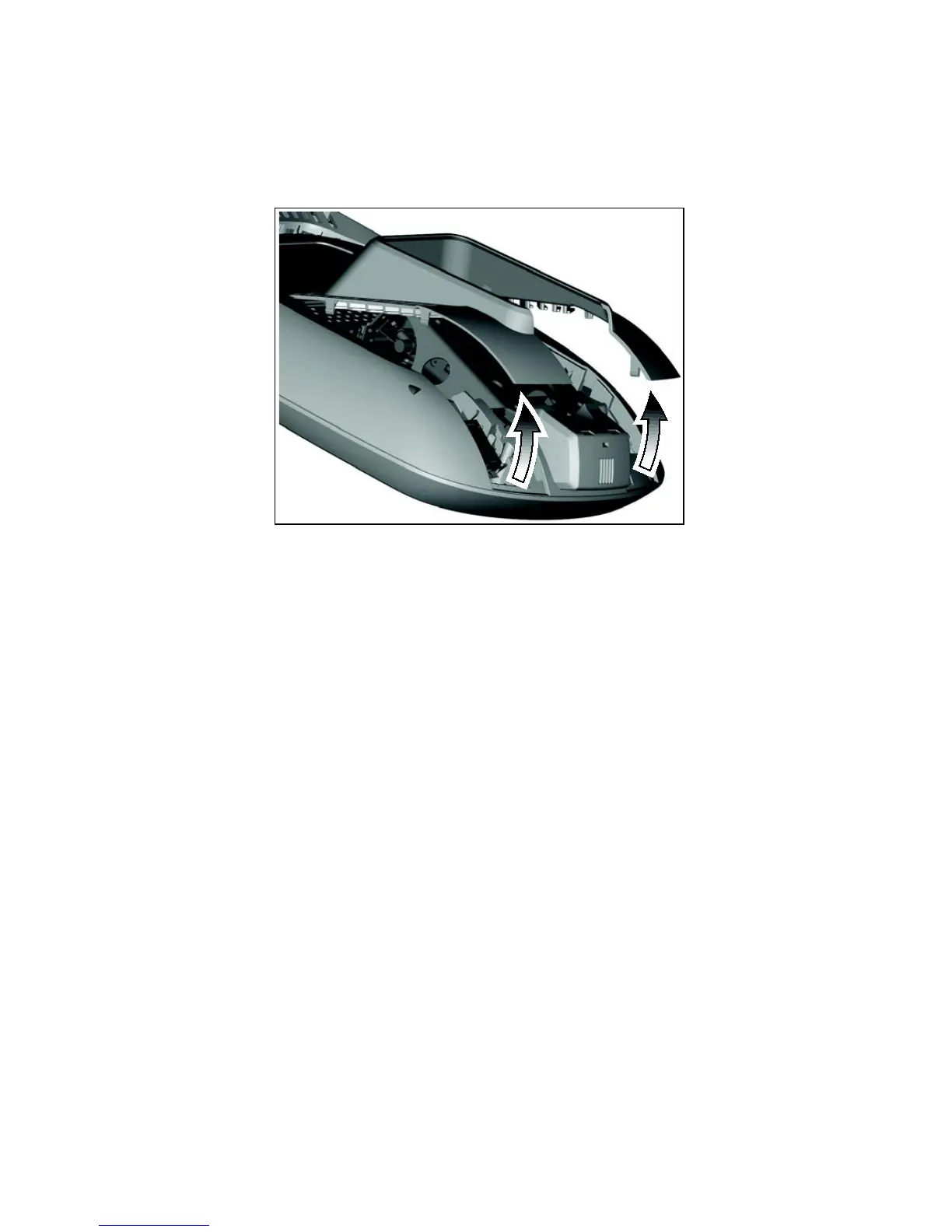

Figure 22: Removing the access cover from the P80 console
To thread the cable assembly:
1. Make sure that as much of each cable as possible passes
through the opening in the middle of the console mount
on the base unit.
2. Position the console over the console mount.
To Next Page
