Assembling the Treadmill 35
To complete assembly of the treadmill base:
1. Attach a corner cover to each of the lower front corners of
the treadmill. Insert the two hooks on the inside of each
corner cover into the rectangular openings in the treadmill
frame, then rotate the cover into position.

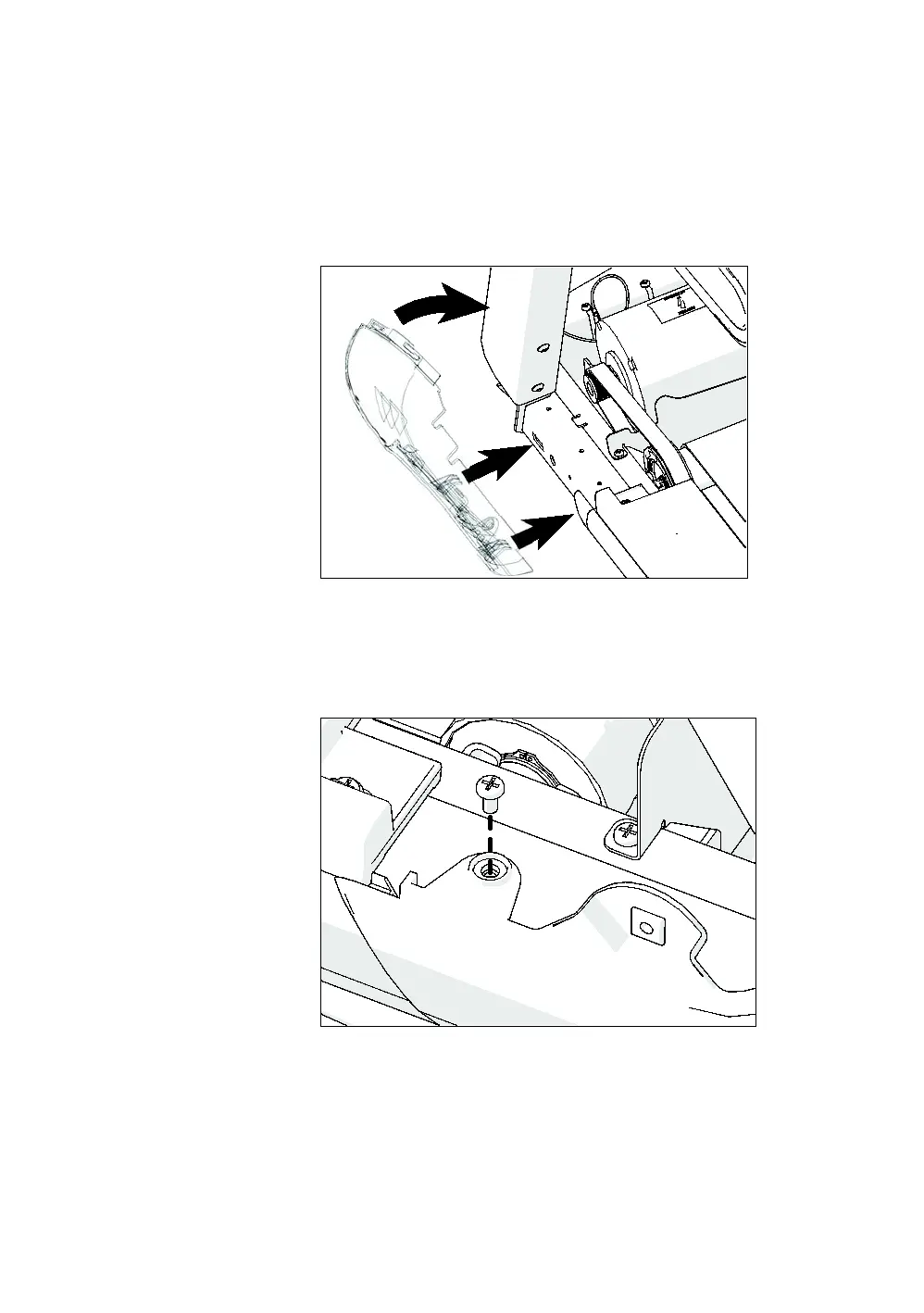

Figure 16: Corner cover positioning
2. Secure each corner cover in place using a ¹₄-inch ×
³₄-inch panhead self-tapping screw and tighten both
screws using a #3 Phillips screwdriver.
Figure 17: Corner cover attachment
3. Position the hood between the upright supports.
4. Gently flex the bottom edge of the hood around the
bracket at the front of the treadmill. Allow the hood to
settle into place with its tabs in the slots on the corner
covers.
