48 Assembling and Maintaining TRM 800-Series Treadmills
Connecting Cables (P30 and P10)
Important: Pass all cables through the semicircular opening just
above the console mount, as shown in the following figure. Do not
attempt to route any cables through other openings or through the
steel channel above the mount.

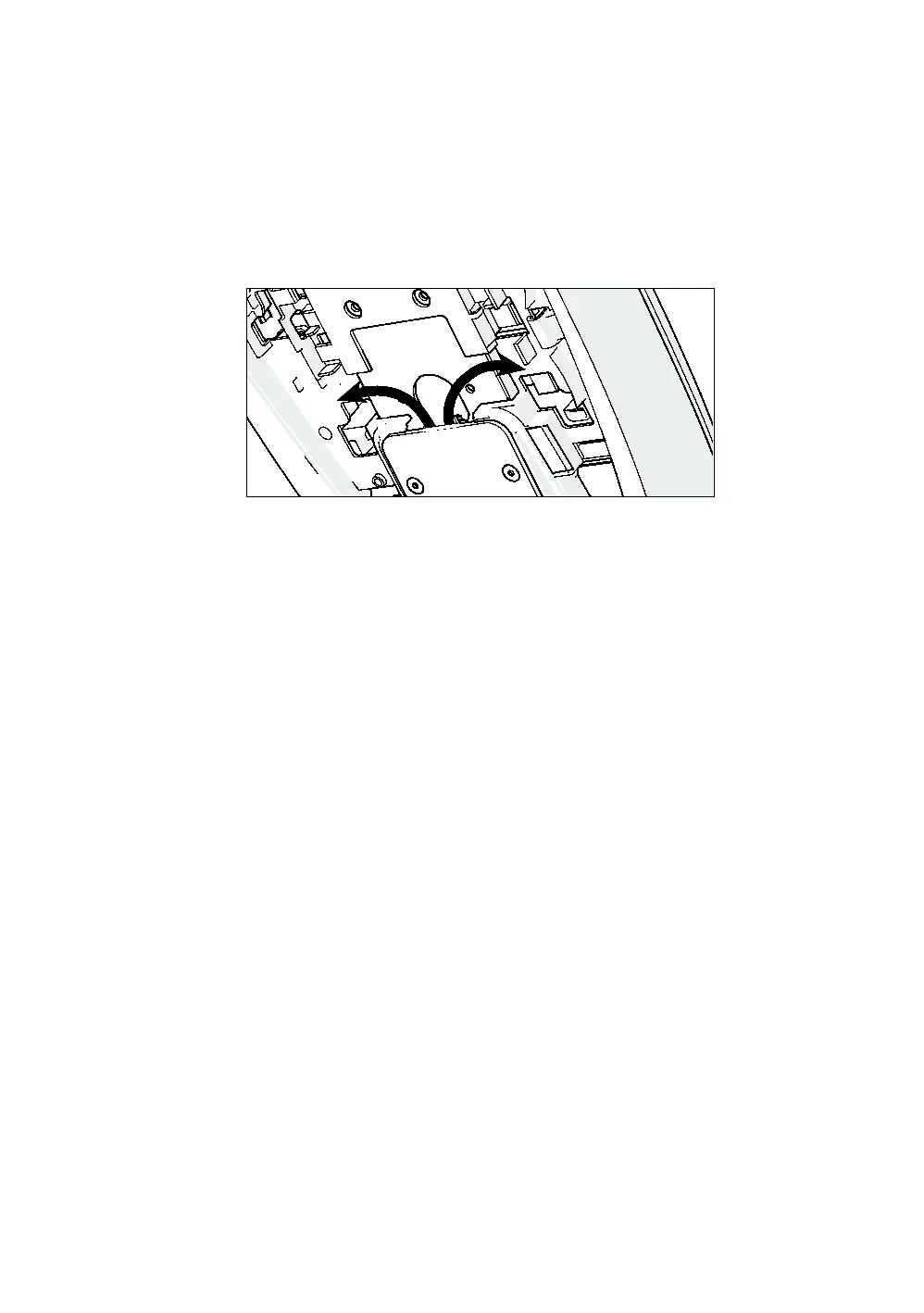

Figure 27: Cable routing from the mount into the console
To Next Page
