Assembling the Treadmill 23
Assembling the Frame
Make sure that the treadmill is not connected to any power source
before you begin the following procedures.
Each of the upright supports on this treadmill has two internal
channels: one to provide structural support and one to
contain the cables. The following figure shows the location of
the cable channel in each upright support.

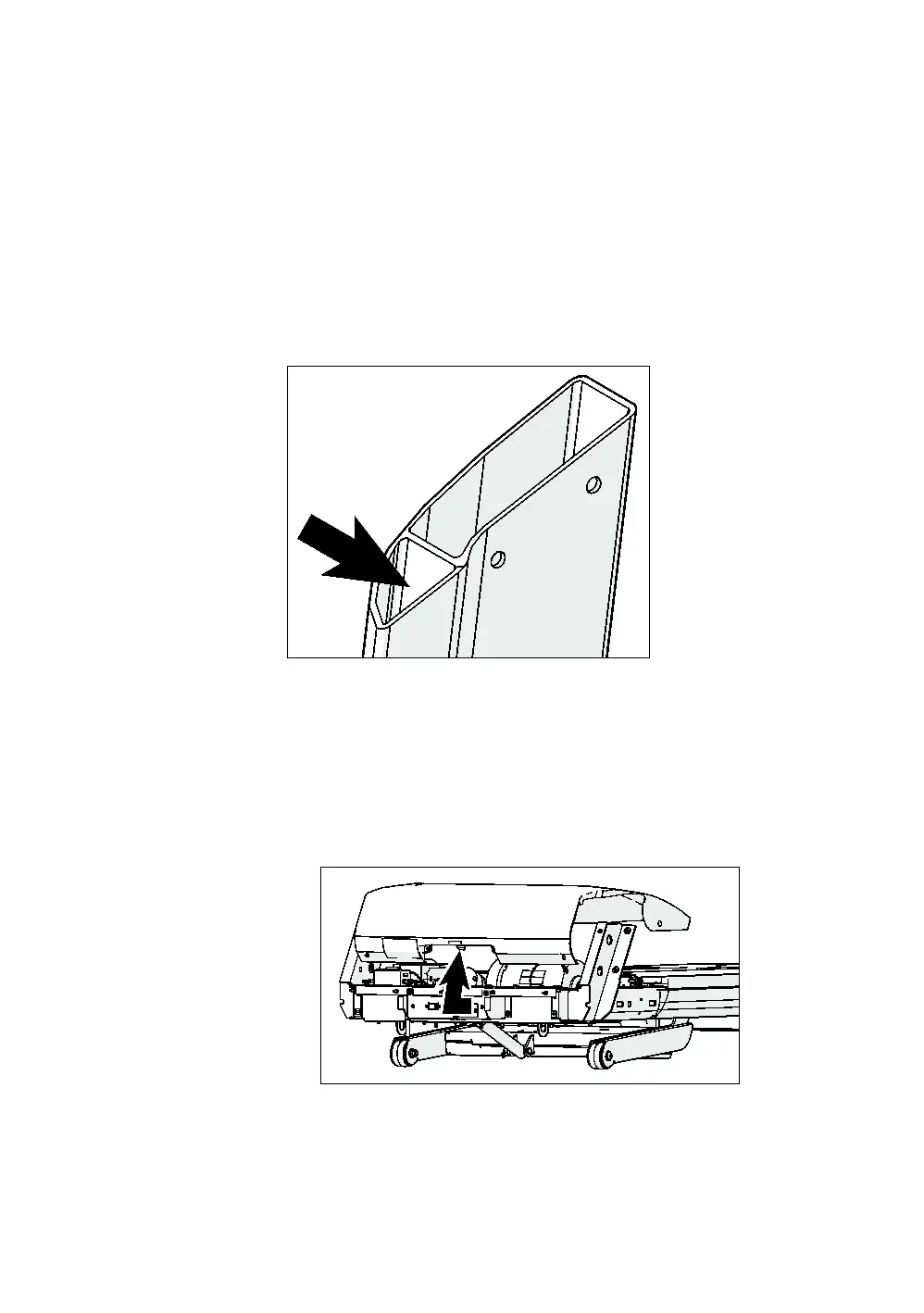

Figure 3: Cable channel location
To begin assembly of the frame:
1. Gently flex the bottom front edge of the treadmill hood
forward and around the bracket at the front of the
treadmill base. Lift the hood off of the treadmill base and
set it aside.
Figure 4: Hood removal
2. Place the upright supports on the treadmill deck, next to
the base frame side brackets where you will be installing
them.
