Installing the Console 41
Connecting Cables (P80)
After the console has been seated, separate the individual
cables out of the end of the console cable assembly and
attach them to the appropriate circuit connectors inside the
console. Refer to the following diagram and table to identify
the cables and connectors.
Important: All cables must pass through the opening in the
center of the console mount.

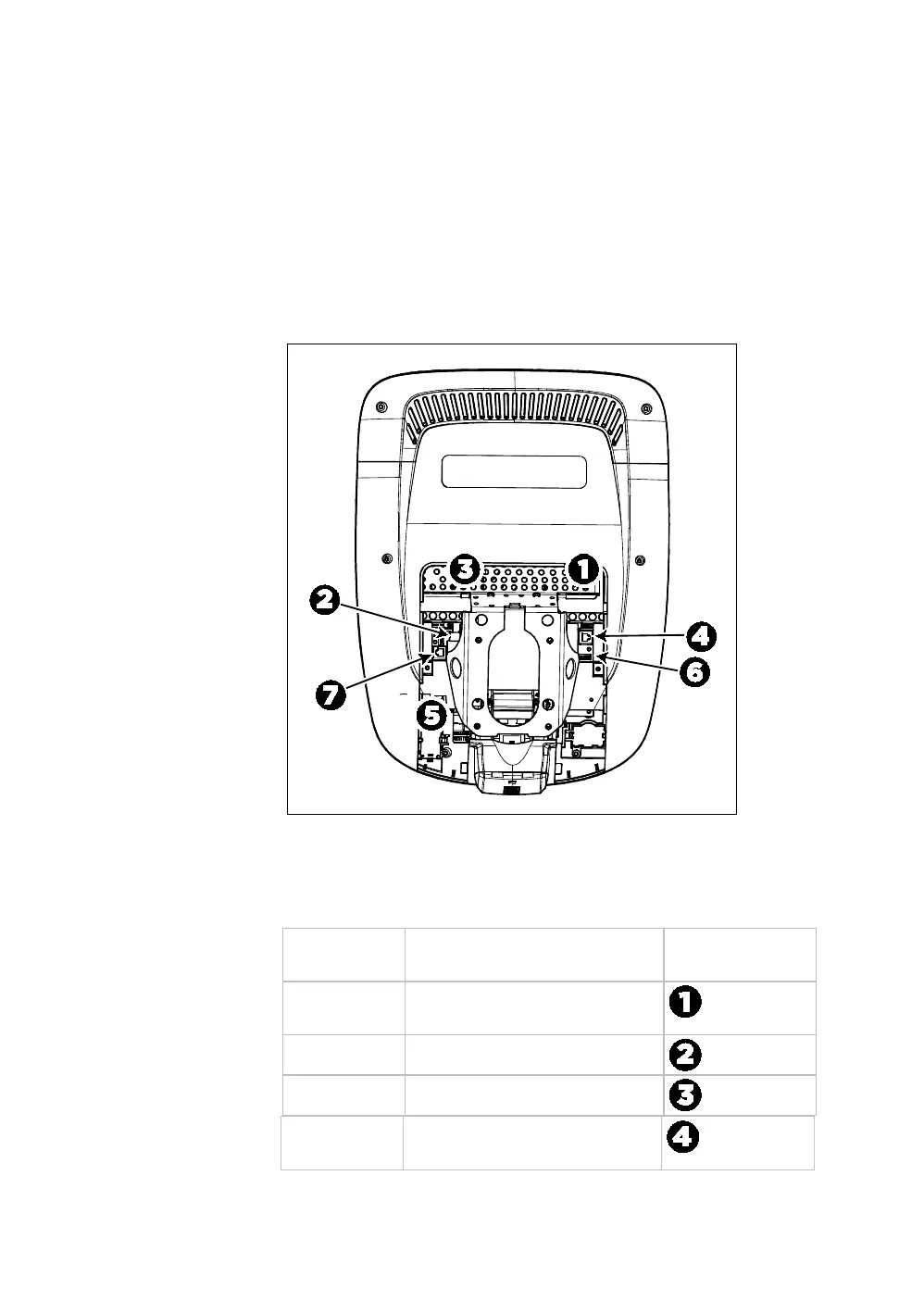

Figure 21: Cable connections, P80 console
Table 2. P80 internal cable connections
Data from
base unit
Eight-contact modular, on flat
gray cable
Cable Connector Type Circuit Connector
Location
Ethernet
(LAN)
Eight-contact modular, on
round black cable
TV in F-type coaxial
Power Split power cable
