Installing the Console 45
Connecting the Heart Rate Sensor Cable
The heart rate sensor cable passes through the cutaway
opening at the upper left corner of the back plate, then down
to the small circuit board at the lower left of the console. The
following illustration shows how the cable should look once it
is installed.

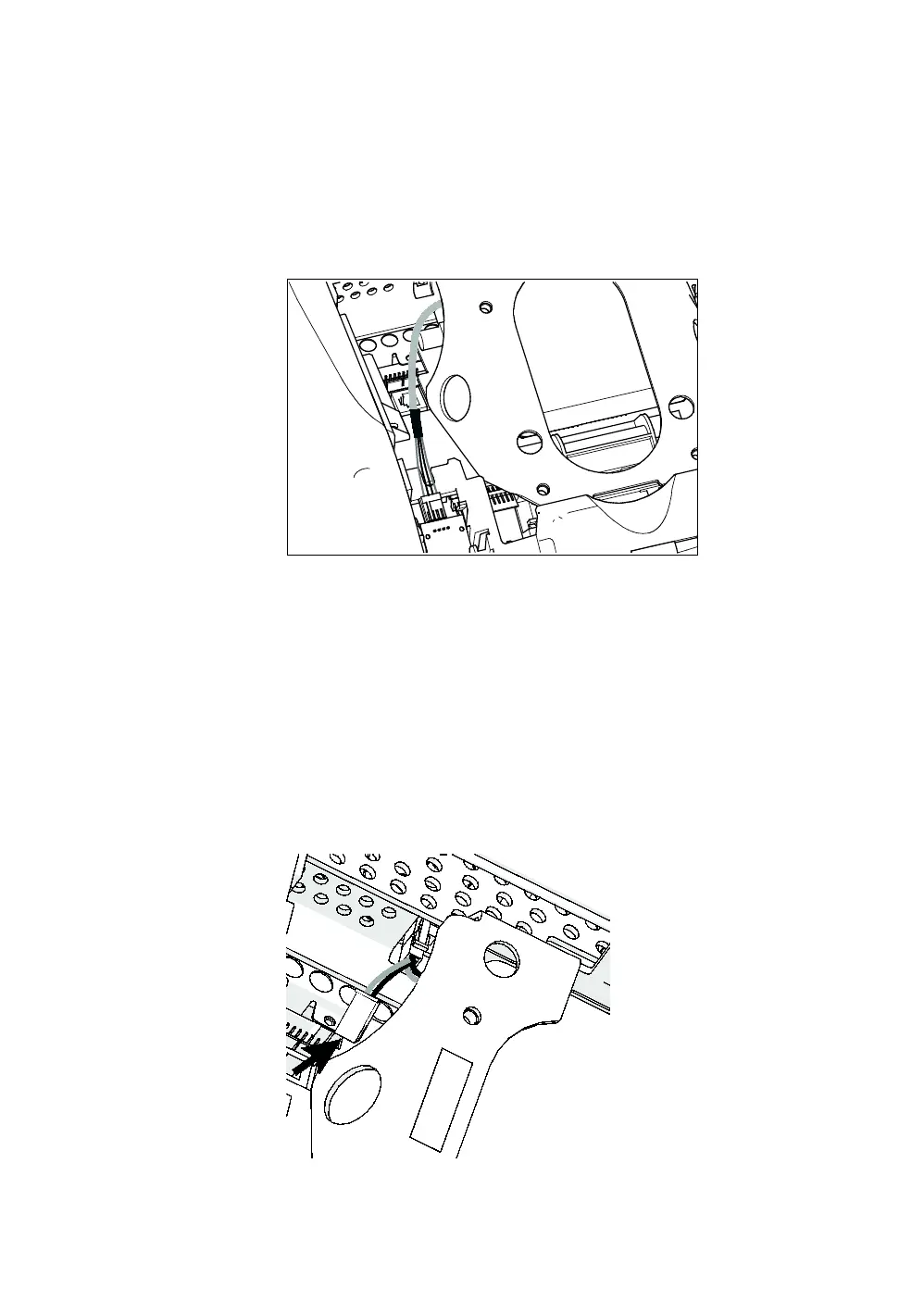

Figure 24: Connecting the heart rate cable
Connecting the Power Cable
Route the power cable through the cutaway opening at the
upper left corner of the back plate. In the nearby opening
within the steel console framework, locate the input
connector on the split power cable and connect the power
cable to it.
Note: Be sure that the latch on the plug clicks into place on
the socket.
Figure 25: Connect power cable
