How To Use the Quick Connect Fittings on the RO Module

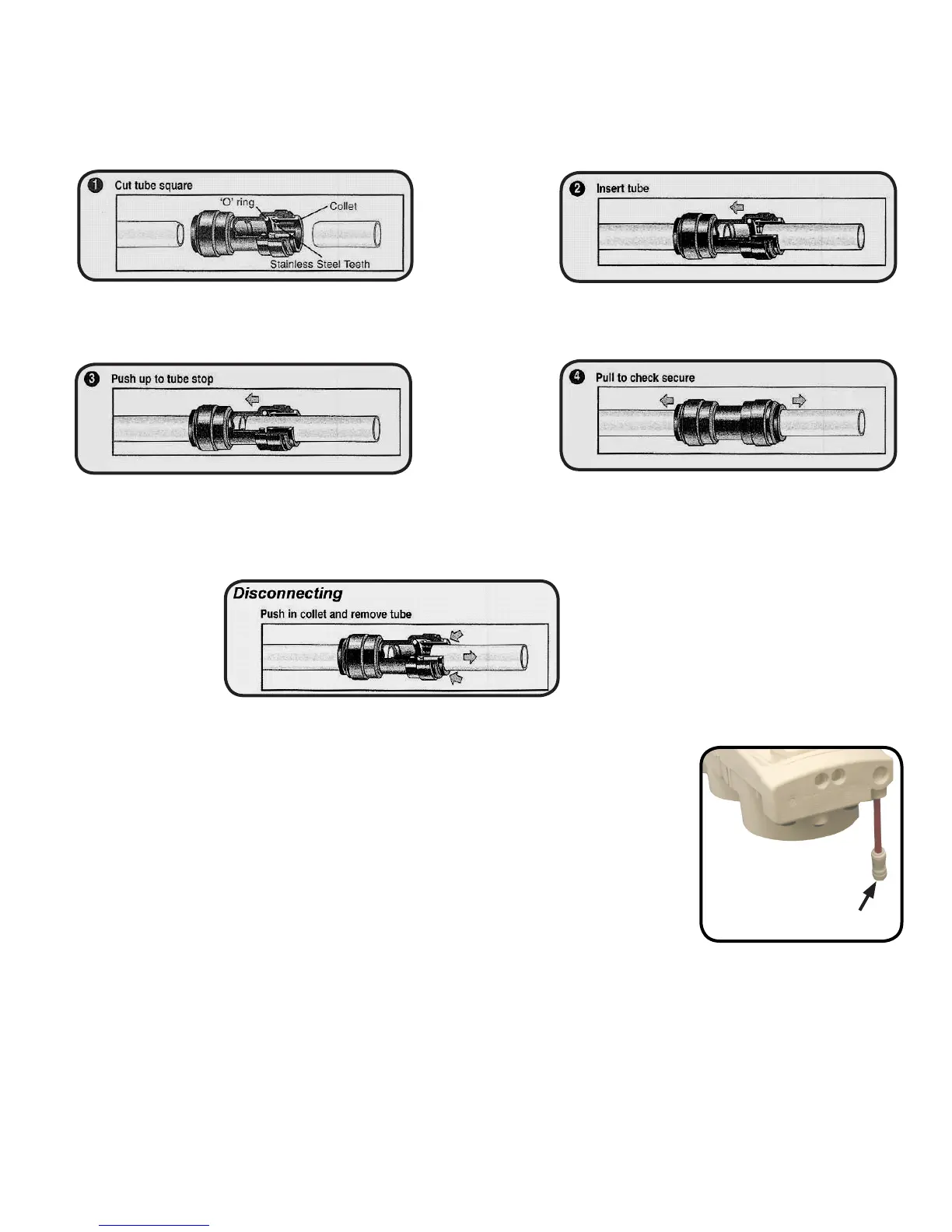

To make a connection, the tube is simply pushed into the tting. The unique patented John Guest®
locking system holds the tube rmly in place without deforming it or restricting ow.
It is essential that the outside diameter be free of score
marks and that burrs and sharp edges be removed before
inserting into tting.
Fitting grips before it seals. Ensure tube is pushed into
the tube stop.
Push the tube into the tting, to the tube stop. The collet
(gripper) has stainless steel teeth which hold the tube
rmly in position while the O-ring provides a permanent
leak proof seal.
Pull on the tube to check that it is secure. It is a good practice
to test the system prior to leaving site and /or before use.
To disconnect, ensure the system is depressurized before
removing the tube. Push in collect squarely against face
of tting. With the collet held in this position, the tube can
be removed. The tting can then be reused.
Connect the Blue Tube from the Faucet to RO Module
Step 23
Step 22
Connect the Red Tube from Faucet to RO Module
Insert the open end of the red 1/4” tube attached to the RO faucet
into the 1/4” X 1/4” quick connect tting on the RO Manifold. Make
sure the tube is pushed in all the way to the tube stop. (See Picture)
Insert the blue 3/8” tube from the faucet into the port on the module
marked “FAUCET”. Make sure the tube is pushed in all the way
to the tube stop.
A connection to a refrigerator / ice maker may be tee’d into this blue tube.
Watts Premier offers an ice maker install kit part # 500102 (See Page 22).
Note:
Connect red faucet tube.
