Page 9

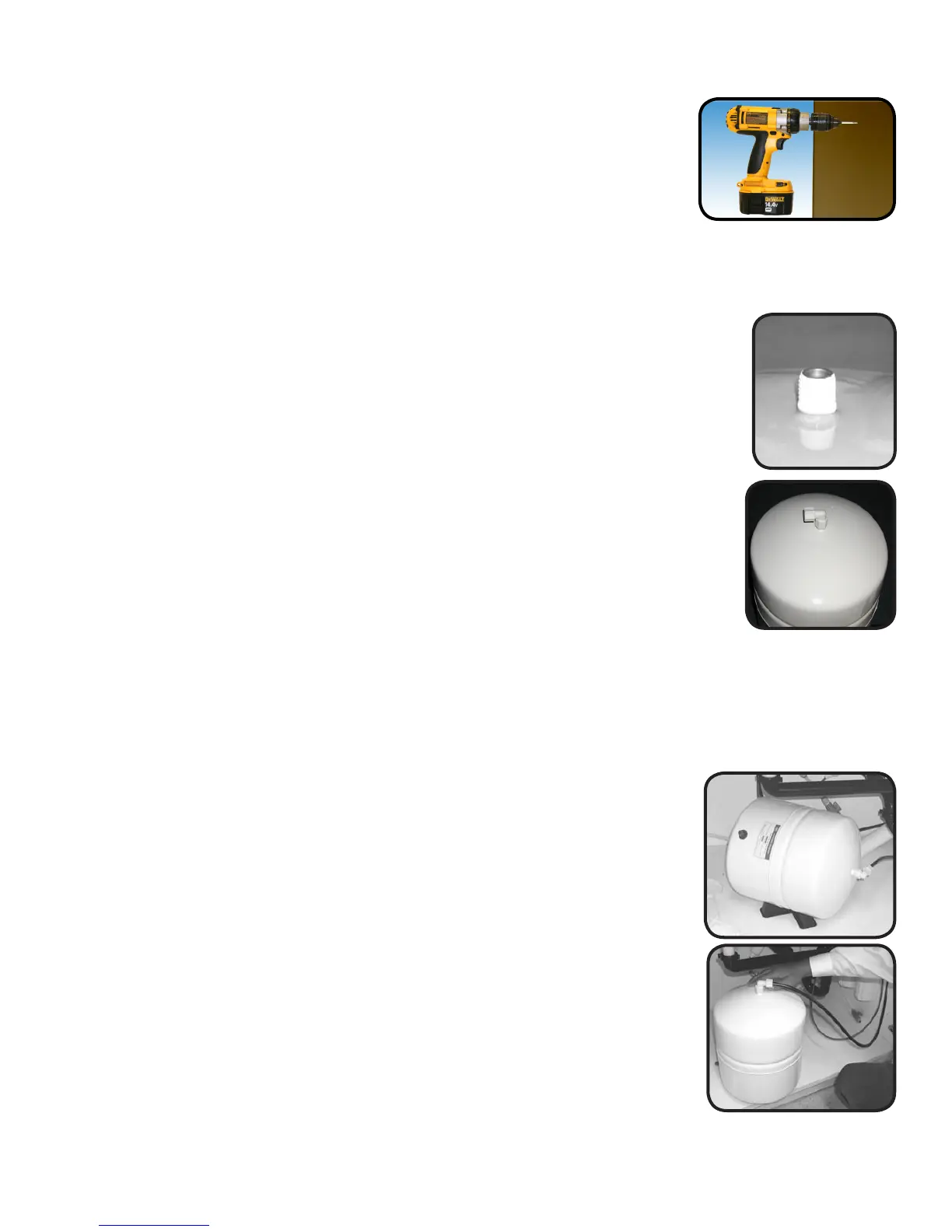

Thread the plastic elbow (supplied in the parts bag) onto the stainless
steel connection on the top of tank. Tighten using an adjustable wrench.
Do not over tighten as plastic could crack.
Step 18
Step 19
Wrap (7 to 12 turns) of teon tape clockwise around the male pipe
threads (MPT) on the Stainless Steel tting on top of the tank.
Tank Elbow Installation
Do not let the tape cover the opening.
Note:
Connect Blue Tube from “TANK” Port on RO Module to the Tank
Position tank in desired location. Stand it upright or lay it on its
side (using the black plastic stand). Measure the blue tube from
the RO module port marked “TANK” over to the tank and cut it
to desired length.
Insert the blue 3/8” tube into the compression side of the elbow
previously installed on top of the storage tank and push in as far as
it will go. Tighten the compression nut securely with a wrench.
Step 20
Step 21
Reverse Osmosis Module Mounting
Step 17 Determine best location for the RO module to be mounted to allow
for future system maintenance. The parts bag has 2 self tapping
screws. Using an electric drill with a Phillips bit, screw them into
the cabinet wall 6” apart and 16” from the bottom of the cabinet.
