PRESCO PAC1 - D.C. Lock Wiring; A.C. Lock Wiring

10

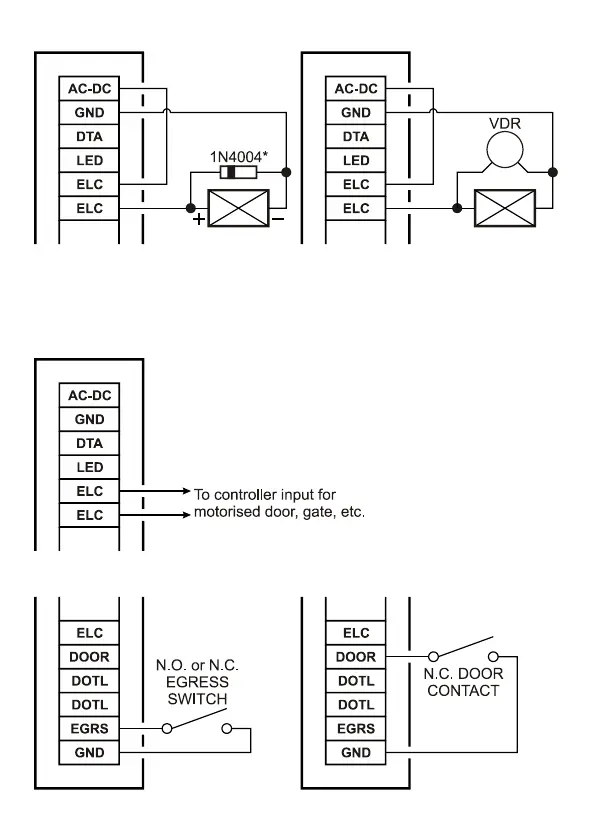

D.C. LOCK A.C. LOCK
* Use 1N4004 diode only when
using a Door Strike, not a
Magnetic Lock or Drop Bolt.
VOLTAGE FREE CONTACT OUTPUT
EGRESS SWITCH INPUT DOOR SWITCH INPUT
