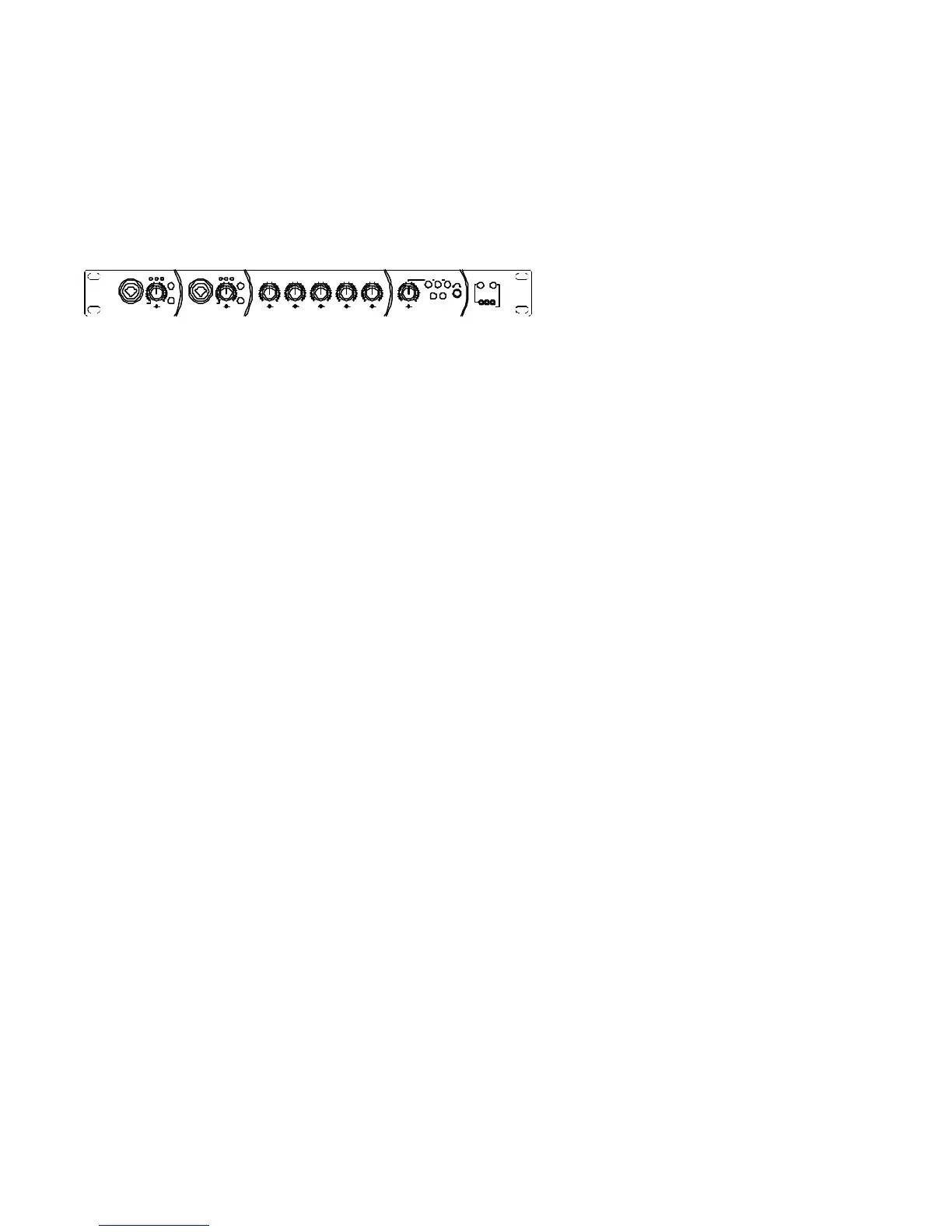

4.1 FRONT PANEL
-32 -16
48V
PAD
-3
MIXERSPDIF
32k 44.1k 48kPREAMP 1
MIC/INSTRUMENT
10
20
26
10 54
GAIN
TUBE
DRIVE
-32 -16
48V
PAD
-3
PREAMP 2
MIC/INSTRUMENT
10
20
26
10 54
GAIN
TUBE
DRIVE
-80 +10
0
ONE TWO
Mono
MIC/LINE IN 1/2
-80 +10
0
THREE FOUR
Mono
LINE IN 3/4
-80 +10
C
PAN LEVEL
Stereo
LINE IN 5/6
-80 +10
C
PAN LEVEL
Stereo
SPDIF/LINE IN 7/8
-80 +10
0
1/2 3/4
Stereo
mLAN RETURN
0 0
L R L R
dB dB dB dB dB
-80 +10
6
PHONES MAIN OUT
dB
0
0 12
ADAT
ADAT TO
mLAN
SPDIF TO
mLAN
EXT INT
CLOCK
BMCmLANADAT
MASTER CONTROLDIRECT PATCH LINE MIXER
(dBfs) (dBfs)
(CLICK)
TUBE
OFF
(CLICK)
TUBE
OFF
4418 4418
4.2 Preamps
The two preamps on the FIREstation are switchable. They can be
changed between solid-state and tube driven. The tube drive is
deactivated when the inner knob of the preamp is turned fully counter-
clockwise. This stage is indicated by a click when the knob is turned
fully counter-clockwise. The inner knob on each channel controls the
amount of signal routed to the 12AX7 vacuum tube. This feature lets
you control how much saturation of the signal occurs. Greater levels of
tube saturation give the signal greater warmth and a richer sound or
desirable distortion in extreme cases. This works equally well on mics
and instruments.
NOTE: Fully engaging the tube drive may increase the noise floor.
NOTE: It is recommended that the Control Room and Headphone
volumes be turned all the way down when the tube drive is initially
turned on.
4.3 Inputs
Each preamplifier has a Neutrik combo connector input. The input
accepts either XLR or 1/4” instrument inputs. The 1/4” or Hi-Z input is
designed for use with a guitar, bass, etc. This input is not a line level
input.
