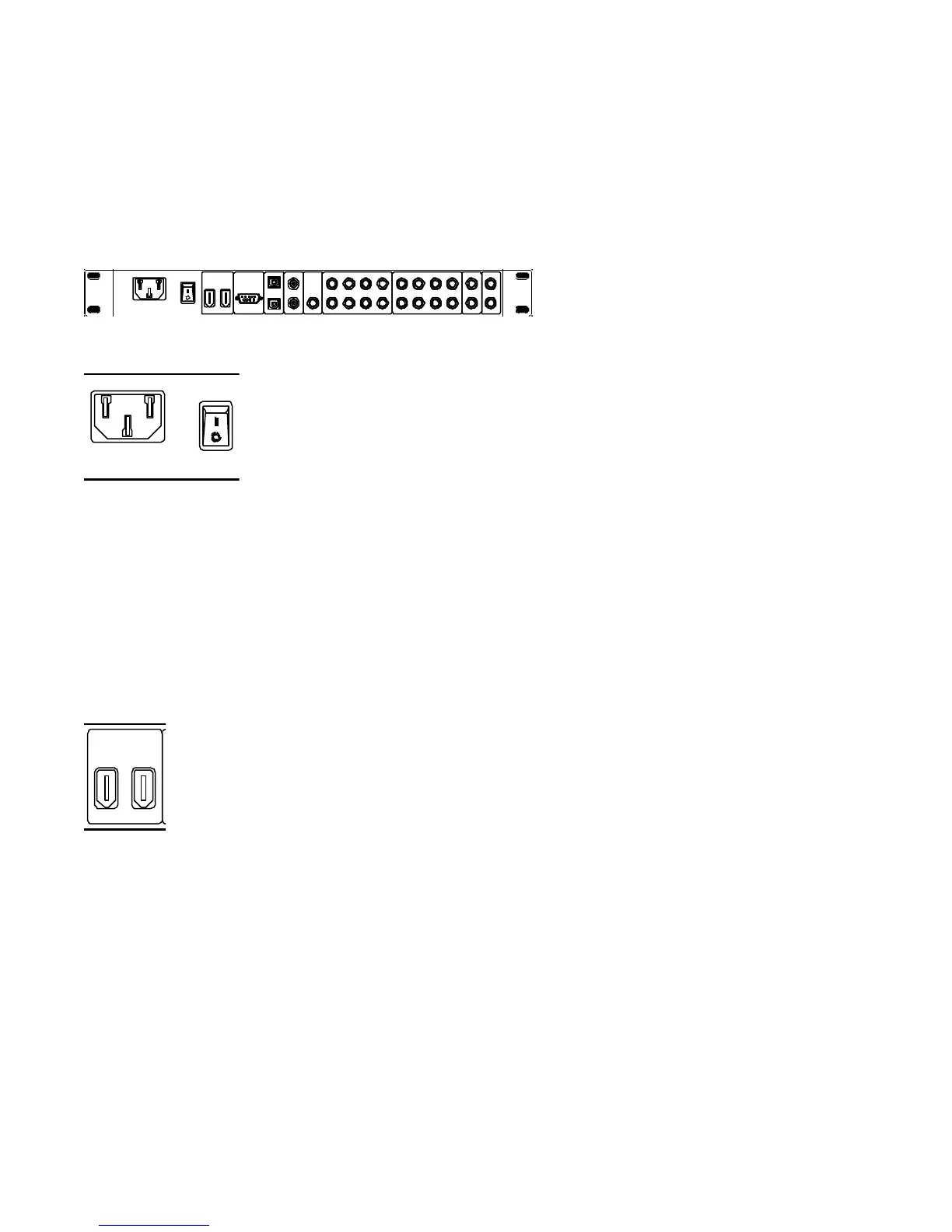

5.1 BACK PANEL
Created,
Designed and
Manufactured
In The USA
POWER
LINE OUTPUTS - TRS BALANCED
1 3 5 7
2 4 6 8
ADAT™
optical
IN
OUT
LINE INPUTS - TRS BALANCED
1 3 5 7
2 4 6 8
PREAMP
SEND - TRS
1
2
MAIN OUT
L
R
FOOTSWITCH
(Record Punch)
CLOCK
MIDI - S/PDIF
(S/PDIF input and output
on channels 7/8)
FIREWIRE PORTS
PreSonus
FIRESTATION
115/230 VAC ~
By internal Jumper
30Watts
5.2 IEC Power Connector
POWER PreSonus
FIRESTATION
115/230 VAC ~
By internal Jumper
30Watts
Please pay close attention before plugging in your FIREstation for the
first time. Make sure that the voltage printed on the unit matches that
provided by your country or region.
5.3 Power On/Off
The Power on/off switch controls power to the FIREstation. It is
strongly recommended that the unit be powered off between uses.
5.4 FireWire/IEEE 1394 I/O
FIREWIRE PORTS
