Prestige APS57TM - Page 22

APS57TM_RevA_07/20
22

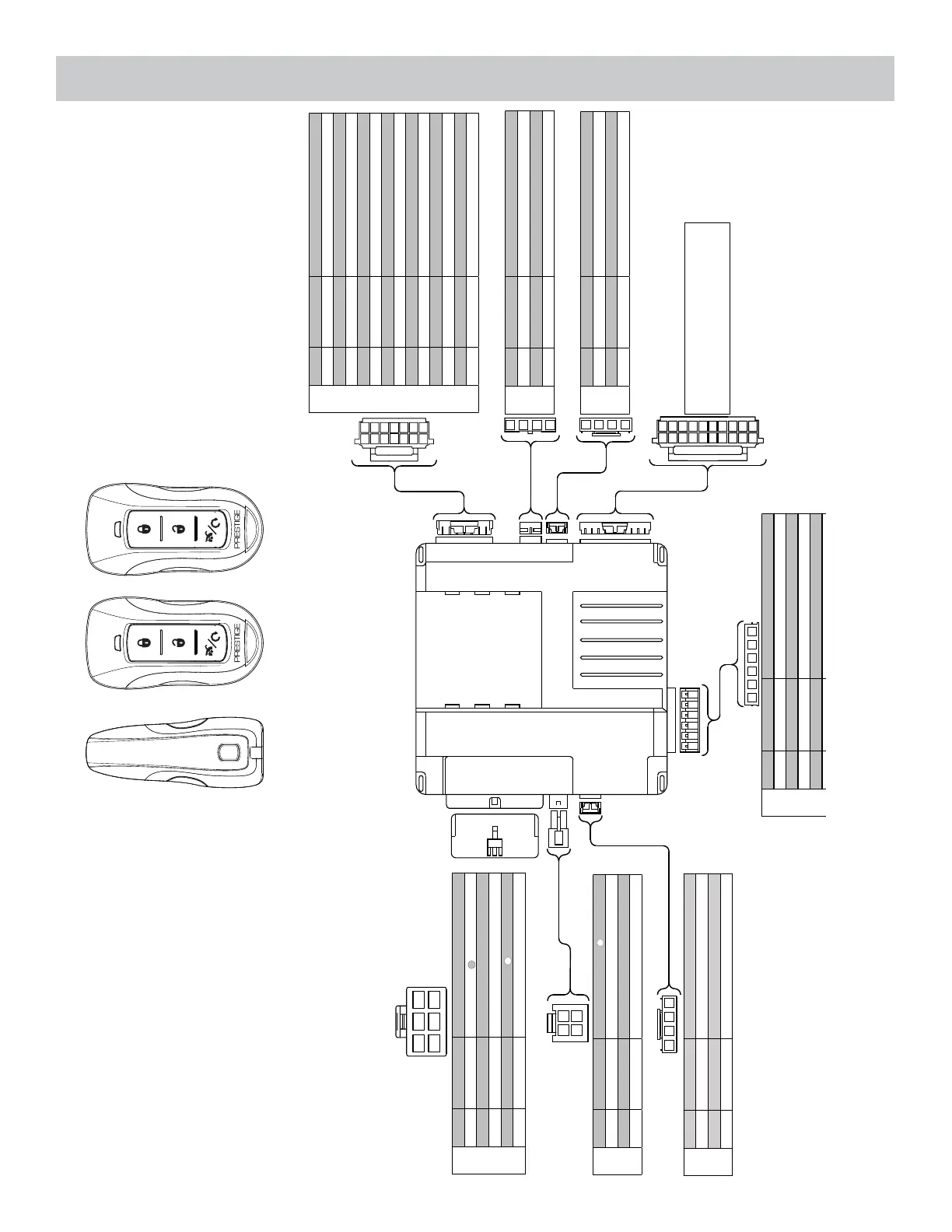

Quick Reference: Wiring Diagrams
1 2 3 4
VOXX
FLCART Dock
1 Yellow
Starter Output (+)
2 Green
IgniƟon 2 Output (+)
3 Red
BaƩery 12V Input (+)
4 Red/White
BaƩery 12V Input (+)
5 Purple
Accessory Output (+)
6 Blue
IgniƟon Input / Output (+)
6 Pin RS Harness
P
P
1 White
Parking Light (30) Output
2 White/Red
Parking Light (87) Input
3 Yellow/Black
Ignition Output For Alarm (+)
4 Black
Ground Input (-)
4 Pin Light
P
Replacement Part #4120463 Replacement Part #4120467
1 3 5
2 4 6
1 3 2 4
Replacement Part #4120465
Replacement Part #4120476
Accessory Sold Seperatly Accessory Sold Seperatly
1 2 3 4
19 17 15 13 11
9 7 5 3 1 2
4 6 8
10 12 14 16 18 20
1
2 3 4
1 2 3 5 7 9
11 13
4 6 8
10 12 14
4 Red
BaƩery 12V (+)
3 Blue
Data TX
2
Black Ground (-)
1
White Data RX
DBI
4 Red
BaƩery 12V (+)
3 Blue
Data TX
2
Black Ground (-)
1
White Data RX
CarLink
This Harness is included with the FLCART.



1 2 3 4 5 6
1 Pink
Baery 5V (+)
2 Green
Data RX
3 Black
Ground (-)
4 Red
Valet Switch
5 Blue
LED (-)
6 Empty
Empty
Antenna
4 Red
Battery 12V (+)
3 Black
Ground (-)
2
White Data RX
1
Blue Data TX
Weblink
Accessory Sold Seperatly
Replacement Part #4361009
14
Green/Orange Tach Input
13 Black/Yellow
Pulse During Crank Output (-)
12 Green/Yellow
Glow Plug Input (+)
11 Black/Red
Pulse AŌer Shutdown Output (-)
10 Dk. Blue
Trunk Output (-)
9 Black/Blue
Factory Disarm Output (-)
8 Brown/Black
Brake Input (+)
7 Black/Lt. Green
Factory Arm Output (-)
6 Dk. Blue/Black
External AcƟvaƟon Input (-)
5 Lt. Blue
Remote Start Status Output (-)
4 Green
Unlock Output (-)
3 Gray/Black
Hood Input (-)
2 Red
Lock Output (-)
1 Black/White
Horn Output (-)
14 Pin Main Input/Output
183BP 183BP4180070
