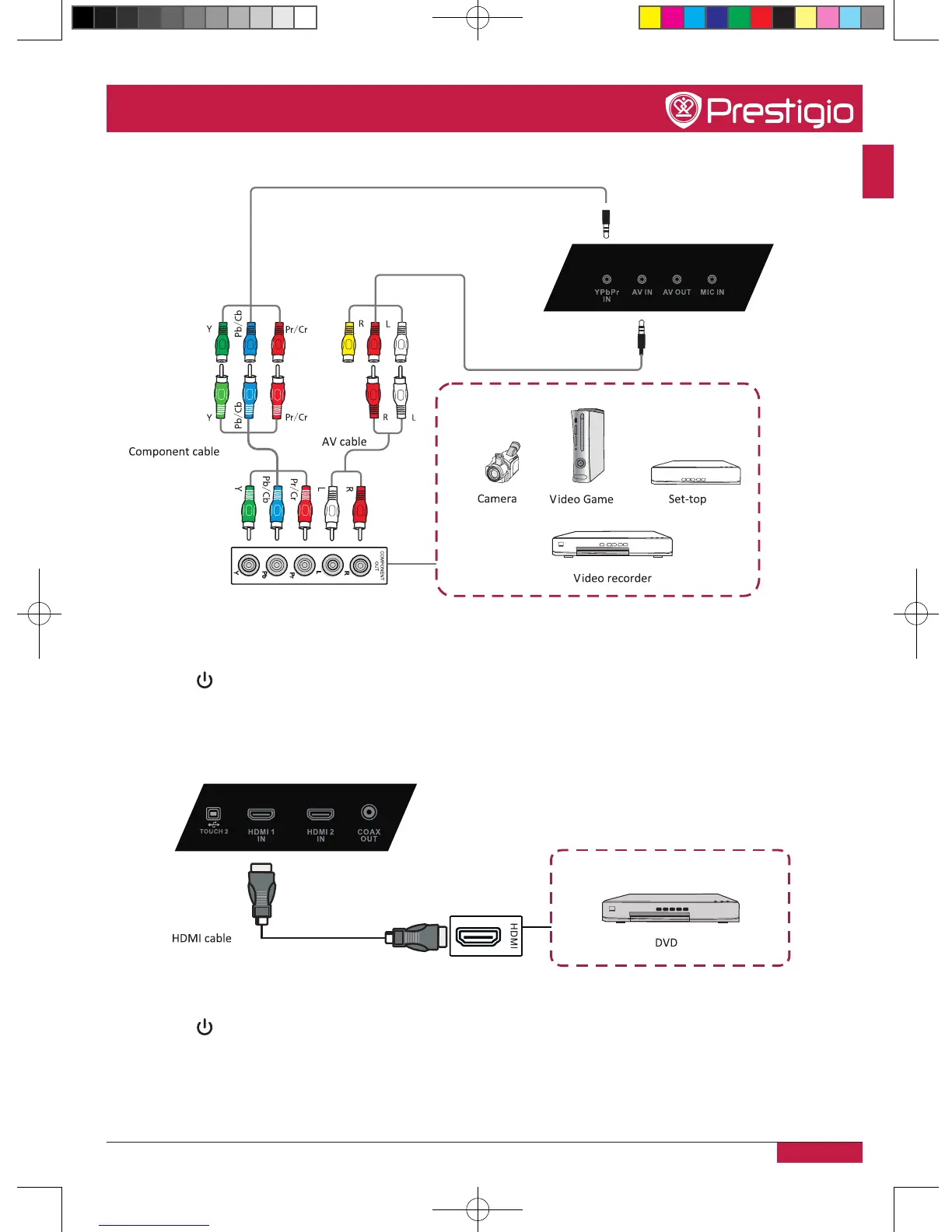

•YPbPr
1� Use a YPbPr cable to connect the device by YPbPr jack�
2� Plug the POWER cord and switch it on from the rear panel�
3� Press to turn the power on�
4� Press INPUT switch to YPbPr source�
•HDMI1/HDMI2
1� Use a HDMI cable to connect the device by HDMI jack�
2� Plug the POWER cord and switch it on from the rear panel�
3� Press to turn the power on�
4� Press INPUT switch to HDMI source�
PMB554H847,707,657_QSG_ EN_no TV.indd 19 2013/10/15 14:29:05
