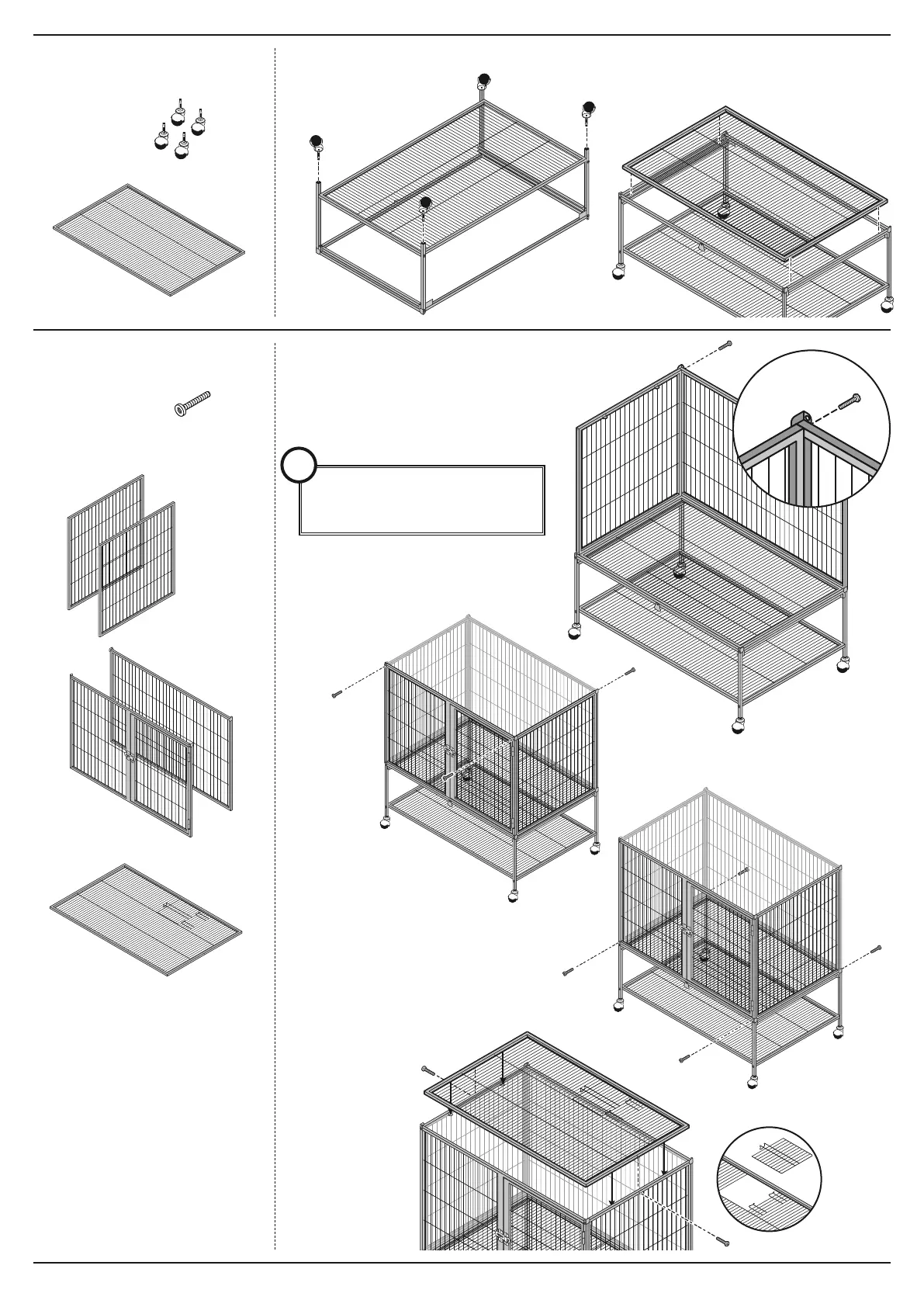

Stand the side panel (L2) and the lower
back panel (B2) (with brackets at the
top corners) in position and attach
together with a hex screw in the top
bracket bottom hole.
Continue adding and attaching panels
[side panel (R2), front panel (F2)],
with hex screws in the top bracket
bottom holes.
Finish by adding screws around the base,
in the bottom bracket upper holes.
interchangeable
Throughout this step, screws can
be left slightly loose, to make it easier
to assemble the second level.
⁕
]L
2
]R
2
]F
2
]Cm
]Cg
]B
2
× 10
Turn the assembled unit
upside down. Fully insert
a
caster in each leg.
Turn it right-side up and set
t
he floor grille (CG) in place.
Place the midlevel floor (CM)
(with the removeable divider
door) in place and secure
it with a hex screw
on each side.
