Replace the right motor and
retest the system.

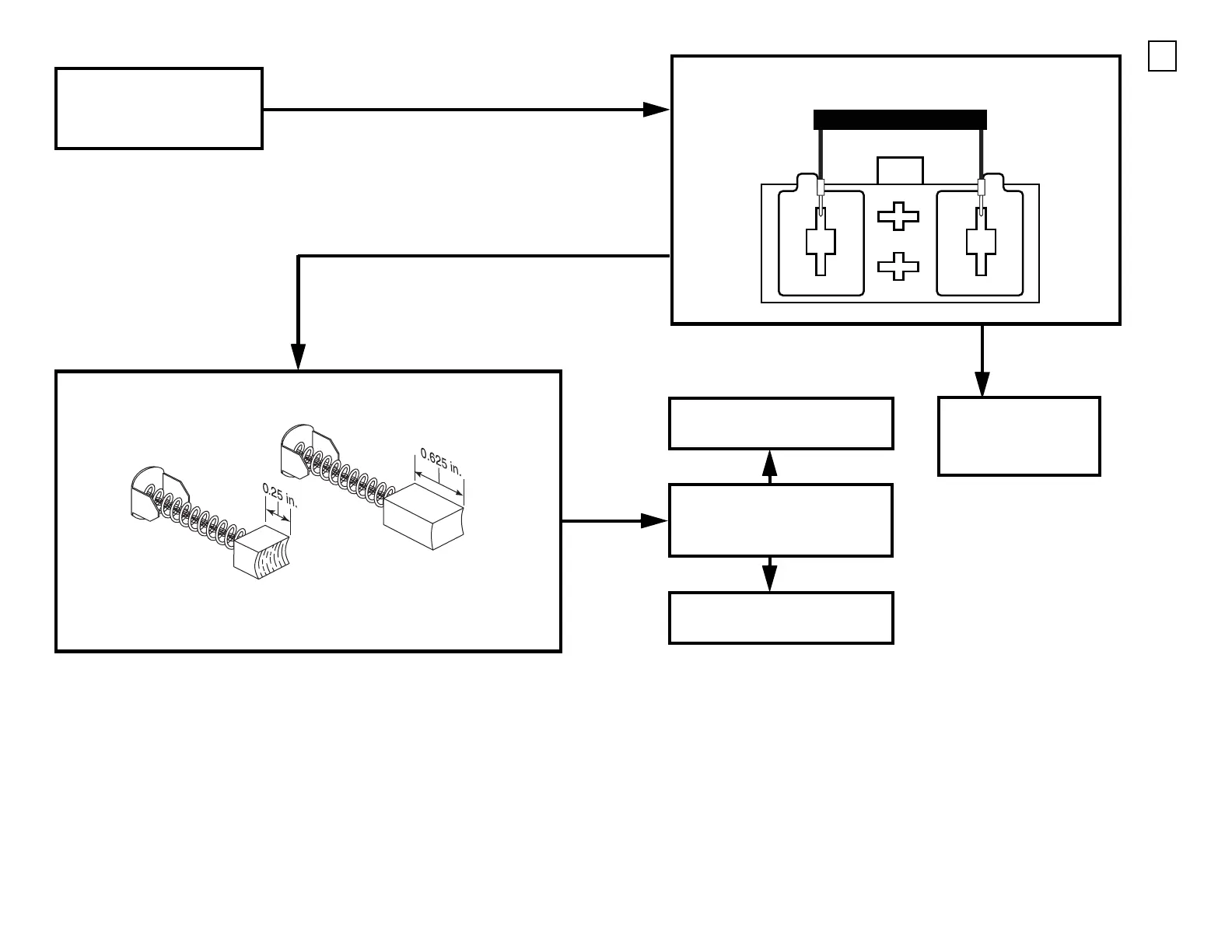

Disconnect the right
motor harness from the
power module.
RIGHT MOTOR HARNESS CONNECTOR
12
3
4
Measure Resistance
ABOUT
0.5 - 1.5 OHMS
Replace the power
module and retest
the system.
NOT ABOUT 0.5 - 1.5 OHMS
REPLACE
GOOD
RIGHT MOTOR BRUSHES
REMOVE AND INSPECT
Are the motor brushes
physically damaged or
worn below 0.25 inches?
YES
Replace the motor brushes
and retest the system.
NO
