Pride Q6 Edge - Motor;Brake Error

NOT ABOUT
80 OHMS
Motor/Brake Error
Symptoms:
 The batteries are fully charged.
 All electrical components are connected correctly.
 The power turns on, but the LCD screen displays “Motor/Brake Error” (NE or NE+ joysticks) or a brake error (Q-Logic joystick). See table 1, 2, or 3.
Diagnosis:
There is a problem with one or both brakes and/or the wiring between the motor, brakes, and the power module.
Solution:

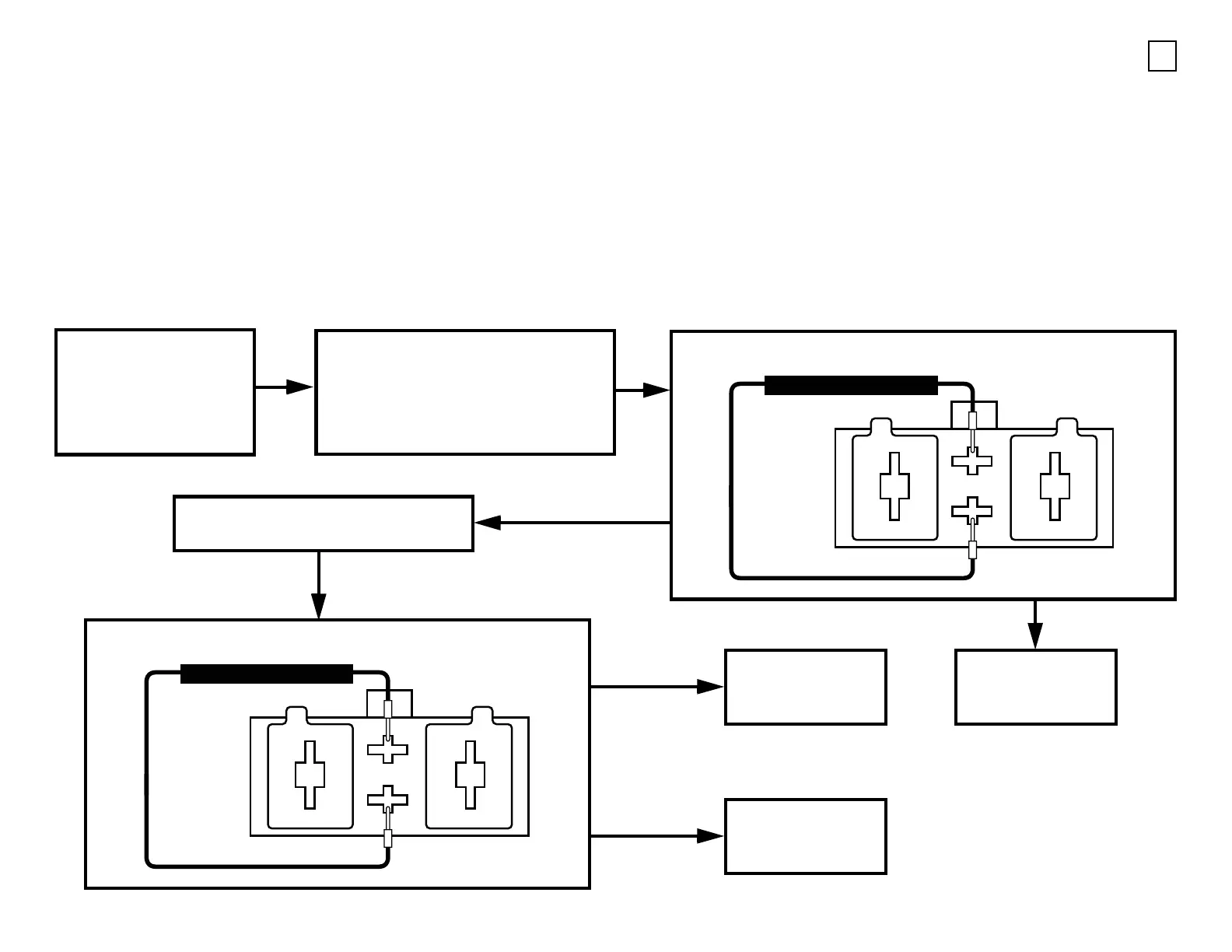

Use the following procedure to find the source of the error:
Ensure both freewheel
levers are in drive mode.
Refer to the freewheel
operation label on the
rear shroud.
Remove the rear shroud, then discon-
nect the power module from the rear
main frame. (See Appendix 2.)
Unplug the left motor harness connec-
tor from the power module.
12
3
4
Measure Resistance
LEFT MOTOR HARNESS CONNECTOR
Replace the left
motor and retest the
system.
Disconnect the right motor harness
connector from the power module.
ABOUT 80 OHMS
12
3
4
Measure Resistance
RIGHT MOTOR HARNESS CONNECTOR
Replace the right
motor and retest the
system.
NOT ABOUT
80 OHMS
ABOUT
80 OHMS
Replace the power
module and retest
the system.
