Pride Q6 Edge - Open Motor Error

LEFT MOTOR HARNESS CONNECTOR
12
3
4
Measure Resistance
Open Motor Error
Symptoms:
 The batteries are fully charged.
 All electrical components are connected correctly.
 The power turns on, but the LCD screen displays “Open Motor” (NE or NE+ joysticks) or a motor error (Q-Logic joystick). See table 1, 2, or 3.
 One or both motors will not operate.
Diagnosis:
There is a problem with the left motor, right motor, and/or the wiring between the motor(s) and the power module.
Solution:

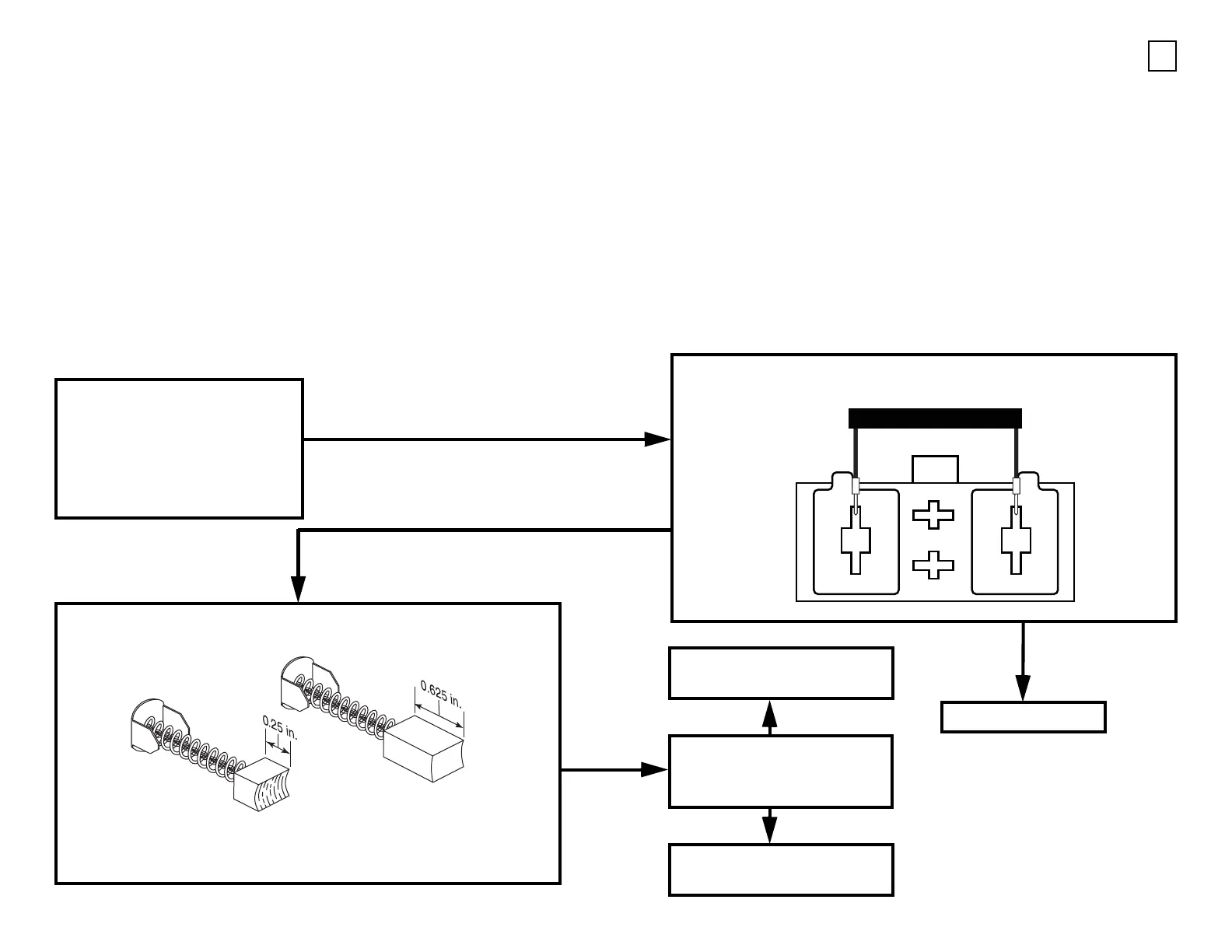

Use the following procedure to find the source of the error:
Remove the rear shroud. Dis-
connect the power module
from the rear main frame (see
Appendix 2), then disconnect
the left motor harness from the
power module.
REPLACE
GOOD
LEFT MOTOR BRUSHES
REMOVE AND INSPECT
NOT ABOUT 0.5 - 1.5 OHMS
ABOUT
0.5 - 1.5 OHMS
Go to the next page.
Are the motor brushes
physically damaged or
worn below 0.25 inches?
Replace the left motor and
retest the system.
NO
YES
Replace the motor brushes
and retest the system.
14
