Pride Q6 Edge - Power Module, Communications, or Software Error

Power Module, Communications, or Software Error
Symptoms:
 The batteries are fully charged.
 All electrical components are connected correctly.
 An error code is displayed when the joystick is powered on.
Diagnosis:
There is a module fault in the system.
NOTE: If a module is intentionally removed from the system, this fault may appear.
Solution:

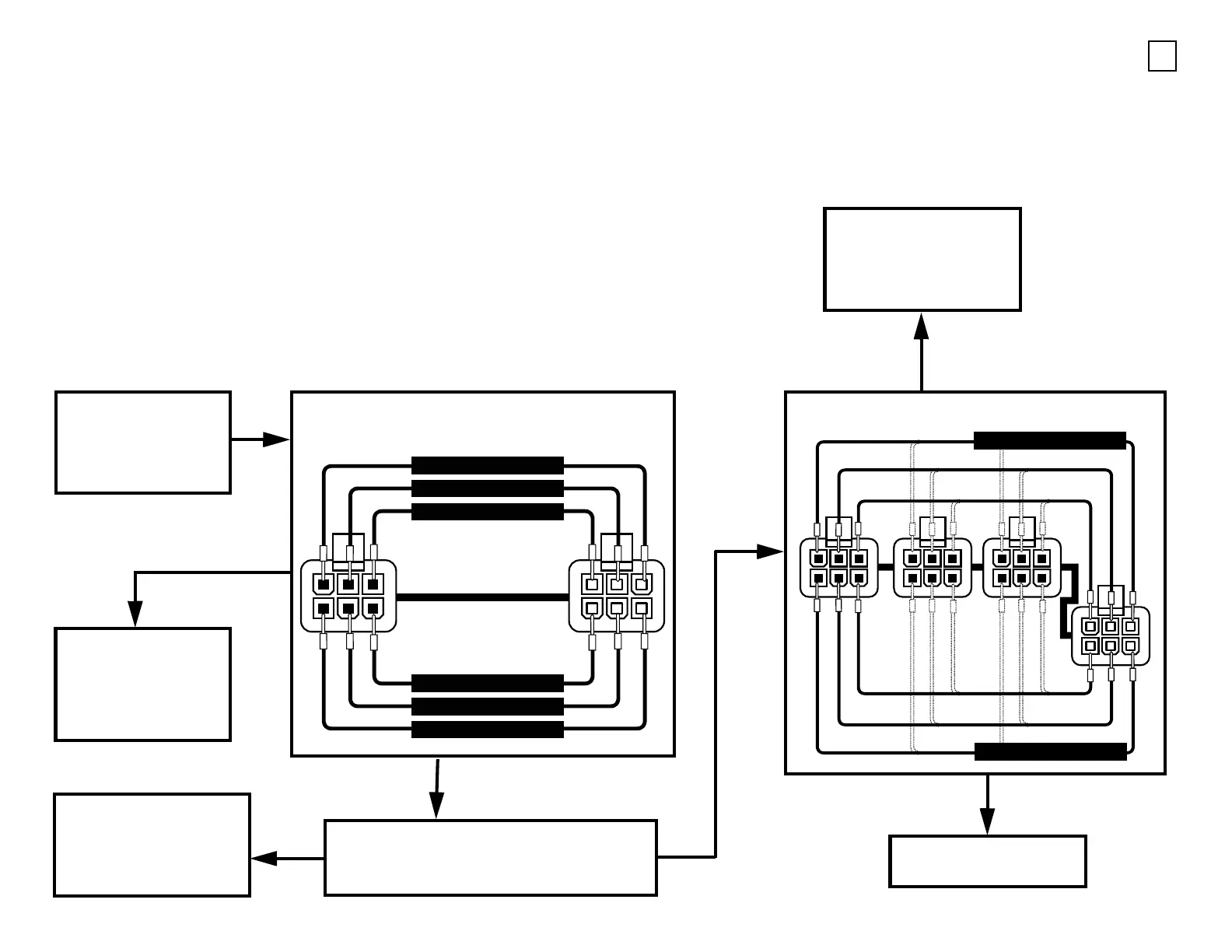

Use the following procedure to find the source of the error:
19
OPEN ON ANY
MEASUREMENT
LESS THAN 1 OHM FOR
ALL MEASUREMENTS
NO
YES
LESS THAN 1 OHM FOR
ALL MEASUREMENTS
OPEN ON ANY
MEASUREMENT
Ensure that the BUS
cables and comm-
unication devices are
connected correctly.
123
456
1 2 3
4 5 6
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
BUS CABLE OR
BUS CABLE EXTENSION CONNECTORS
Replace the BUS
cable extension or
BUS cable and retest
the system.
Contact Quantum Tech-
nical Service for further
troubleshooting assis-
tance.
If the power chair is equipped with
multiple input devices, is there a multiplier
on the BUS line?
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4 5 6
Measure Resistance
Measure Resistance
MULTIPLIER BUS CABLE
Contact Quantum
Technical Service for
further troubleshooting
assistance.
Replace the multiplier
and retest the system.
