Pride Q6 Edge - Joystick Error

OPEN ON ANY
MEASUREMENT
Joystick Error
Symptoms:
 The batteries are fully charged.
 All electrical components are connected correctly.
 An error code is displayed when the joystick is powered on.
 The joystick is in the neutral (centered) position when the unit is powered on.
Diagnosis:
There is an input communications error.
NOTE: If a module is removed from the system, this fault may appear.
Solution:

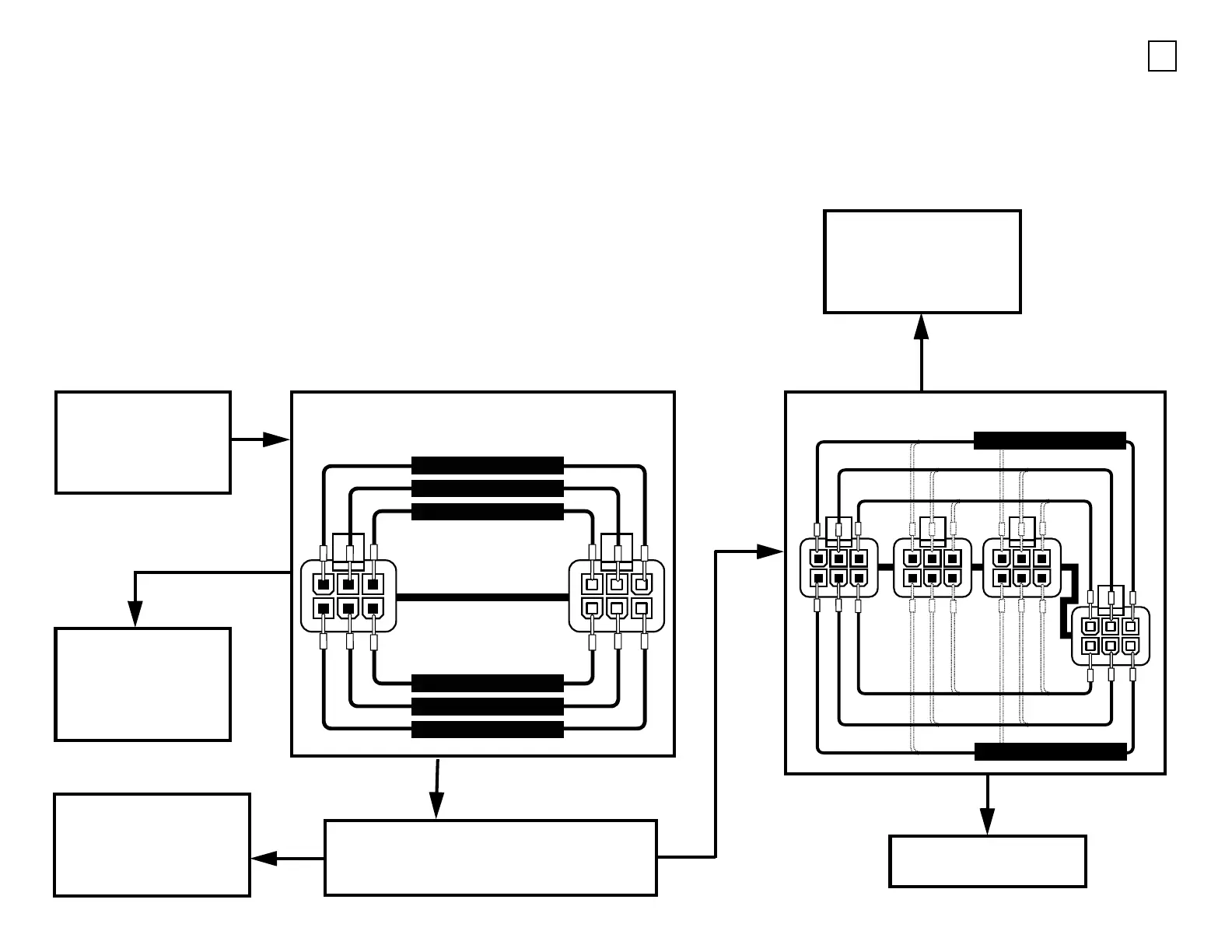

Use the following procedure to find the source of the error:
Ensure that the BUS
cables and comm-
unication devices are
connected correctly.
123
456
1 2 3
4 5 6
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
Measure Resistance
BUS CABLE OR
BUS CABLE EXTENSION CONNECTORS
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4 5 6
Measure Resistance
Measure Resistance
MULTIPLIER BUS CABLE
Replace the BUS
cable extension or
BUS cable and retest
the system.
LESS THAN 1 OHM FOR
ALL MEASUREMENTS
If the power chair is equipped with
multiple input devices, is there a multiplier
on the BUS line?
Contact Quantum Tech-
nical Service for further
troubleshooting assis-
tance.
NO
YES
LESS THAN 1 OHM FOR
ALL MEASUREMENTS
Contact Quantum
Technical Service for
further troubleshooting
assistance.
OPEN ON ANY
MEASUREMENT
Replace the multiplier
and retest the system.
18
